Adjusting ring - DIN 705 | SM 1291-20
from €0.61*
€0.61*
Available in 5 days
Delivery time: 1-3 days working days
with grub screw
Material:
ST: steel, zinc plated
STB: steel, blackened
NI: stainless steel

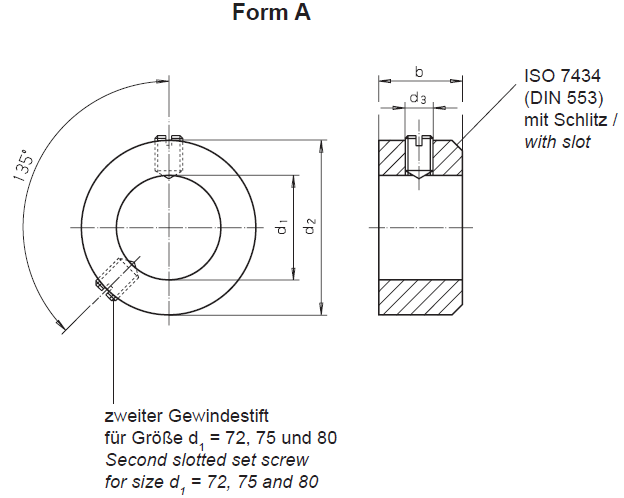

Form A: with slotted set screws ISO 7434 (DIN 553)

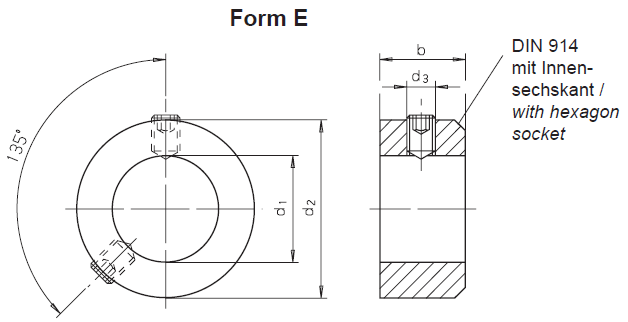

Form E: with hexagon socket set screws DIN 914
Set collars SM 1291-20 are used in a variety of ways as locking elements on shafts
and axles to hold moving parts in a specific position.
Area of application: mainly in drive technology in mechanical and plant engineering.
RoHS-compliant: yes
| Compliance: | RoHS compliant |
|---|---|
| DIN / ISO: | DIN 705, DIN 914 / ISO 4027, ISO 7434 (DIN 553) |
| Element type: | Adjusting rings, Rings |
| Material: | Stainless steel, Steel |
| Surface: | Steel - burnished, Steel - zinc plated |
