Ball washer / conical socket | SM 1130-1

from €12.00*

€12.00*

Prices incl. VAT plus shipping costs

Delivery time: See variant in the table
This product is available in 12 versions.
Show all variants
Diameter 1
Material
Product number: 255592

Description
Filter

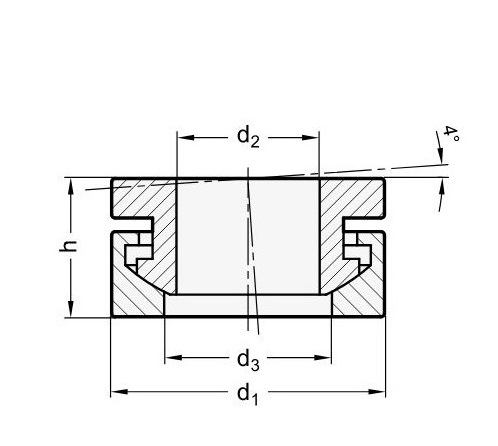

Product information "Ball washer / conical socket | SM 1130-1 "

spherical washers / dished washers DIN 6319 combined,
undetachable

Material:
ST: Steel, case-hardened
EHT 0.2 to 0.4 mm
Hardness (550+100) HV 10
NI: Stainless steel 1.4305

The ball washers / tapered cup combination can compensate for inclined contact surfaces.
They enable installation with non-parallel contact surfaces up to an angle of inclination of approx. 4°.
The SM 1130-1 ball washer / conical socket combination is the "captive" connection of ball washers / conical sockets DIN 6319.

RoHS-compliant: yes
