Cabinet "U" handle - HYGIENIC DESIGN | SM 1269-5

from €33.49*

€32.90*

Prices incl. VAT plus shipping costs

Available in 5 days

Available in 5 days

This product is available in 18 versions.
Diameter 1
Length
Surface
Product number: 108643

Description Datasheet
Filter

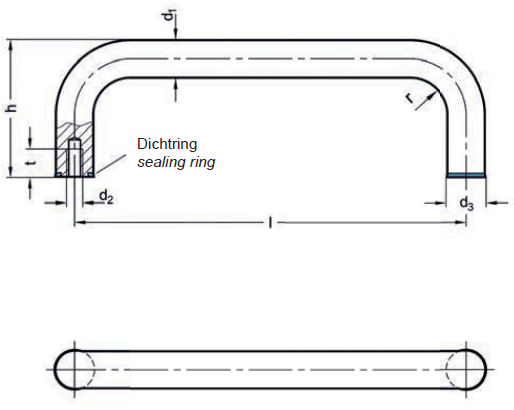

Product information "Cabinet "U" handle - HYGIENIC DESIGN | SM 1269-5 "

made of stainless steel
installation from the back

Material:
handle: stainless steel 1.4404 A4) / AISI 316 L
sealing ring: hydrogenated acrylonitrile butadiene rubber (H-NBR)
temperature resistant -25 °C to +150 °C
Hardness 85±5 Shore A, FDA compliant, blue

PL: polished finish (Ra < 0,8 μm)
MT: matte finish (Ra < 0,8 μm)

These Cabinet "U" handles from stainless steel are designed for use in hygienic areas.
The sealed mounting surfaces enable mounting without dead spaces.
The high quality finish prevents adherence of dirt and facilitate cleaning.

RoHS-compliant: yes

Compliance: RoHS compliant
For use in sensitive areas: Hygienic Design
Material: Stainless steel
Speciality: Mounting - back side, With sealing ring
Surface: matte, polished
Type of use: Grips, U-handles
