Clamping lever | SM 1087-6

SCHOLZ MECHANIK GmbH

Colour	Diameter 2	Form	Length 1	Length 2	Product number	Unit price	Buy

Product information "Clamping lever | SM 1087-6"

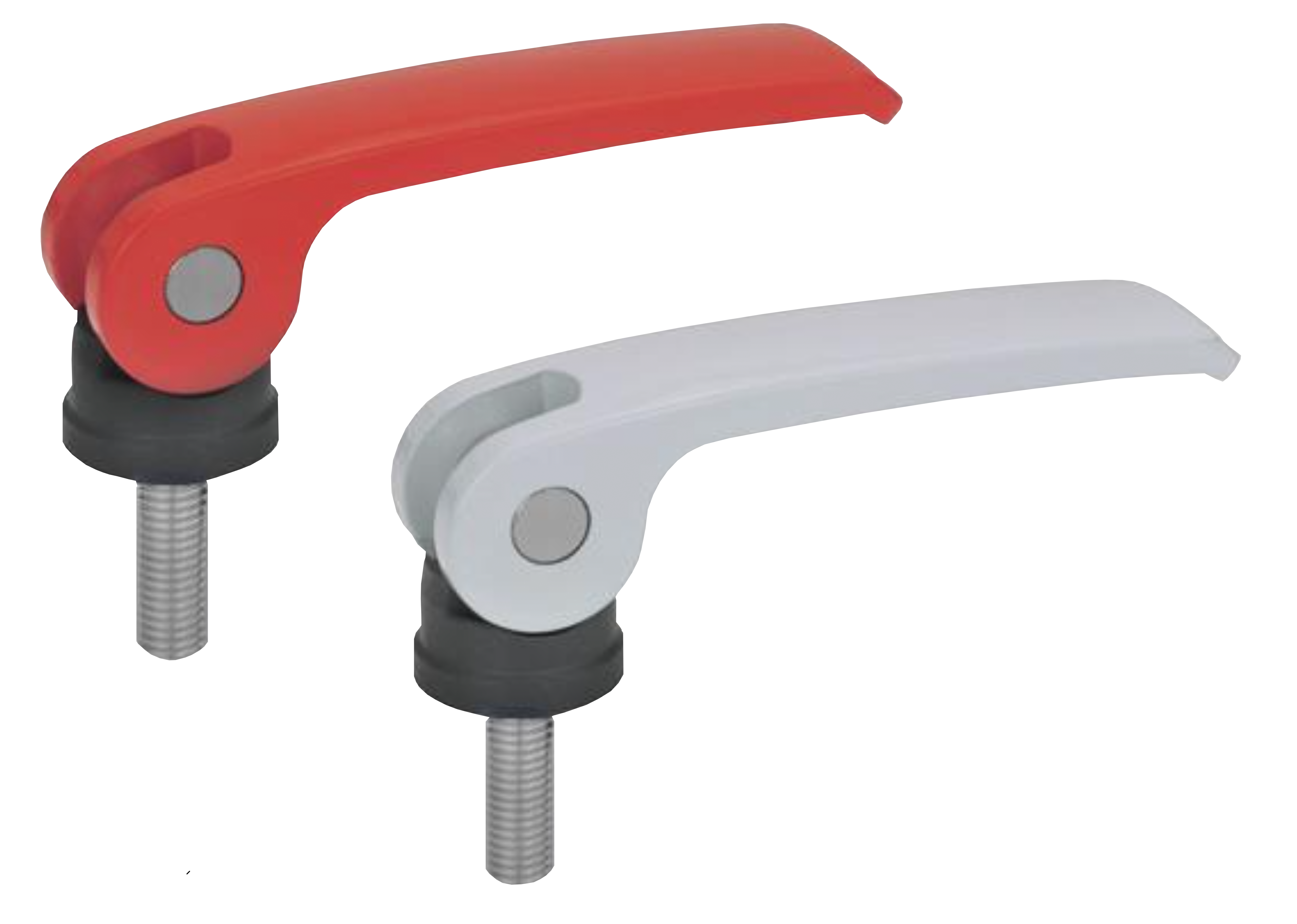

with eccentrical cam and threaded stud
Inner parts stainless steel

Material:
steel parts: stainless steel 1.4305

contact plates: Technopolymer, glass fibre reinforced
lever: zinc die casting
powder coated (abrasion proof epoxy resin)
OR = orange
RS = red
SB = silver
SW = black
Form A: contact plate: POM (Polyactetal)
Form B: contact plate: PA (Polyamid PA)

contact plate: Technopolymer, glass fibre reinforced
lever: stainless steel 1.4308
Form C: contact plate: POM (Polyactetal)
Form D: contact plate: PA (Polyamid PA)

contact plate: stainless steel 1.4057, hardened
lever: stainless steel 1.4308

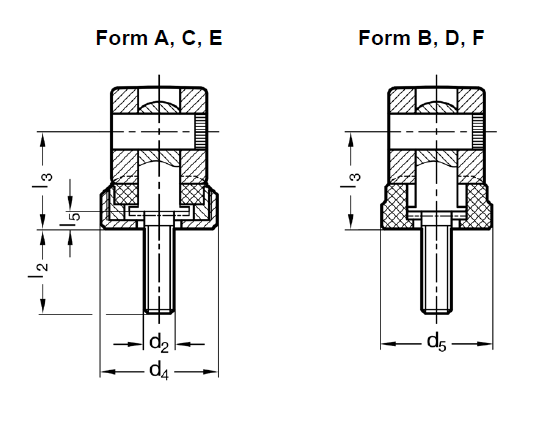

Form E: contact plate: stainless steel
Form F: contact plate: stainless steel

Article information:

Form A: adjustable contact plate with adjusting nut
Form B: fix contct plate without adjusting nut
Form C: adjustable contact plate with adjusting nut
Form D: fix contct plate without adjusting nut
Form E: adjustable contact plate with adjusting nut
Form F: fix contct plate without adjusting nut

For quick clamping and releasing, torque-free via a thread. Clamping movement of the lever beyond the max. clamping force is not possible. No loose individual parts, all elements are connected to each other in the correct position.
The eccentric clamps with adjustable support disc form A+C+E offer adjustment of the distance between the lifting eccentric and the clamping surface via a fine thread, thus enabling simple adjustment of the clamping position with the maximum clamping force.

RoHS-compliant: yes

Colour:	black, orange, red, silver
Element type:	Clamping Levers with Eccentrical Cam
Material:	Bushing/Screw: Stainless Steel, Lever: Zinc die casting, Stainless steel
Surface:	Steel - bright, plastic coated
Type:	Levers and tensioners
