Collar screw - sim. to DIN 173 | SM 1003-1

SCHOLZ MECHANIK GmbH

from €3.62*

€3.62*

Prices incl. VAT plus shipping costs

Delivery time: 1-3 days working days

Delivery time: See variant in the table

This product is available in 4 versions.

Show all variants

Diameter

M05

M06

M08

M10

Product number: 3277

Description Datasheet CAD data

Diameter	Product number	Unit price	Buy

Product information "Collar screw - sim. to DIN 173 | SM 1003-1 "

similar to DIN 173 Sheet 1

Material: Steel
Surface: zinc plated

RoHS-compliant: yes

Note:
for renewable bushes SM 1002-1

in the table:

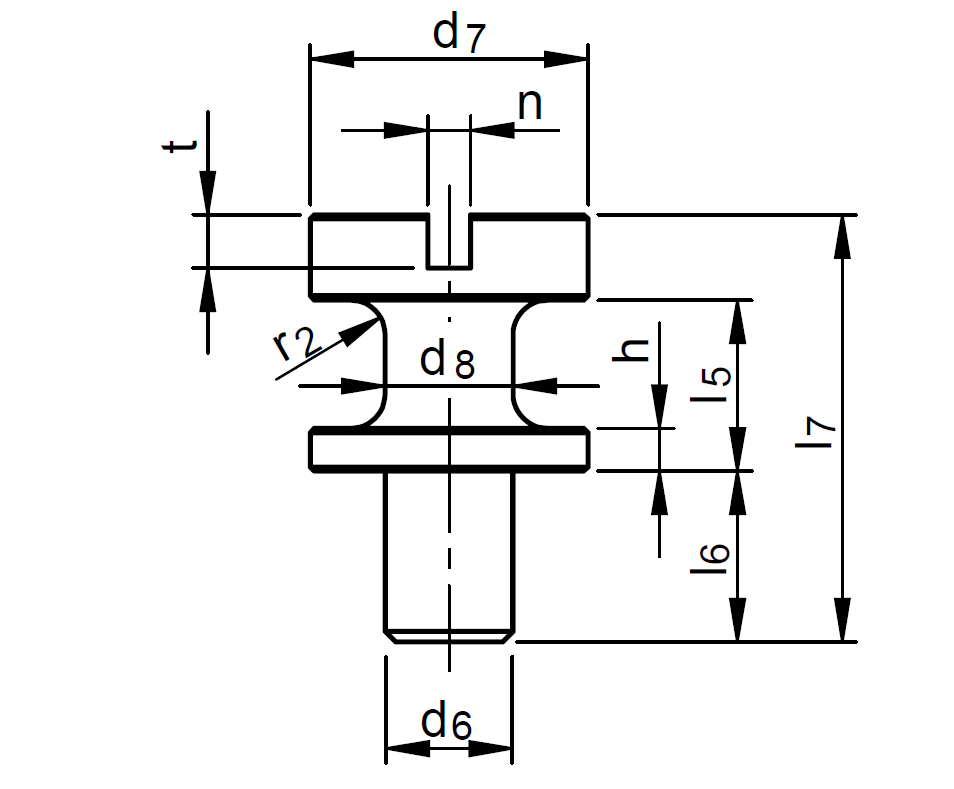

d6 = diameter

DIN / ISO:	DIN 173 and similar
Material:	Steel
Speciality:	With collar
Type:	Screws

CAD data

Accessoires

CAD Data

Renewable drill bushing - DIN 173 A | SM 1002-1

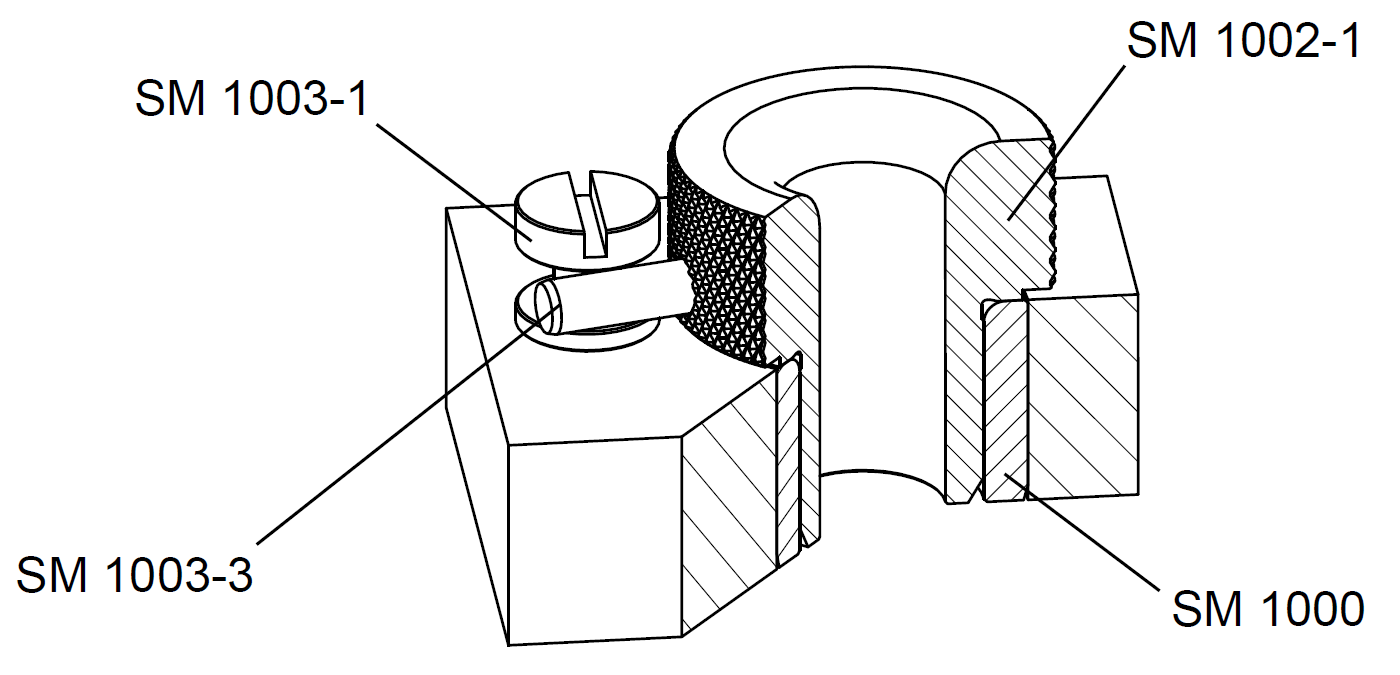

Quick-change bushingDIN 173 A Sheet 1Material: special steelhardened and groundhardness: HRc 63±1Basic bushings for this: Drill bushings SM 1000, 1000-1, 1000-2 and 1001.collar screws: SM 1003-1dowel pins: SM 1003-3 / SM 1022RoHS-compliant: yesPlug-in drill bushings according to DIN 173 A are precisely manufactured guide elementsthat are mainly used for drilling holes with the aid of drilling devices, as they enable quick changes between different drill diameters. Quick-change bushings serve to guide the drill precisely, enable exact, repeatable drilling and stabilise the drill when it enters the workpiece. The bushings are usually inserted into fixtures or components via SM 1000 / SM 1001 base bushings (DIN 179/172) and secured against rotation with an inserted SM 1003-3 cylindrical pin, which strikes against an SM 1003-1 collar screw. The main use of SM 1002-1 insert drill bushings is for pre-drilling parts for further reaming or thread cutting operations.

Variants from €19.22* incl. VAT

€64.01* incl. VAT

Details
