Cross clamp connector | SM 1702
from €23.00*
€24.00*
Available in 5 days
Delivery time: See variant in the table
This product is available in 28 versions.
Product information "Cross clamp connector | SM 1702"

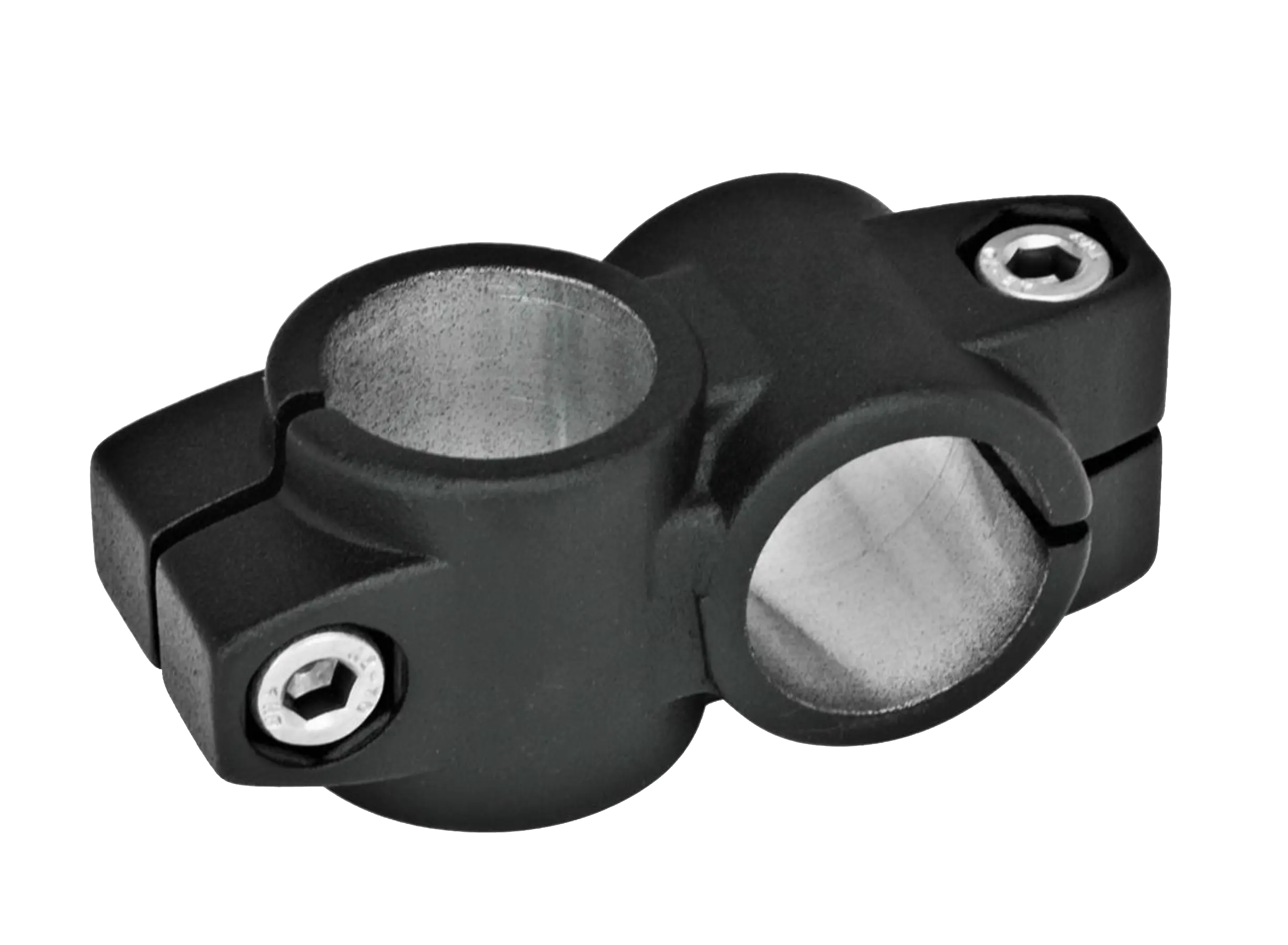

Two-Way connector clamp
for construction tubes SM 1780
Material:
AL: Aluminum
BL = plain finish, matte shot-blasted
powder coated, textured finish
SW = black, RAL 9005
Hexagon nuts DIN 985: stainless steel A2 / AISI 304
self-locking with polyamide ring
Socket cap screws DIN 912 / ISO 4762: stainless steel A2 / AISI 304
Form A: without seal
The clamping holes of the SM 1702 cross clamp connectors are machined
AL: Aluminum
BL = plain finish, matte shot-blasted
powder coated, textured finish
SW = black, RAL 9005
Hexagon nuts DIN 985: stainless steel A2 / AISI 304
self-locking with polyamide ring
Socket cap screws DIN 912 / ISO 4762: stainless steel A2 / AISI 304
Form A: without seal
The clamping holes of the SM 1702 cross clamp connectors are machined
and designed for SM 1780 construction tubes or DIN 2391, DIN 2395 and DIN 2462.

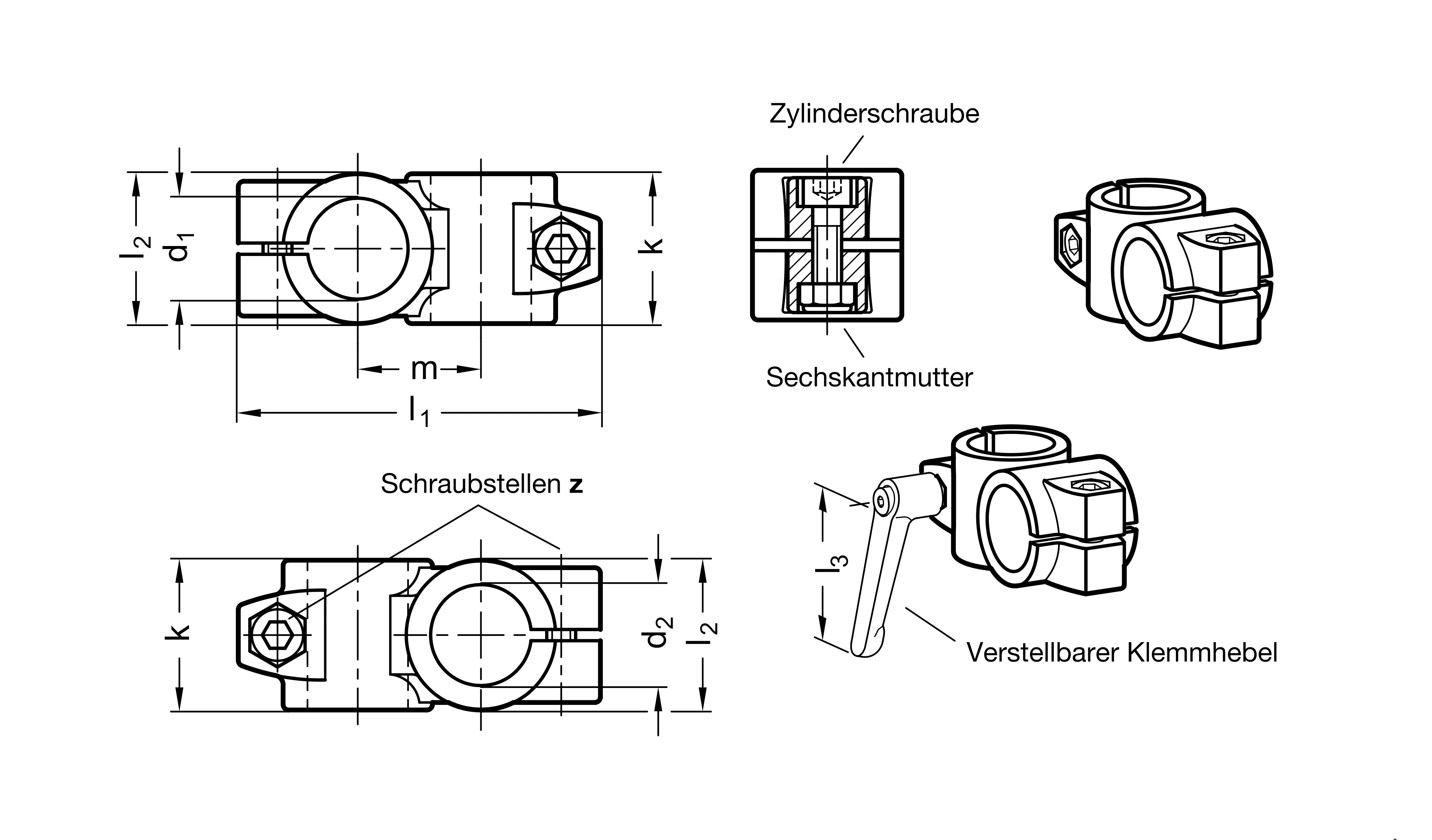

At the screw points z, the cheese head screws reduce the bore cross-section for clamping.
If clamping is to be carried out without tools, the cheese head screws can be replaced by an
adjustable clamping lever SM 1720 (for aluminium cross clamp connectors) specified in the table as an accessory.
RoHS compliant: yes
At the screw points z, the cheese head screws reduce the bore cross-section for clamping.
If clamping is to be carried out without tools, the cheese head screws can be replaced by an
adjustable clamping lever SM 1720 (for aluminium cross clamp connectors) specified in the table as an accessory.
RoHS compliant: yes
| Compliance: | RoHS compliant |
|---|---|
| Material: | Aluminium |
| Surface: | blank, matt gestrahlt, kunststoffbeschichtet schwarz |
| Type of use: | Clamp connector |
