Cross clamp connector | SM 1703
from €68.65*
€71.00*
Available in 5 days
Delivery time: See variant in the table
This product is available in 6 versions.
Product information "Cross clamp connector | SM 1703"

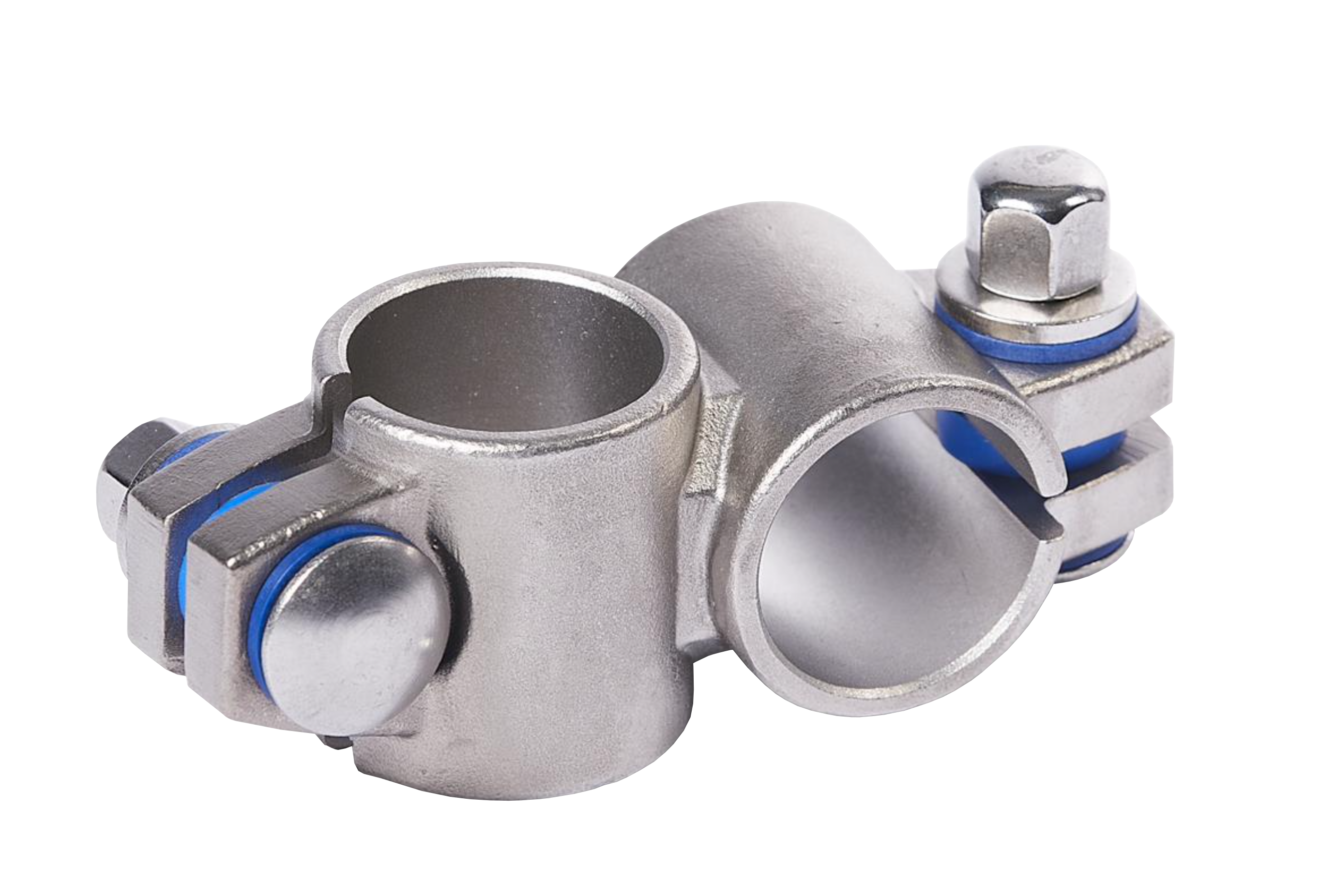

Two-Way connector clamp
for construction tubes SM 1780
Material:
NI: Stainless steel 1.4308 / AISI CF-8
matte shot-blasted
carriage bolts DIN 603: stainless steel
two cap nuts DIN 917: stainless steel
washer: A2 stainless steel
seals: cealing washers, plastic (polyacetal POM)
spacer ring: Silicone, 40 ... 60 Shore
two cap nuts DIN 917: stainless steel
washer: A2 stainless steel
seals: cealing washers, plastic (polyacetal POM)
spacer ring: Silicone, 40 ... 60 Shore

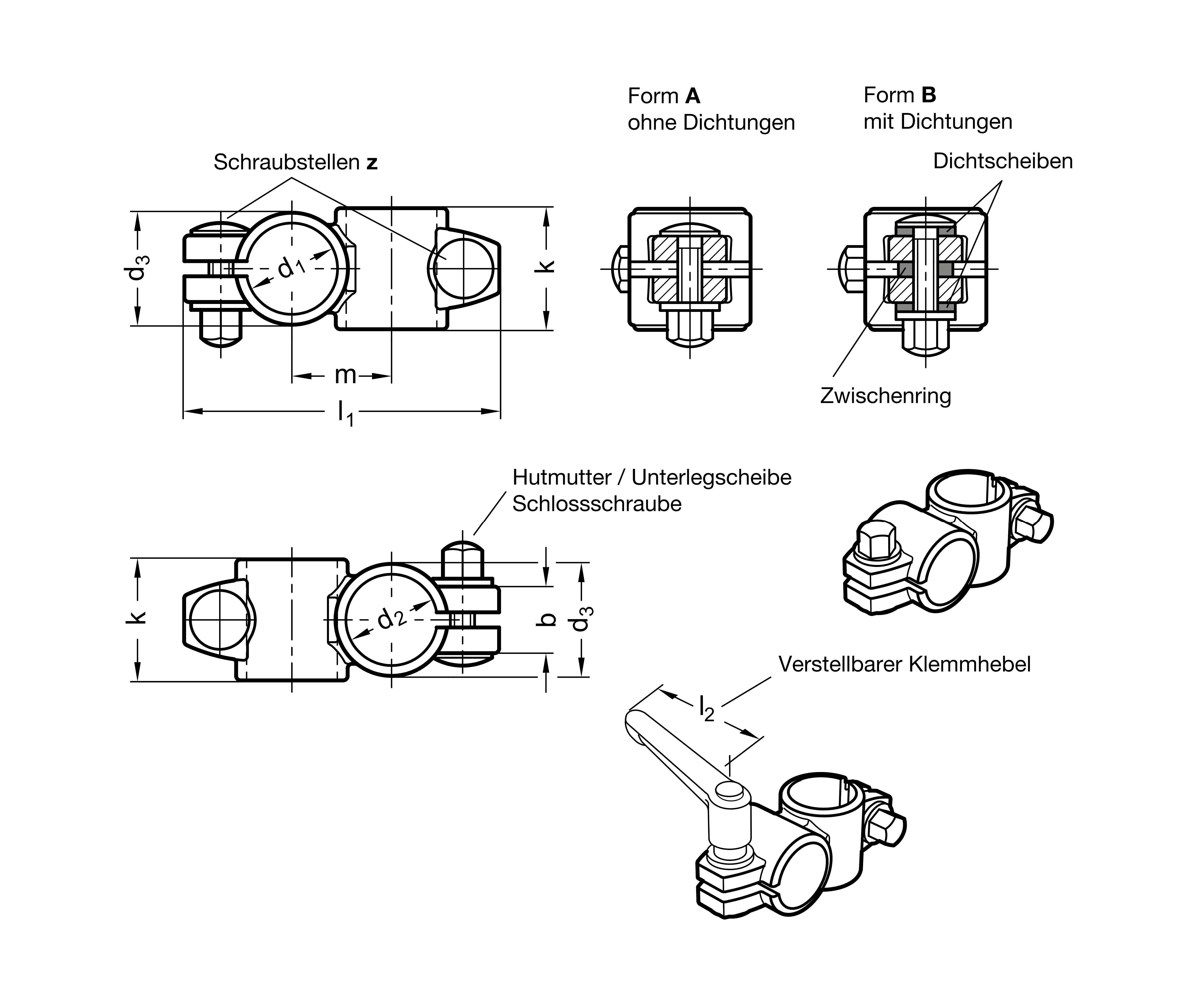

Form A: without seals
Form B: with seals
The clamping bores of the stainless steel cross clamp connectors SM 1703 are machined
and designed for construction pipes SM 1780 or DIN 2391, DIN 2395 and DIN 2462.
At the screw points z, the carriage bolts and cap nuts reduce the bore cross-section for clamping.
Form B has seals at the screw points.
If clamping is to be carried out without tools, the cap nuts can be replaced by the adjustable clamping levers SM 1721
(for stainless steel cross clamp connectors) listed in the table as accessories.
RoHS compliant: yes
| Compliance: | RoHS compliant |
|---|---|
| Material: | Stainless steel |
| Speciality: | with silicone seal |
| Surface: | matt,gestrahlt/matt,blasted |
| Type of use: | Clamp connector |
Similar Items
Flange clamp connector | SM 1704
€18.43*
incl. VAT
Colour / Surface:
Blank/matt
|
Diameter 1:
12
|
Material:
Aluminium
with 2 mounting holesfor construction tubes SM 1780Material:NI: Stainless steel 1.4308 / AISI CF-8matte shot-blastedAL: AluminumBL = plain finish, matte shot-blastedpowder coated, textured finishSW = black, RAL 9005Hexagon nut DIN 985: stainless steel A2 / AISI 304self-locking with polyamide ringSocket cap screw DIN 912 / ISO 4762: stainless steel A2 / AISI 304The clamping bore of the SM 1704 flange clamp connectors is machinedand designed for SM 1780 or DIN 2391, DIN 2395 and DIN 2462 construction pipes. These connectors are also suitable for mounting on profile systems. The cheese head screw reduces the bore cross-section for clamping at the screw points z. If clamping is to be carried out without tools, the cheese head screw can be replaced by an adjustable SM 1720 / SM 1721 clamping lever specified in the table as an accessory.RoHS compliant: yes
Variants from €17.65*
incl. VAT
Cross clamp connector | SM 1701
€20.29*
incl. VAT
Colour / Surface:
Blank/matt
|
Diameter 1:
14
|
Material:
Aluminium
Two-Way connector clampfor construction tubes SM 1780Material: NI: Stainless steel 1.4308 / AISI CF-8matte shot-blastedAL: Aluminum
BL = plain finish, matte shot-blastedpowder coated, textured finishSW = black, RAL 9005Hexagon nuts DIN 985: stainless steel A2 / AISI 304self-locking with polyamide ringSocket cap screws DIN 912 / ISO 4762: stainless steel A2 / AISI 304The clamping holes of the SM 1701 cross clamp connectors are machinedand designed for SM 1780 or DIN 2391, DIN 2395 and DIN 2462 construction tubes. At the screw points z, the cheese head screws reduce the bore cross-section for clamping. If clamping is to be carried out without tools, the cheese head screws can be replaced by an adjustable clamping lever SM 1720 (for aluminium cross clamp connectors) or SM 1721 (for stainless steel connectors) specified in the table as an accessory.RoHS compliant: yes
Cross clamp connector | SM 1702
€39.88*
incl. VAT
Clamping length k:
56
|
Colour / Surface:
Schwarz/black
|
Diameter 1:
35
|
Form:
A
Two-Way connector clampfor construction tubes SM 1780Material: AL: AluminumBL = plain finish, matte shot-blastedpowder coated, textured finishSW = black, RAL 9005Hexagon nuts DIN 985: stainless steel A2 / AISI 304self-locking with polyamide ringSocket cap screws DIN 912 / ISO 4762: stainless steel A2 / AISI 304Form A: without sealThe clamping holes of the SM 1702 cross clamp connectors are machinedand designed for SM 1780 construction tubes or DIN 2391, DIN 2395 and DIN 2462. At the screw points z, the cheese head screws reduce the bore cross-section for clamping. If clamping is to be carried out without tools, the cheese head screws can be replaced by an adjustable clamping lever SM 1720 (for aluminium cross clamp connectors) specified in the table as an accessory.RoHS compliant: yes
Variants from €23.00*
incl. VAT
T-Angle clamp connector | SM 1705
€40.04*
incl. VAT
Clamping length k1:
56
|
Colour / Surface:
Blank/matt
|
Diameter 1:
40
|
Form:
A
for construction tubes SM 1780Material:AL: AluminumBL = plain finish, matte shot-blastedpowder coated, textured finishSW = black, RAL 9005Hexagon nuts DIN 985: stainless steel A2 / AISI 304self-locking with polyamide ringSocket cap screws DIN 912 / ISO 4762: stainless steel A2 / AISI 304The clamping holes of the SM 1705 angle clamp connectors are machined and designed for SM 1780 construction tubes or DIN 2391, DIN 2395 and DIN 2462. At the screw points z1 / z2, the cheese head screws reduce the bore cross-section for clamping. If clamping is to be carried out without tools, the cheese head screws can be replaced by the adjustable clamping levers SM 1720 (for aluminium angle clamp connectors) listed in the table as accessories.RoHS compliant: yes
Variants from €23.41*
incl. VAT
T-Angle connector clamp | 1706
€79.60*
incl. VAT
Clamping length k1:
37
|
Diameter 1:
30
|
Form:
A
|
Material:
Edelstahl/stainless_steel
for construction tubes SM 1780Material:NI: Stainless steel 1.4308 / AISI CF-8matte shot-blastedcarriage bolts DIN 603: A2 stainless steeltwo cap nuts DIN 917r: A2 stainless steelwasher: A2 stainless steelseals: Plastic sealing washers (polyacetal POM), bluespacer ring: Silicone, 40...60 Shore A, blueForm A: without sealsForm B: with sealsThe clamping holes of the SM 1705 angle clamp connectors are machined and designed for SM 1780 construction tubes or DIN 2391, DIN 2395 and DIN 2462. At the screw points z1 / z2, the carriage bolts reduce the bore cross-section for clamping. Form B has seals at the screw points. If clamping is to be carried out without tools, the cap nuts can be replaced by the adjustable clamping levers SM 1721 (for stainless steel angle clamp connectors) listed in the table as accessories.RoHS compliant: yes
Cross clamp holder | SM 1753-1
€14.47*
incl. VAT
Colour / Surface:
Schwarz_elo
|
Diameter 1:
16
|
Diameter 2:
12
Two-way mounting clampMaterial:AL: Aluminumclamp holderELSW = black anodizedMT = matte finish, tumbledSocket cap screws DIN 912: Stainless steel 1.4301 / AISI 304The SM 1753-1 cross clamp brackets have a horizontal and vertical clamping hole, both clamping holes are also equipped with a square. The standard version of the clamping screws are hexagon socket head cap screws DIN 912. They can be replaced by SM 1759-1 clamping lever sets (see dimensions table for order designation).RoHS compliant: yes
Variants from €9.46*
incl. VAT
Cross clamp holder, rotatable | SM 1753-4
€33.62*
incl. VAT
Colour / Surface:
Schwarz_elo
|
Diameter 1:
16
|
Diameter 2:
12
Twistable two-way mounting clampfrom AluminumMaterialAL: Aluminummounting clampELSW = black anodizedMT = matte finish, tumbledSocket cap screws DIN 912: stainless steel A2 / AISI 304Grub screw DIN 915: stainless steel 1.4301 / AISI 304The twistable cross clamp holders SM 1753-4 connect rods and tubes within the clamp holder system at any adjustable angle. When the angle adjustment is released, the clamp holder halves remain positively connected. The clamping screws of the clamping threads d3 / d4 are socket head cap screws with hexagon socket DIN 912 in the standard version. They can be replaced by a clamping lever set SM 1759-1 (see dimensions table for order designation).RoHS compliant: yes
Variants from €23.19*
incl. VAT
Accessories
Clamping lever | SM 1721-1
€25.14*
incl. VAT
Diameter 1:
M06
|
Form:
AS
|
Length 1:
063
|
Length 2:
20
adjustable with screwfor pipe clamp connectorMaterial:handle: stainless steel investment casting 1.4308matt blastedscrew insert: stainless steel 1.4305retaining screw: stainless steel 1.4305pressure spring: stainless steel 1.4310Form AS: with external hexagonAdjustable clamping levers SM 1721-1 and SM 1721-2 replacethe hexagon socket screws DIN 912 or the cap nuts DIN 917in stainless steel tube clamp connectors. In the dimension tables for the clamp connectors,you will find a recommendation for the right clamping lever for each screw position.
RoHS-compliant: yes
Variants from €19.19*
incl. VAT
