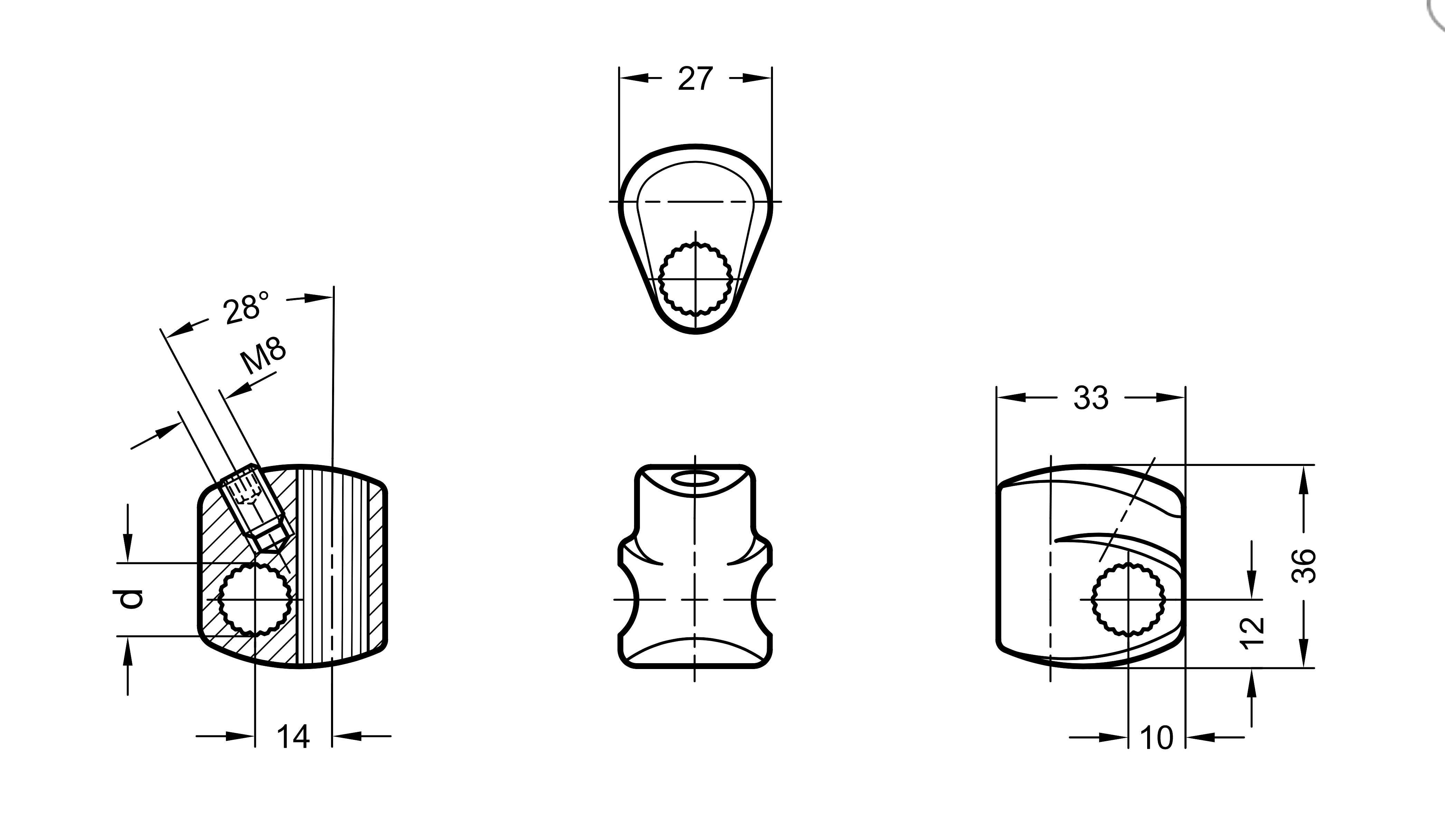

Cross piece | 1760-2
Product information "Cross piece | 1760-2 "
for universal clamp stands SM 1760
Material:
Plastic (polyamide PA)
glass fiber reinforced
black, matt
The SM 1760-1 mounting bracket can be quickly and securely attached to the SM 1760 universal clamp stand in the desired position.
Clamped with a clamping screw (hexagon socket), it holds both SM 1760-4 holder tubes (Ø13) in the desired position.
The tooth profile of the holder tube prevents unwanted twisting, regardless of the tightening torque of the clamping screw.
RoHS compliant: yes
Accessories
Universal clamp stand | SM 1760
€20.68*
incl. VAT
Colour:
Rot/red
|
Diameter:
13
|
Length 1:
200
|
Length 2:
316
Universal work holding and positioning fixturesfor sensors and reflectors Mounting bracket (see SM 1760-1): Plastic (polyamide PA) black, mattCross piece (see SM 1760-3): Plastic (polyamide PA) glass fiber reinforced black, mattRetaining tube (see SM 1760-4): Aluminum, blank; end caps plastic (polyamide PA) black, mattBase (see SM 1760-2): Plastic (polyamide PA) glass fiber reinforced blackmatt with coloured end caps (shiny finish):SW = black, RAL 9005RT = red, RAL 3000OR = orange, RAL 2004GR = grey, RAL 7035GB = yellow, RAL 1021BL = blue, RAL 5024With the SM 1760 universal clamp stand , the SM 1760-1 mounting bracket can be quickly and securely brought into the desired position and positioned there.The tiltable mounting tube holder in the base has eleven locking positions.The base, crosspiece and SM 1760-1 mounting bracket are each clamped to the mounting tubes in the desired position with just one clamping screw (hexagon socket).The tooth profile of the mounting tube prevents unwanted twisting, regardless of the tightening torque of the clamping screw.RoHS compliant: yes
