Drill bushing F7, stainless steel - sim. to DIN 172 | SM 1001N

from €7.18*

Quantity Unit price
To 4
€11.53*
To 9
€11.53*
To 49
€11.53*
To 99
€9.04*
From 100
€7.45*

Prices incl. VAT plus shipping costs

Delivery time: 1-3 days working days

Delivery time: 1-3 days working days

This product is available in 1801 versions.
Form
Inside Diameter
Length
Outside Diameter
To create an offer for this item, please add it to your shopping cart. From there you can create the quote with all the necessary details.
Product number: 74531

Description Datasheet CAD data
Filter
Product information "Drill bushing F7, stainless steel - sim. to DIN 172 | SM 1001N "

Positioning bush with collar
stainless steel
similar to DIN 172 / ISO 4247:1977

Material: Stainless steel 1.4112
hardened and ground
Hardness: HRc 56±1

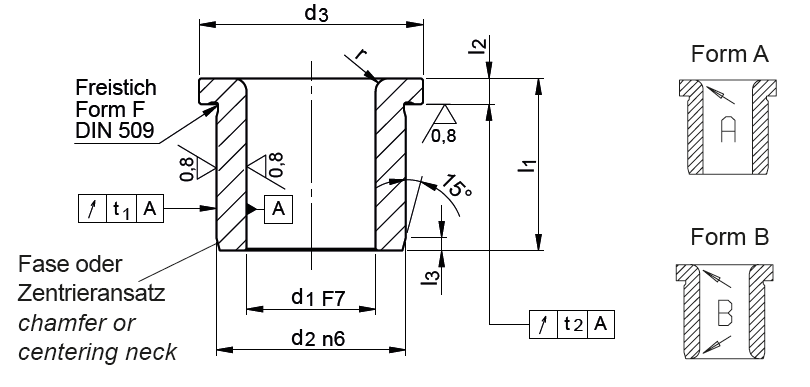

Form A: with one radius without grooves
Form B: with two radiuses without grooves

RoHS-compliant: yes

Locating hole in the workpiece to ISO tolerance H6 or H7.

Drill bushes from SCHOLZ MECHANIK are used in all manufacturing companies as a cost-effective and wear-resistant component. No longer just for precise drill guidance, but also in combination with new production processes - e.g. 3D printing - the drill bush can be used to quickly produce clamping fixtures, measuring gauges, clamping supports, etc.

Drill positioning bushes are important and useful elements for placement and grid plates for turning and milling centres. Their high hardness and tight tolerances ensure very high repeat accuracy and a long service life.

The prices apply to
1 to 4 items
5 to 9 items – not as stated from 250 items
10 to 49 items
50 to 99 items
from 100 items.

DIN / ISO: DIN 172 and similar, ISO 4247
Material: Stainless steel
Surface: grinded
Type: Drill bushings with collar
CAD data
