Eccentric clamping clamp | SM1087-7
from €12.11*
€12.11*
Available in 5 days
Delivery time: See variant in the table
This product is available in 6 versions.
Product information "Eccentric clamping clamp | SM1087-7"
Material:
Eccentric screw: steel
Body: brass
The SM 1087-7 eccentric clamp has a high clamping force and is suitable for
use with low clamping heights.
The brass base body ensures gentle and secure clamping.

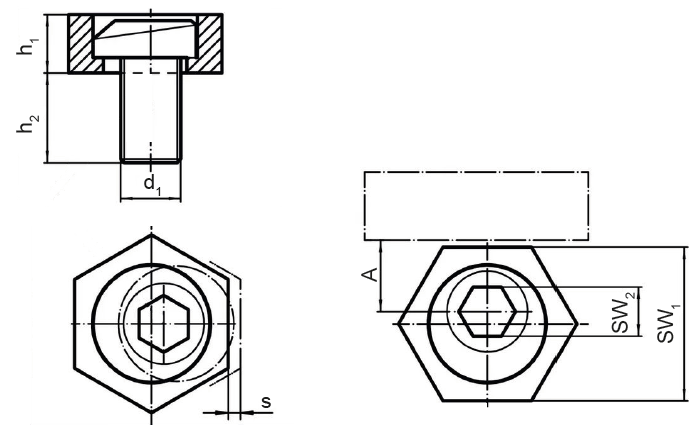

The head of the eccentric screw can protrude slightly
protrude slightly from the base body (h1).
RohS-compliant: yes
| Element type: | Clamping Levers with Eccentrical Cam |
|---|---|
| Material: | Brass, Steel |
| Type: | Mechanical clamping elements |
