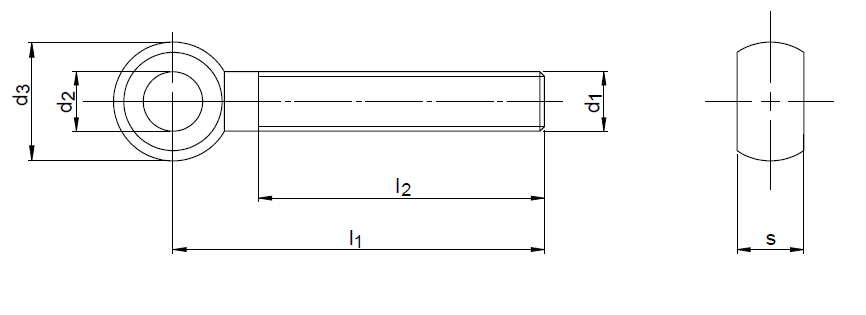

Product information "Eye bolt | SM 1238-1"

with long threaded bolt

Material:
ST: steel, grade 5.8
turned
blackend (M06 to M24)
NI: stainless steel 1.4305
turned
matt shot-blasted (M06 to M20)

This eye bolts are similar to DIN 444. They have a longer thread.

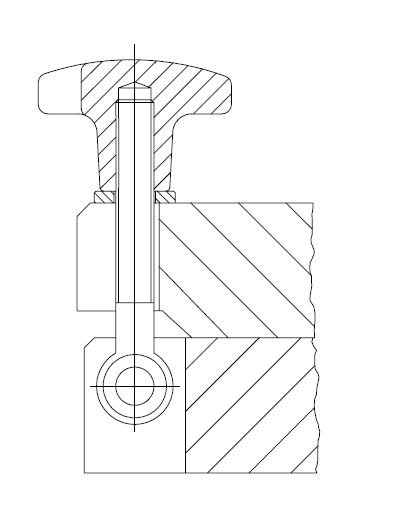

For sizes M8, M10 and M12, collar screws SM 1238-2 can be used as bearing bolts.

RoHS-compliant: yes

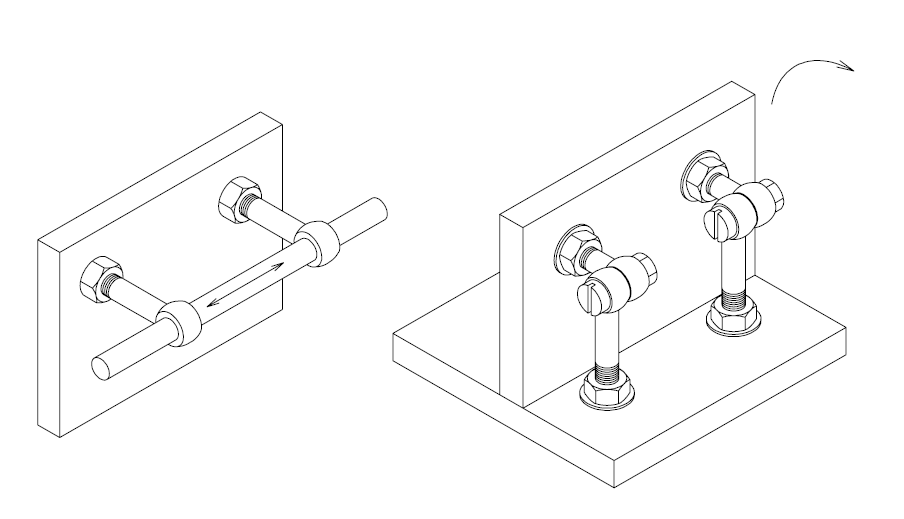

Eyebolts with a long thread similar to DIN 444
are special fasteners with a closed eye,
which serves as a connection point for e.g. ropes, hooks, bolts, carabiners, cables or rods.
The eye bolts are used for lifting and load securing, in couplings, clamping devices,
for suspension, fastening and positioning parts or machine components
in mechanical engineering, construction and transport.

Compliance:	RoHS compliant
DIN / ISO:	similar to DIN 444
Element type:	Screws / Nuts
Material:	Stainless steel, Steel
Speciality:	Long thread
Surface:	Stainless steel - matt blasted, Steel - burnished
