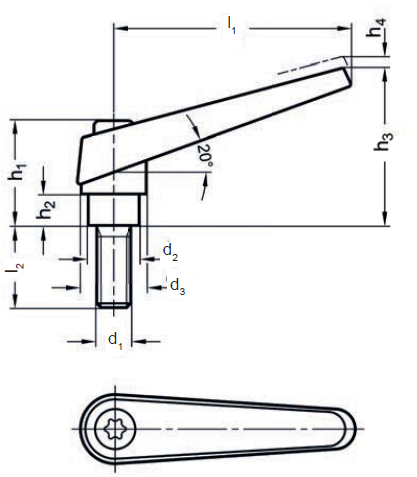

Hand lever, adjustable | SM 1187

Filter
Product information "Hand lever, adjustable | SM 1187"

with threaded stud

Material:
thread stud and retaining screw:
ST: steel blackened
NI: stainless steel 1.4305
handle: zinc die casting

Color / surface:
plastic coated
SW = black, textured finish RAL 9005
OR = orange, textured finish RAL 2004

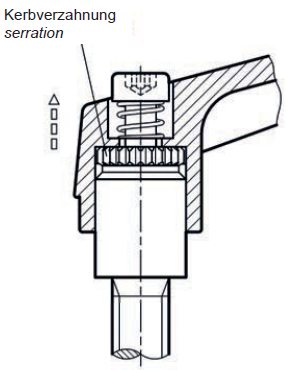

By lifting the lever, the serrations are disengaged.
The handle can be positioned by the serrations, and the threaded insert can be exchanged.
Upon releasing the handle, the serrations are automatically reengaged.
These adjustable hand levers are ideal whenever parts have to be clamped in a confined space or in a particular lever position.

RoHS-compliant:
yes
Colour: black gray, orange
Compliance: RoHS compliant
Material: Bushing/Screw: Stainless Steel, Bushing/Screw: Steel, Lever: Zinc die casting
Speciality: Locking by self-locking, With threaded stud, with internal hexagon
Surface: Stainless steel - bright, Steel - burnished, plastic coated
Type of use: Clamping lever, Lever
