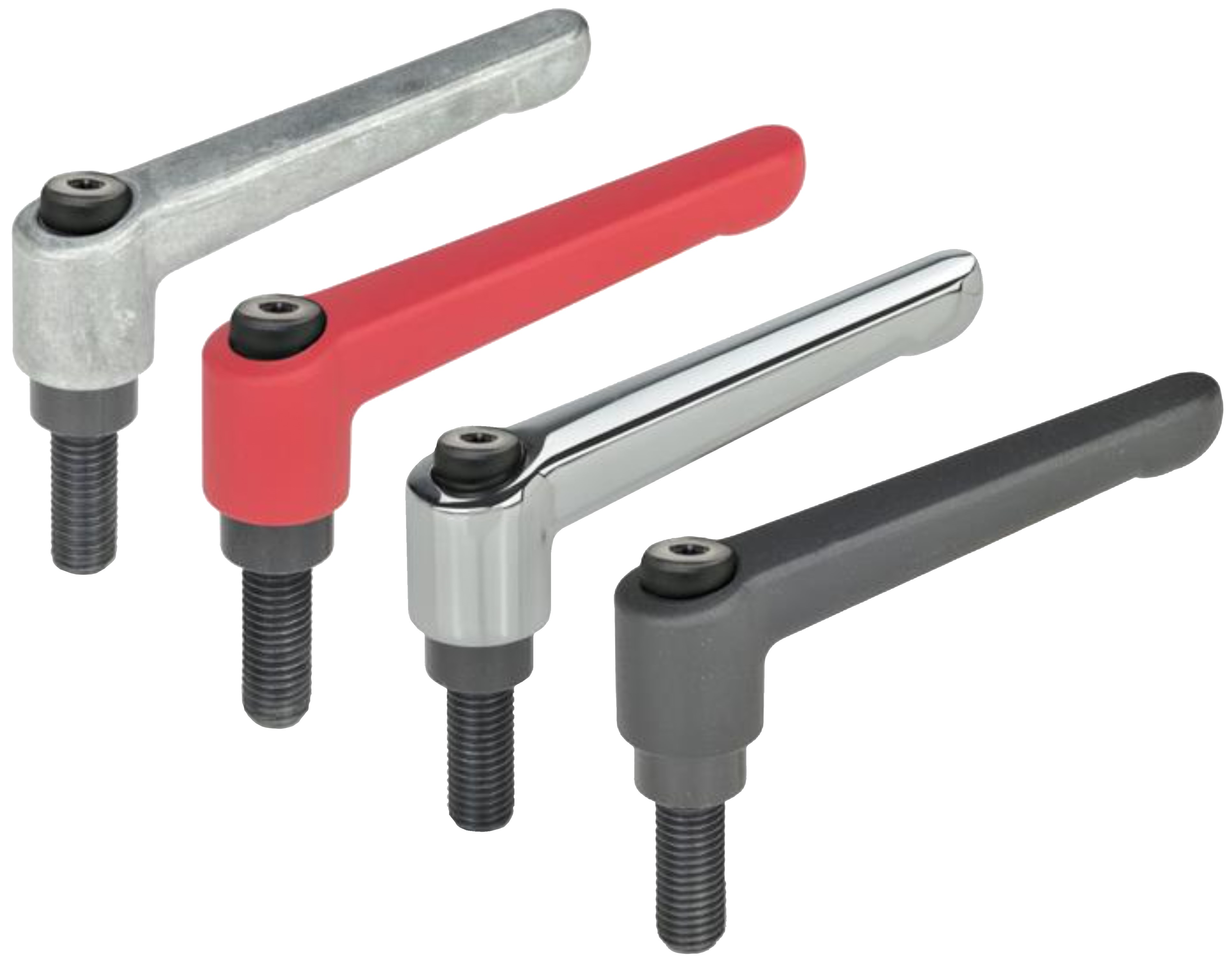

Hand lever, adjustable | SM 1188
from €4.83*
€4.90*
Available in 5 days
Delivery time: See variant in the table
This product is available in 701 versions.
Product information " Hand lever, adjustable | SM 1188"
with threaded stud
Material:
Threaded stud and retaining screw:
ST: steel property class 5.8, blackened
handle: zinc die casting
Threaded stud and retaining screw:
ST: steel property class 5.8, blackened
handle: zinc die casting
Colors / surfaces:
CR = chrome-plated
RH = uncoated
plastic coated
OR = orange RAL 2004
RS = red textured finish RAL 3000
SB = silver RAL 9006
SW = black textured finish RAL 9005
SZ = black silk finish RAL 9005
CR = chrome-plated
RH = uncoated
plastic coated
OR = orange RAL 2004
RS = red textured finish RAL 3000
SB = silver RAL 9006
SW = black textured finish RAL 9005
SZ = black silk finish RAL 9005
Good handling due to thickening at the end of the handle.
Lever adjustment by pulling.
The threaded insert is detachably connected to the handle by a serration.
By lifting (pulling) the handle, the serration is released and the clamping lever can be swung into the most favorable clamping position.
When released, the handle engages again automatically.
For use with a limited clamping range or with a specific fixed clamping position.
Screw insert and retaining screw made of stainless steel (SM 1197).
Lever adjustment by pulling.
The threaded insert is detachably connected to the handle by a serration.
By lifting (pulling) the handle, the serration is released and the clamping lever can be swung into the most favorable clamping position.
When released, the handle engages again automatically.
For use with a limited clamping range or with a specific fixed clamping position.
Screw insert and retaining screw made of stainless steel (SM 1197).
RoHS-compliant: yes
| Colour: | black, black - silk gloss, orange, red, silver |
|---|---|
| Compliance: | RoHS compliant |
| Material: | Bushing/Screw: Steel, Lever: Zinc die casting |
| Speciality: | Locking by self-locking, With threaded stud, with internal hexagon |
| Surface: | Steel - burnished, plastic coated, raw / unpainted, verchromt |
| Type of use: | Clamping lever, Lever |
Ähnliche Artikel

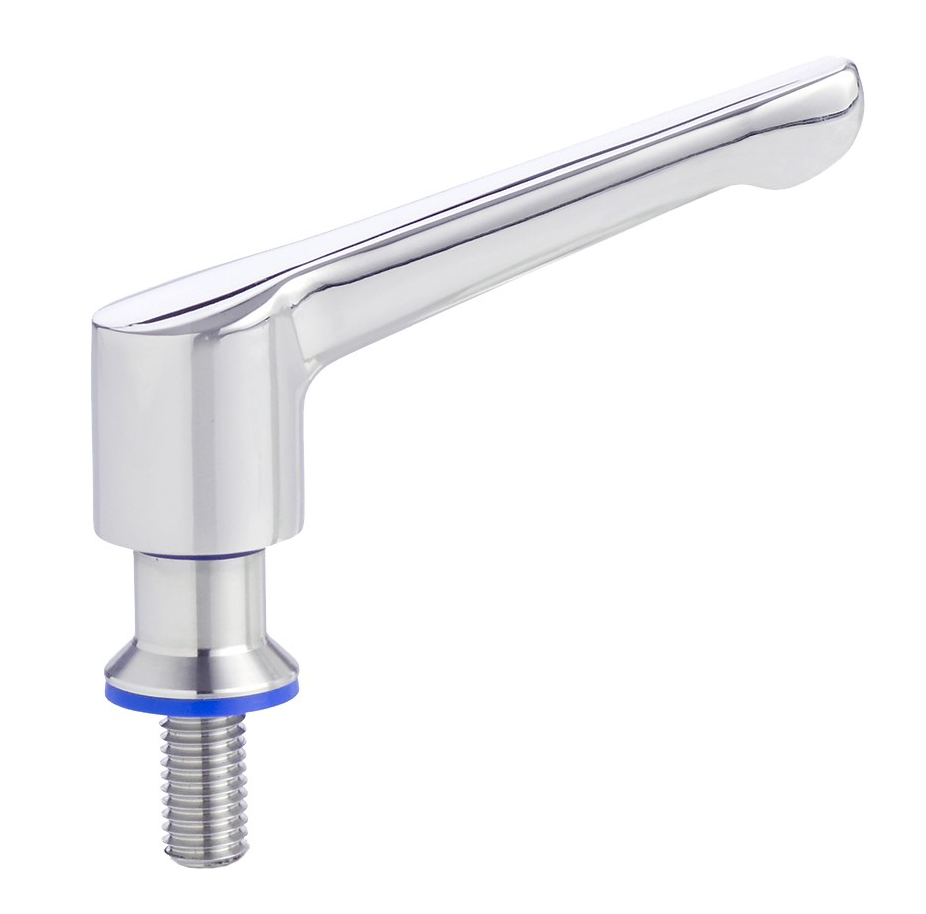

Hand lever, adjustable - HYGIENIC DESIGN | SM 1179-2
From
€51.93*
incl. VAT
stainless steel adjustable, with screw
Material:handle: stainless steel precision casting 1.4308, polished (Ra < 0.8 μm)threaded stud: stainless steel 1.4301sealing ring / wiper: hydrogenated acrylonitrile, butadiene rubber (H-NBR) temperature resistant -25 °C to +150 °CHardness 85±5 Shore A FDA compliantblue
These rustproof clamping levers with solid stainless steel handles are intended for use in hygienic areas.
The sealing screw-on surface enables dead space-free fastening.
The polished surface prevents dirt from adhering and makes cleaning easier.
Preferably used for limited clamping ranges or when a specific clamping position is required.
Lever adjustment by pulling.
The handle engages automatically when released.
Threaded insert detachably connected to handle by serration.
RoHS-compliant: yes

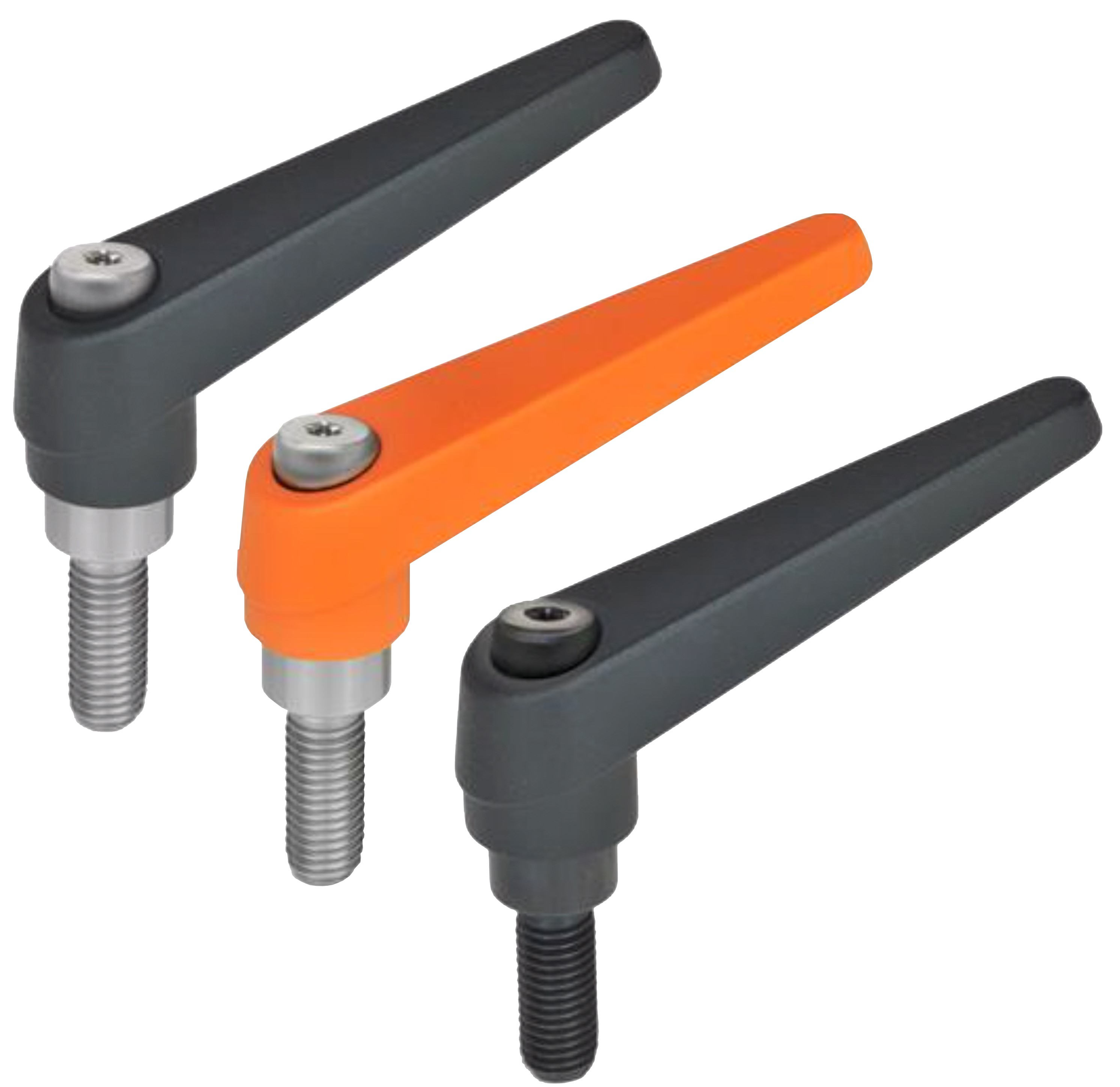

Hand lever | SM 1181
From
€3.55*
incl. VAT
adjustable with threaded stud
Material:
threaded stud and retaining screw:ST: steel, property class 5.8, blackenedNI: stainless steel 1.4305
serrated ring: zinc die-casting
handle: plastic thermoplastic (polyamide PA)
glass fiber reinforced
temperature-resistant up to 130° CColor / surface:SG = black-grey, matt RAL 7021OR = orange, matt RAL 2004
Good handling of the lever due to slight curvature and reinforcement at the end of the lever.
Lever adjustment by lifting the handle. The handle engages automatically when released.
The threaded insert is detachably connected to the handle by a serration.
RoHS-compliant: yes
Mini clamping lever | SM 1183
From
€4.68*
incl. VAT
adjustablewith screw
Material:Screw insert and retaining screw:ST: Steel, strength class 5.8, burnishedNI: Stainless steelHandle body: Die-cast zinc
Colors / surfaces:RH = unpaintedCR = chrome-platedplastic-coatedOR = orange RAL 2004RS = red - textured matt RAL 3000SB = silver RAL 9006SW = black - textured matt RAL 9005SZ = black - silk matt RAL 9005CR = Chrome-plated handle bodyGood handling due to reinforcement at the end of the lever.Lever adjustment by lifting the handle.The handle engages automatically when released.Threaded insert detachably connected to handle by serration.
RoHS-compliant: yes
Hand lever, adjustable | SM 1185
From
€2.38*
incl. VAT
with releasing buttonwith threaded studMaterial:thread stud and retaining screw:ST: steel, zinc plated, blue passivatedNI: stainless steel 1.4305screw insert: embedded in black glass fiber reinforced plastichandle: plastic Technopolymer (Polyamide PA)glass fiber reinforcedtemperature resistant up to 130 °Cblack-gray, matte, similar to RAL 7021releasing button: plastik, shiny finishcolour of the button:BL = blue, RAL 5024OR = orange, RAL 2004GR = grey, RAL 7035GB = yellos, RAL 1021GN = green, RAL 6017RT = red, RAL 3000SG = black-gray, RAL 7021Good handling due to curved shape and reinforcement at the end of the lever.The clamping position can be changed by lifting the handle or pressing the release button.The handle engages automatically when released.The threaded insert is detachably connected to the handle by a serration.When the handle is disengaged, the threaded insert can also be screwed in with the help of the edge notch.RoHS-compliant: yes
Hand lever, adjustable | SM 1187
From
€5.77*
incl. VAT
with threaded studMaterial:thread stud and retaining screw:ST: steel blackenedNI: stainless steel 1.4305handle: zinc die casting Color / surface:plastic coatedSW = black, textured finish RAL 9005OR = orange, textured finish RAL 2004By lifting the lever, the serrations are disengaged.The handle can be positioned by the serrations, and the threaded insert can be exchanged.Upon releasing the handle, the serrations are automatically reengaged.These adjustable hand levers are ideal whenever parts have to be clamped in a confined space or in a particular lever position. RoHS-compliant: yes
Hand lever, adjustable | SM 1189-1
From
€10.38*
incl. VAT
clamping lever with bushing and washer
Material:
threaded bushing and retaining screw: steel, blackenedwasher: steel, case hardened, blackened
handle: zinc die casting plastic coated
Colors / surfaces:plastic coatedOR = orange textured finish RAL 2004RS = red textured finish RAL 3000SB = silver textured finish RAL 9006SW = black textured finish RAL 9005
Good handling due to thickening at the end of the handle.
Lever adjustment by pulling.
The threaded insert is detachably connected to the handle by a serration.
By lifting (pulling) the handle, the serration is released and the clamping lever
can be swung into the most favorable clamping position.
When “released”, the handle engages again automatically.
The support washer is captive, does not rotate when tightening and protects the clamping surface
and protects the clamping surface from damage.
A typical application is the use of clamping levers for slotted holes.
RoHS-compliant: yes

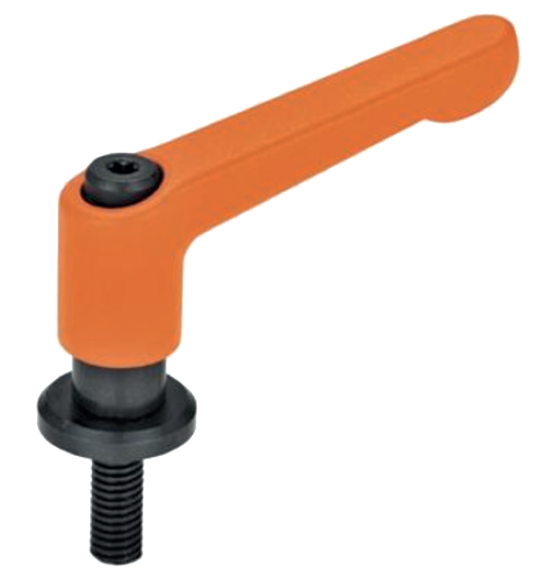

Hand lever, adjustable | SM 1189-2
From
€10.38*
incl. VAT
clamping lever with threaded stud and support washer
Material:
threaded stud and retaining screw: steel, blackenedwasher: steel, case hardened, blackened
handle: zinc die casting plastic coated
colors / surfaces:plastic coatedOR = orange textured finish RAL 2004RS = red textured finish RAL 3000SB = silver textured finish RAL 9006SW = black textured finish RAL 9005
Good handling due to thickening at the end of the handle.Lever adjustment by pulling.
The threaded insert is detachably connected to the handle by a serration.By lifting (pulling) the handle, the serration is released and the clamping lever can be swung into the most favorable clamping position.When “released”, the handle engages again automatically.The support washer is captive, does not rotate when tightening and protects the clamping surface and protects the clamping surface from damage.A typical application is the use of clamping levers for slotted holes.
RoHS-compliant: yes

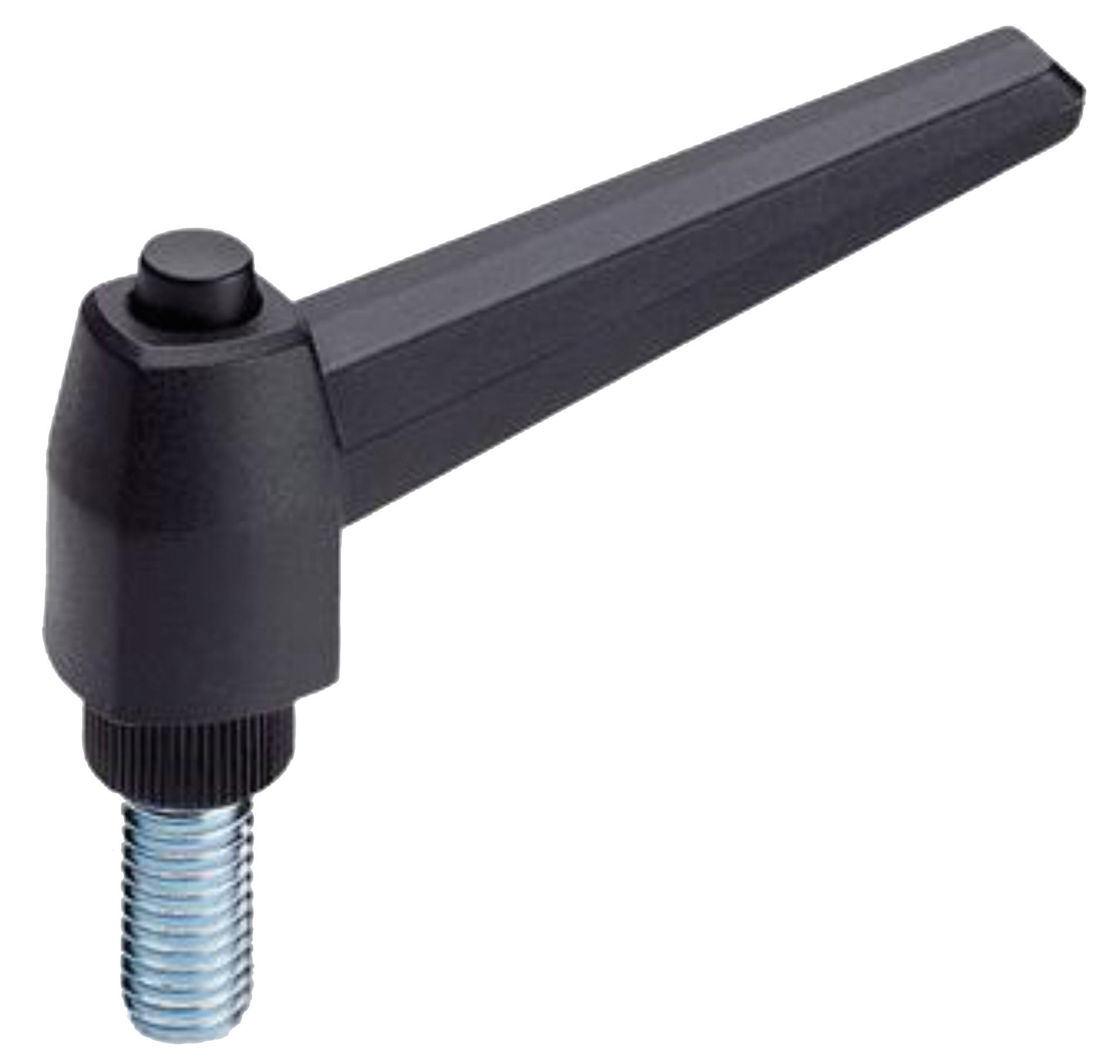

Clamping lever | SM 1190
From
€3.14*
incl. VAT
adjustable hand lever with releasing button and with threaded stud
Material:threaded stud: steel, zinc plated, blue passivatedhandle: plastic Technopolymer (Polyamide PA)glass fibre reinforcedtemperature resistant up to 120° Creleasing button: plastic, black
Color / surface:SW = black, matt RAL 9005
Lever adjustment by pulling or pushing.
The screw insert is detachably connected to the handle by a serration.
Lifting the handle releases the serration and the clamping lever can be swung into the most favorable clamping position.
When “released”, the handle engages again automatically.
The disengagement button enables effortless disengagement.
Application with limited clamping range or for certain clamping positions
or if it is not necessary to remove the lever when screwing in.
RoHS-compliant: yes

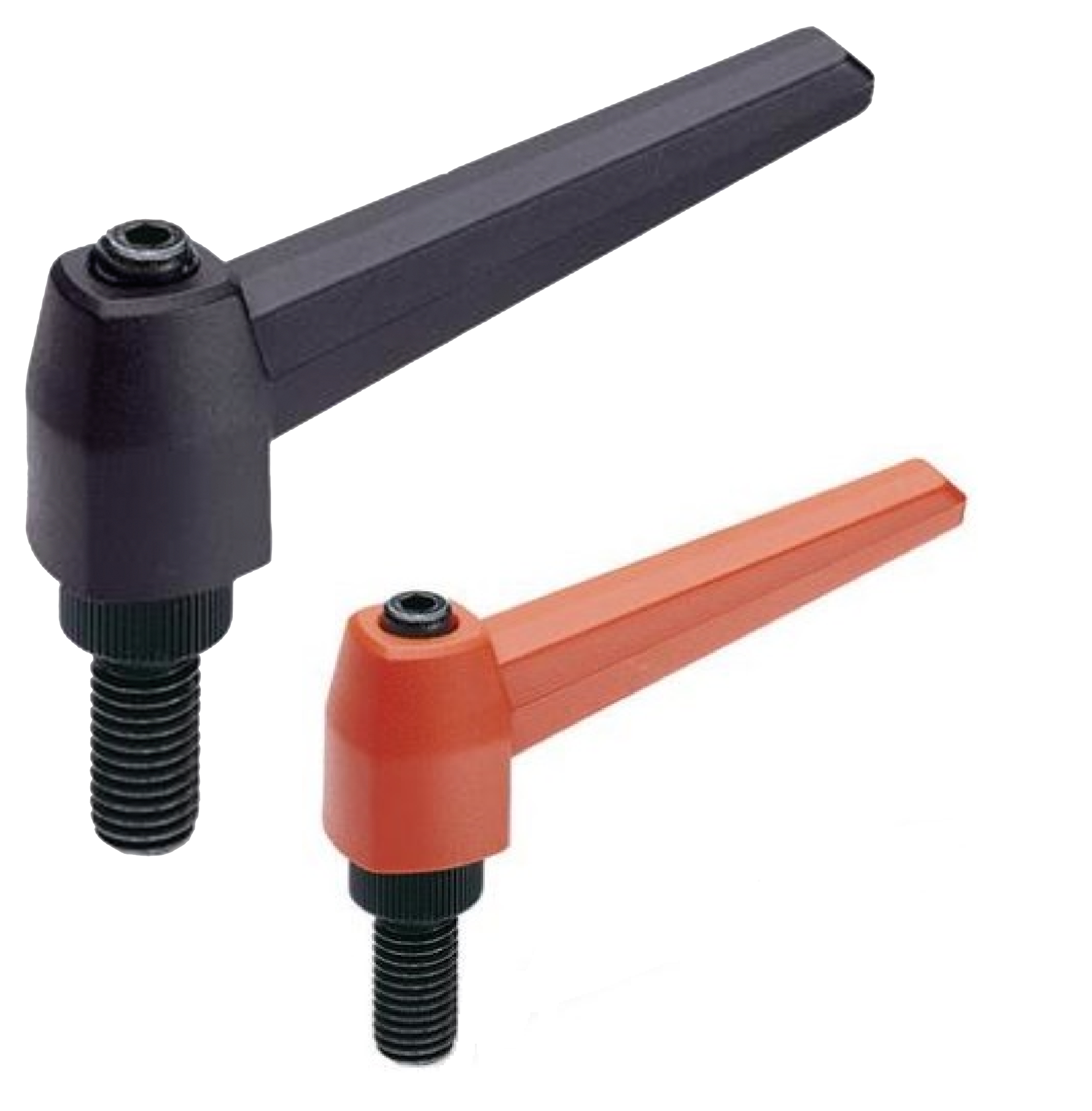

Hand lever, adjustable | SM 1191
From
€4.72*
incl. VAT
with threaded stud
Material:threaded stud and retaining screw: steel, blackenedhandle: plastic Technopolymer (Polyamide PA)glass fibre reinforcedtemperature resistant up to 130° CColor / surface:SW = black, RAL 9005 mattOR = orange, RAL 2004 matt
Lever adjustment by pulling or pushing.
The threaded insert is detachably connected to the handle by a serration.
By lifting (pulling) the handle, the serration is released and the clamping lever can be pivoted to the most favorable clamping position.
When released, the handle engages again automatically.
Used for limited clamping ranges or for specific clamping positions.
RoHS-compliant: yes

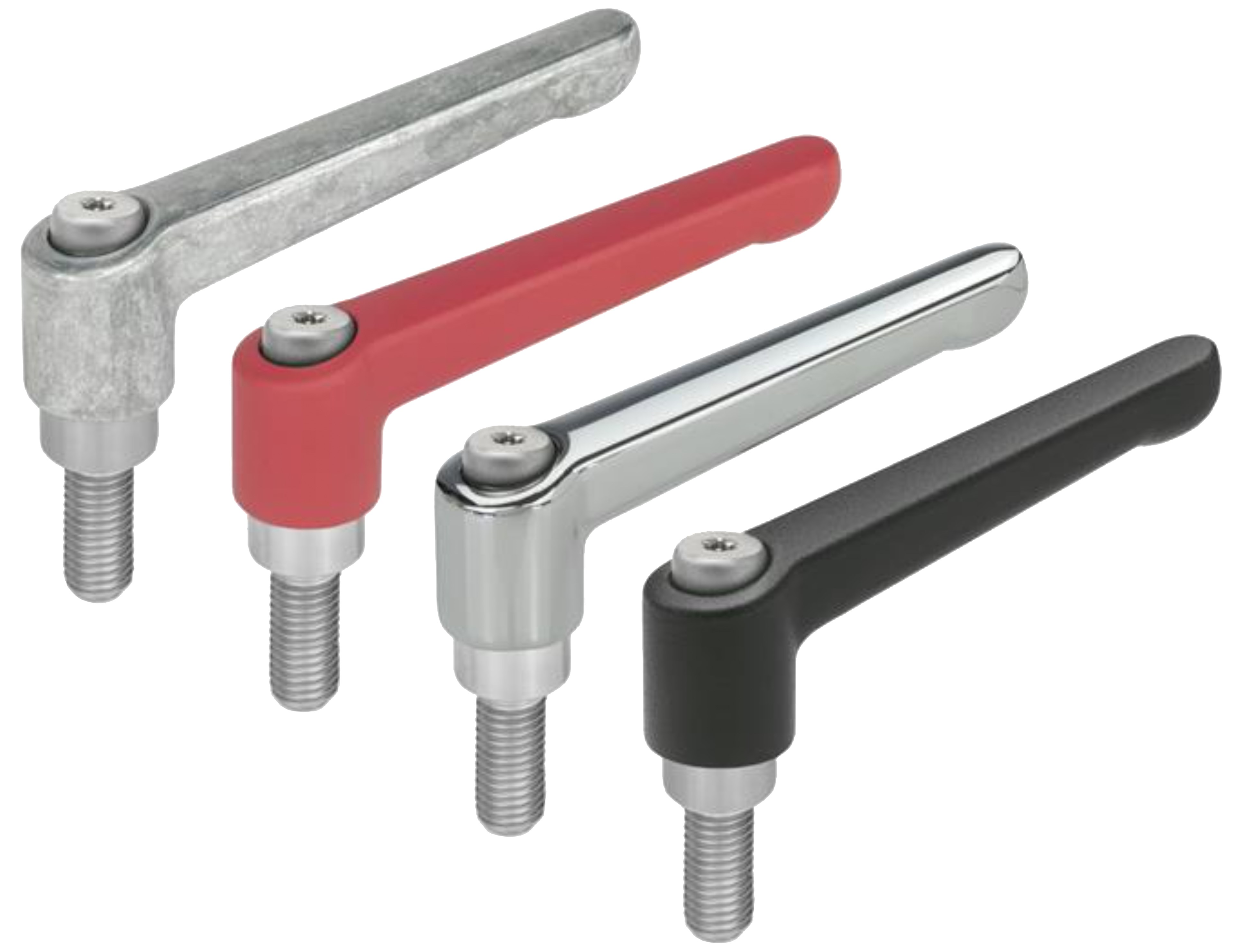

Hand lever, adjustable | SM 1197
From
€6.68*
incl. VAT
with threaded stud from stainless steelMaterial: threaded stud and retaining screw: stainless steel 1.4305handle: zinc die castingColours / surfaces: CR = chrome-platedRH = uncoated plastic coatedOR = orange RAL 2004
RS = red textured finish RAL 3000
SB = silver RAL 9006
SW = black textured finish RAL 9005
SZ = black silk finish RAL 9005Good handling due to thickening at the end of the handle.Lever adjustment by pulling.The threaded insert is detachably connected to the handle by a serration.By lifting (pulling) the handle, the serration is released and the clamping lever can be swung into the most favorable clamping position.When released, the handle engages again automatically.For use with a limited clamping range or with a specific fixed clamping position.Screw and retaining screw made of steel (SM 1188).RoHS-compliant: yes
Hand lever, adjustable | SM 1199
From
€13.86*
incl. VAT
Clamping leverstainless steelMaterial:handle: stainless steel 1.4308 matt blastedthreaded stud: stainless steel 1.4305retaining screw: stainless steel
1.4305pressure spring: stainless steel
1.4310
Form IS: with internal hexalobularForm AS: with external hexagon
Good handling due to thickening at the end of the handle.Lever adjustment by pulling.The threaded insert is detachably connected to the handle by a serration.By lifting (pulling) the handle, the serration is released and the clamping lever can be swung into the most favorable clamping position.When released, the handle engages again automatically.For use with a limited clamping range or with a certain fixed clamping position.Application e.g. in the food or chemical industry.
RoHS-compliant: yes
