Locating bushing | SM 1273-69

SCHOLZ MECHANIK GmbH

Variants table
Diameter 1	Form	Product number	Unit price	Buy

Product information "Locating bushing | SM 1273-69 "

with collar
for ball lock pins and socket pins

Material:
stainless steel 1.4305

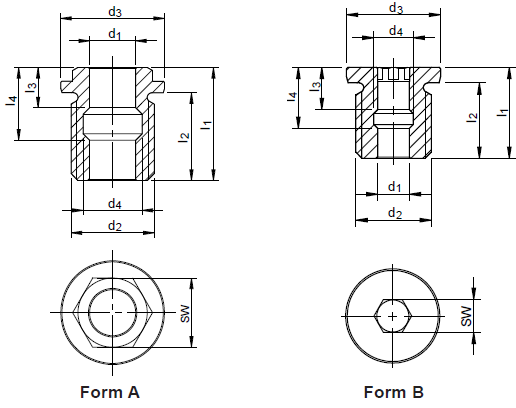

Form A: with outer hexagon
Form B: internal hexagon

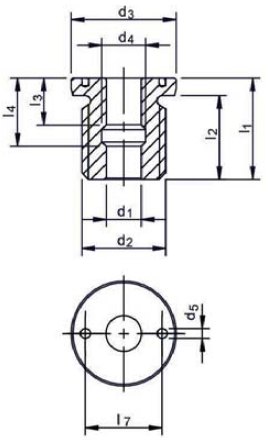

Form C: plain, with front hole optimized centering due to precise collar

Easy installation, precise collar allows for good centering.
Can be installed in various substrate materials,
can also be used with thin-walled components,
can be used on both sides.
Form C with face hole is suitable for applications that require a flat surface when screwed in.
All versions are corrosion-resistant and wear-resistant.

Assembly:
Form C with face hole can be installed with a cranked face pin wrench (SM 1273-67 STV 2) or with a face pin socket wrench (SM 1273-67 STS 4 or SM 1273-67 STS 5).

RoHS-compliant: yes

Compliance:	RoHS compliant
Material:	Stainless steel
Speciality:	Standard thread, With collar, with external hexagon, with internal hexagon
Surface:	Stainless steel - bright
Type of use:	Bushings, Plug-in bolt / ball lock pin
