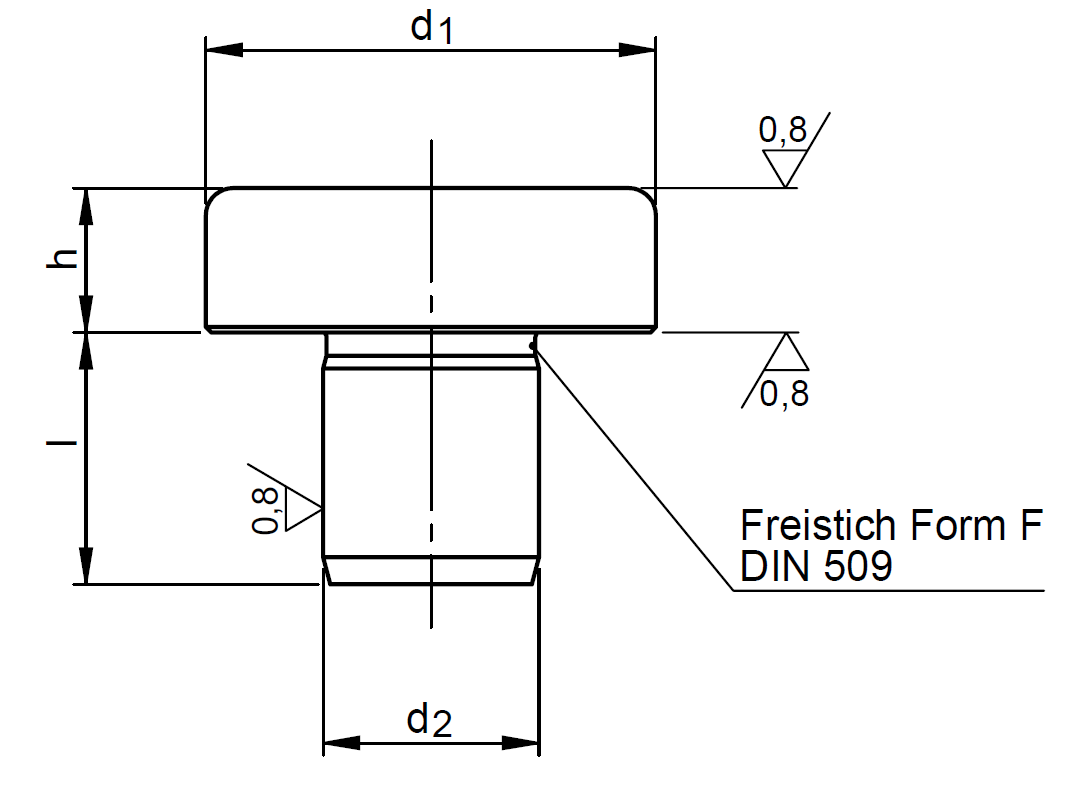

Support bolt DIN 6321 (old standard)

Compliance:	RoHS compliant
DIN / ISO:	DIN 6321 (old standard)
Element type:	Support bolt, bolts
Material:	Steel

Similar Items

Supporting dowel | SM 1280-4

Diameter 1: 05,00 | Hight h: 08,00

Material: steelhardened and ground RoHS-compliant: yesUse as a support and support for fixtures and workpieces.

€4.06* incl. VAT

Details

Locating pin | SM 1280-5 A/C

Diameter: 16,00 | Form: C | Length: 42,00

changeablecylindricalForm A and C Material: tool steelhardened and ground Form A: cylindricalForm C: cylindrical, flattened RoHS-compliant: yes see alsoLocating pin, changeable | SM 1280-5 B/CDForm B: cylindrical, steppedForm D: cylindrical, stepped, flattened

Variants from €18.54* incl. VAT

€30.56* incl. VAT

Details

Locating pin | SM 1280-5 B/D

Diameter: 10,00 | Form: B | Length 2: 11,00

changeablecylindrical, steppedForm B and D Material: tool steelhardened and ground Form B: cylindrical, steppedForm D: cylindrical, stepped, flattened RoHS-compliant: yes see alsoLocating pin, changeable | SM 1280-5 A/CForm A: cylindricalForm C: cylindrical, flattened

€20.78* incl. VAT

Details

Positioning pin | SM 1281

Diameter: 22,50 | Form: B

cylindrically Material: tool steelhardened Form A: ground to ISO tolerance g6Form B: not ground, with 0,5 mm additional plan surfaces with centering RoHS-compliant: yes

Variants from €7.53* incl. VAT

€14.18* incl. VAT

Details

Positioning pin | SM 1282

Diameter: 20,50 | Form: B

flattened Material: tool steel, hardened Form A: ground to ISO tolerance g6Form B: not ground, with 0,5 mm additional plan surface with centering RoHS-compliant: yes

Variants from €11.14* incl. VAT

€18.11* incl. VAT

Details

Locating pin B | SM 1283-1

Diameter 2: 06,00 | Form: B | Material: ST

with ball end Form B - stepped cylindrical Material: ST: tool steelhardened and groundNI: stainless steelhardened and ground Ball ended straight pins facilitate inserting work pieces and avoid clamping inclination. RoHS-compliant: yes

€16.66* incl. VAT

Details

Locating pin A | SM 1283-2

Diameter 2: 20,00 | Form: A | Material: NI

with ball endForm Anot stepped Material:ST: tool steelhardened and groundNI: stainless steelhardened and ground Ball ended straight pins facilitate inserting work pieces and avoid clamping inclination. RoHS-compliant: yes

Variants from €14.14* incl. VAT

€46.99* incl. VAT

Details

Locating pin D | SM 1284-1

Diameter 2: 12,00 | Form: D | Material: ST

with flattened ball end Form D - stepped Material: ST: tool steelhardened and groundNI: stainless steelhardened and ground Ball ended straight pins facilitate inserting work pieces and avoid clamping inclination. RoHS-compliance: yes

Variants from €20.30* incl. VAT

€26.82* incl. VAT

Details

Locating pin C | SM 1284-2

Diameter 2: 08,00 | Form: C | Material: ST

with flattened ball endForm C - not stepped Material:ST: tool steelhardened and groundNI: stainless steelhardened and ground Ball ended straight pins facilitate inserting work pieces and avoid clamping inclination. RoHS-compliant: yes

Variants from €18.02* incl. VAT

€23.17* incl. VAT

Details

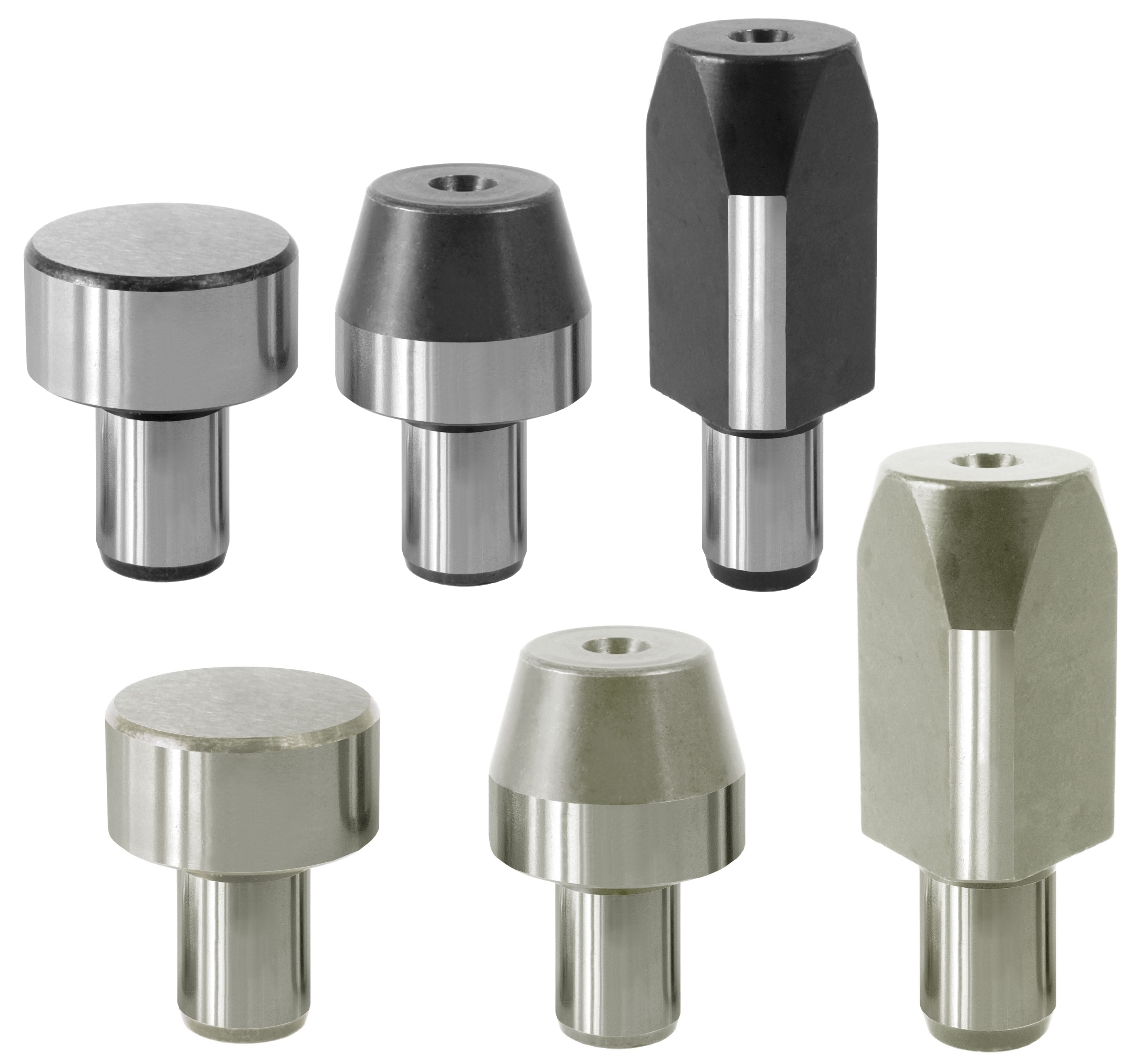

Locating pin - DIN 6321 | SM 1280-1

Seating pin, headed dowelcylindrical Material: ST: tool steel, hardened, groundNI: stainless steel 1.4112, hardened Form A: cylindrical,bearing surface without center.Can be used as support, stops and feet.Form B: cylindrical,for positioning in bores with fitting dimension, can also be used as stops and feet.Support surface with center permissible in accordance with DIN 6321 .Form C: cylindrical, flattenedfor bridging tolerances in the distance between two holesor for fixing parts to be positioned in one direction only.Support surface with center permissible in accordance with DIN 6321 . RoHS-compliant: yes

From €5.82* incl. VAT

Details

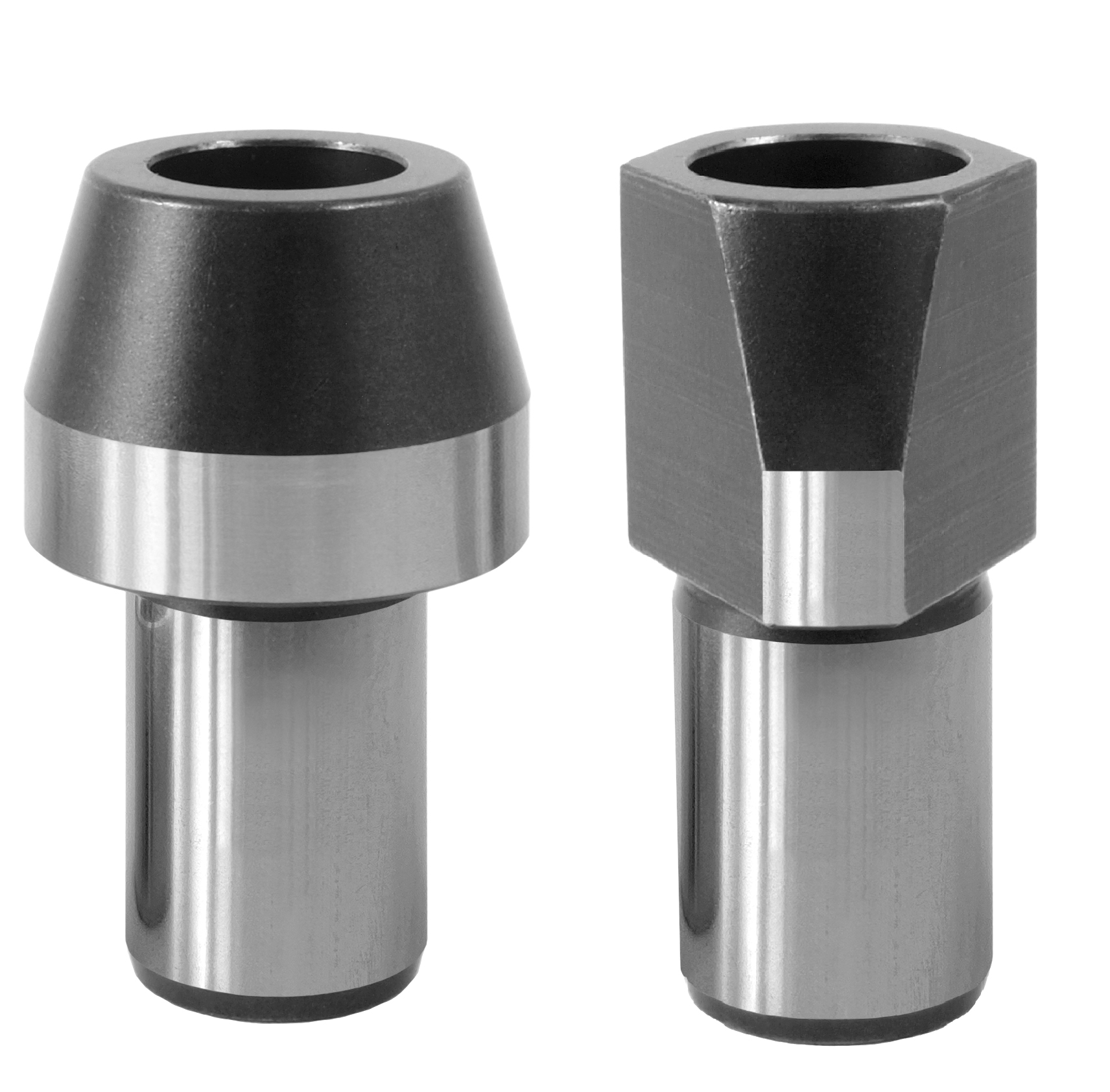

Locating pin - sim. DIN 6321 | SM 1280-11

Support bolt with bore hole, screwablesim. to DIN 6321 Material: Case-hardened steel, case-hardened, burnished and ground Form B: screw-on locating bolt, cylindrical Form C: screw-on locating bolt, flattened The cylindrical locating bolts (shape B) for positioning in holes with fitting dimensions and can also be used as stops and feet.Flattened locating pins (shape C) are used to compensate for tolerances in the distance between two holes or to fix parts to be positioned in one direction only. Additional safety through fastening options from above and below (can also be used for disassembly).Size 6 can only be mounted from the top.External dimensions are similar to DIN 6321. RoHS-compliant: yes

From €11.50* incl. VAT

Details

Location pin - DIN 6321 | SM 1280

(old standard)
