Mounting block | SM 1274-1

SCHOLZ MECHANIK GmbH

from €12.97*

€13.89*

Prices incl. VAT plus shipping costs

Available in 5 days

Delivery time: See variant in the table

This product is available in 12 versions.

Show all variants

Diameter 1

M12x1,5

M16x1,5

M20x1,5

Form

A

AN

B

BN

Product number: 56575

Description Datasheet

Diameter 1	Form	Product number	Unit price	Buy

Product information "Mounting block | SM 1274-1 "

for Indexing Plungers / Cam Action Indexing Plungers

Material:
ST: steel, blackened
grub screw from steel SM 1239-1 with brass pad
NI: stainless steel, 1.4305 / AISI 303
grub screw from stainless steel SM 1239-1 with brass pad

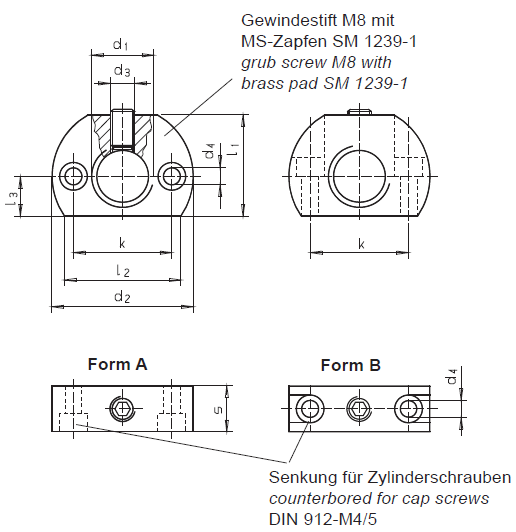

Form A: fixing holes parallel to plunger
Form AN: fixing holes parallel to plunger, mounting block from stainless steel
Form B: fixing holes vertical to plunger
Form BN: fixing holes vertical toplunger, mounting block from stainless steel

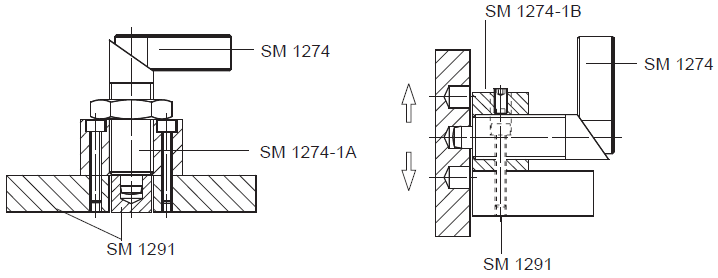

Mounting blocks broaden the mounting possibilities and are an added feature for the cam action indexing plungers SM 1274. They can also be used with indexing plungers SM 1273.

RoHS-compliant: yes

Material:	Stainless steel, Steel
Type of use:	Latch / Bolt

Accessories

Positioning bushing | SM 1273-56

with hexagonal collarfor indexing plungers / cam action indexing plungers Material:ST: steelhardened, blackenedNI: stainless steel 1.4057 / AISI 431hardened Positioning bushings SM 1273-56 are used in connection with bolts of indexing plungers.The threads are adapted to the mounting blocks SM 1274-1 and SM 1274-10. RoHS-compliant: yes

From €3.08* incl. VAT

Details

Indexing plunger | SM 1274

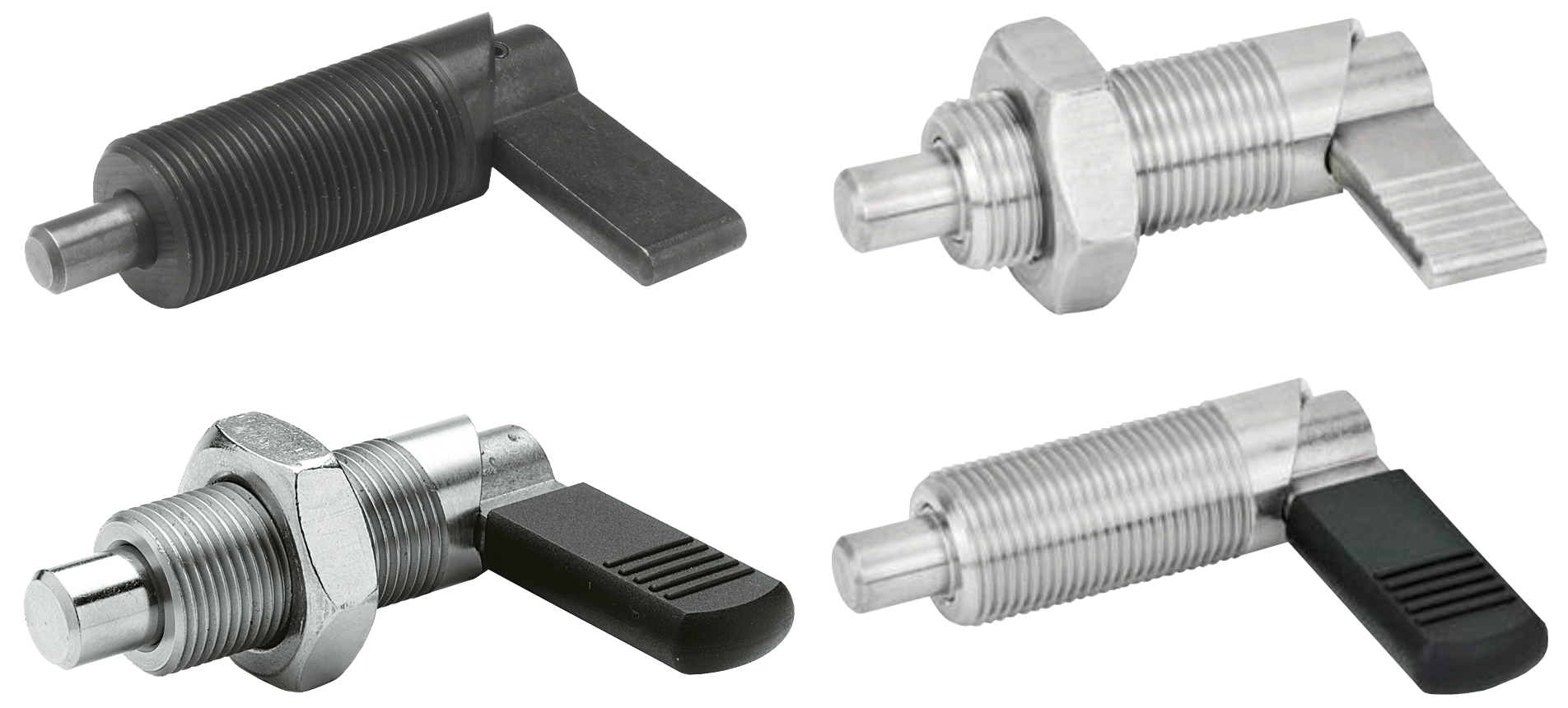

Cam action indexing plungerwith or without plastic capMaterial:Pressure spring: stainless steel 1.4310 / AISI 301Cap (for type B / BK): plastic, polyamide (PA), black, matte finishST: steelGuide: steel, blackenedPlunger pin: steel, nitridedLatch arm: steel, sinteredNI: stainless steelGuide: stainless steel 1.4305 / AISI 303 Plunger pin:stainless steel 1.4305 / AISI 303Latch arm: stainless steel 1.4404 / AISI 316LHC, sinteredForm A: without lock nut, without plastic cap Form AK: with lock nut, without plastic cap Form AN: without lock nut, without plastic cap Form AKN: with lock nut, without plastic cap Form B: without lock nut, with plastic cap Form BK: with lock nut, with plastic cap Form BN: without lock nut, with plastic cap Form BKN: with lock nut, with plastic cap Indexing plungers / Locking pins are used when the locking pin must not protrude at times. Turning the pin 180° retracts the locking pin and holds it in both positions with a locking notch. Tightly tolerated locking pin guide. Version with standard thread and fine thread.RoHS-compliant: yes

From €12.94* incl. VAT

Details

Similar Items

Mounting block | SM 1274-10

Diameter 1: M12x1,5 | Form: A

Retaining piecesfor indexing plungers / cam action indexing plungers Material:zinc die casting,powder coated, black, textured finish Form A: mounting from the backForm B: mounting from the front Mounting perpendicular to the latching pin.Mounting blocks / retaining pieces are mounting aid for indexingplungers, indexing plungers, stop buffers and stop screws and extendtheir range of application.They can also accommodate positioning bushes SM 1273-56for positioning the indexing pin of an indexing plunger or indexing plunger. RoHS-compliant: yes
