Mounting block | SM 1274-10

SCHOLZ MECHANIK GmbH

Diameter 1	Form	Product number	Unit price	Buy

Product information "Mounting block | SM 1274-10"

Retaining pieces
for indexing plungers / cam action indexing plungers

Material:
zinc die casting,
powder coated,
black, textured finish

Form A: mounting from the back

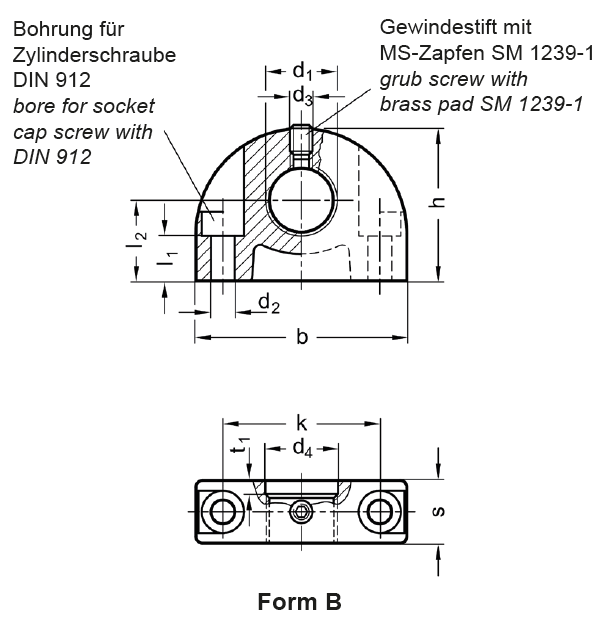

Form B: mounting from the front

Mounting perpendicular to the latching pin.
Mounting blocks / retaining pieces are mounting aid for indexing
plungers, indexing plungers, stop buffers and stop screws and extend
their range of application.
They can also accommodate positioning bushes SM 1273-56
for positioning the indexing pin of an indexing plunger or indexing plunger.

RoHS-compliant: yes

Accessories

Positioning bushing | SM 1273-56

with hexagonal collarfor indexing plungers / cam action indexing plungers Material:ST: steelhardened, blackenedNI: stainless steel 1.4057 / AISI 431hardened Positioning bushings SM 1273-56 are used in connection with bolts of indexing plungers.The threads are adapted to the mounting blocks SM 1274-1 and SM 1274-10. RoHS-compliant: yes

From €3.08* incl. VAT

Details

Indexing plunger | SM 1274

Cam action indexing plungerwith or without plastic capMaterial:Pressure spring: stainless steel 1.4310 / AISI 301Cap (for type B / BK): plastic, polyamide (PA), black, matte finishST: steelGuide: steel, blackenedPlunger pin: steel, nitridedLatch arm: steel, sinteredNI: stainless steelGuide: stainless steel 1.4305 / AISI 303 Plunger pin:stainless steel 1.4305 / AISI 303Latch arm: stainless steel 1.4404 / AISI 316LHC, sinteredForm A: without lock nut, without plastic cap Form AK: with lock nut, without plastic cap Form AN: without lock nut, without plastic cap Form AKN: with lock nut, without plastic cap Form B: without lock nut, with plastic cap Form BK: with lock nut, with plastic cap Form BN: without lock nut, with plastic cap Form BKN: with lock nut, with plastic cap Indexing plungers / Locking pins are used when the locking pin must not protrude at times. Turning the pin 180° retracts the locking pin and holds it in both positions with a locking notch. Tightly tolerated locking pin guide. Version with standard thread and fine thread.RoHS-compliant: yes

From €12.94* incl. VAT

Details

Mounting block | SM 1274-10

Retaining piecesfor indexing plungers / cam action indexing plungers

Retaining pieces
for indexing plungers / cam action indexing plungers
