Precision leader pin | SM 4070
from €5.63*
€5.68*
Available in 5 days
Delivery time: See variant in the table
This product is available in 153 versions.
Product information "Precision leader pin | SM 4070 "

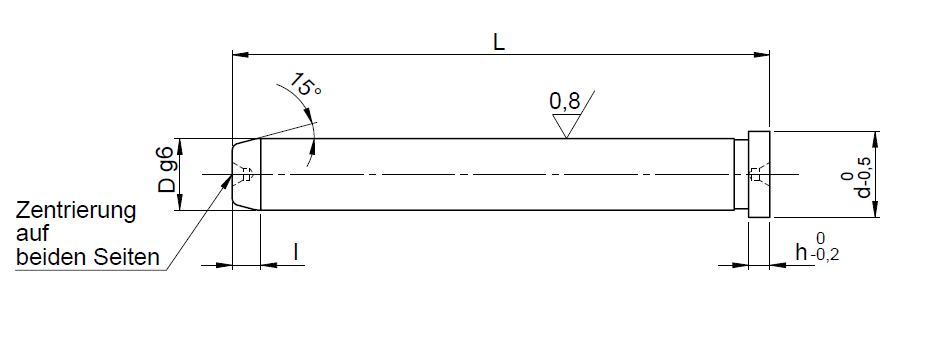

Guide pin with collar
for Guide bushings SM 4030
Material: 1.7139
Hardness: HRc 60±1
Surface: ground
RoHS-compliant: yes
| Material: | Steel - hardened |
|---|---|
| Speciality: | With collar |
| Type: | Guide bushings / bolts |
CAD data
Accessories
CAD Data
Guide bushing | SM 4030
From
€6.50*
incl. VAT
with collarfor Precision leader pins SM 4070Material: 1.7139Hardness: HRc 60±1Surface: ground
RoHS-compliant: yes
SUPERCRAFT Soft-face hammer | SM 3366A
From
€34.36*
incl. VAT
SUPERCRAFT Soft-face hammer with vibration-reducing
Tubular head: filled with steel shotHandle: HickoryImpact inserts: Nylon, white
Note:Non-rebound, for extra powerful strikes | Noise-dampening and gentle on the joints | Completely robot-welded | Very safe handle-head-connection due to aluminium wedge and safety pin | Robust powder coating | Inserts made of special nylon with maximum strength | Vibration-dampening, ergonomically shaped, very stable and varnished hickory handle | Handle protection sleeve acts as an overstrike protector | Handle and inserts are replaceableThe tubular head of the SUPERCRAFT mallets is fi lled with steel shot. The resulting effect is that the energy of the steel shot is transferred with a slight delay when the mallet's contact surface hits the workpiece. The reduced rebound allows the impact energy to be absorbed with perfect effi ciency. The result is impact of exceptional magnitude. Working with SUPERCRAFT sledge hammers is much safer, easier on the joints and quieter than with ordinary steel hammers.
Application Areas:Hall construction, steel construction, exhibition Positioning and joining of workpieces in the vice, sheet-metal working, assembly f sharp-edged workpieces, assembly and repair work in the automotive and truck sector, Scaffold and tent construction, Hall, steel and exhibition stand construction, Concrete formwork, straightening work, housing assembly, plant construction, Driving steel wedges, Maintenance / Repair / Overhaul
SUPERCRAFT Soft-face hammer | SM 3377A
From
€38.23*
incl. VAT
SUPERCRAFT Soft-face hammer with vibration-reducing
Tubular head: fi lled with steel shotHandle: steel tube and ergonomic rubber gripImpact inserts: Nylon, white
Note:Non-rebound, for extra powerful strikes | Noise-dampening and gentle on the joints | Completely robot-welded | Very safe handle-head-connection due to aluminium wedge and safety pin | Wear-resistant powder coating prevents corrosion | Inserts made of special nylon with maximum strength | No chipping (even at tempeatures below zero) | Break-proof steel tube handle with ergonomic non-slip rubber grip | Handle protection sleeve acts as an overstrike protector | Handle and inserts are replaceable
The tubular head of the SUPERCRAFT mallets is fi lled with steel shot. The resulting effect is that the energy of the steel shot is transferred with a slight delay when the mallet's contact surface hits the workpiece. The reduced rebound allows the impact energy to be absorbed with perfect effi ciency. The result is impact of exceptional magnitude. Working with SUPERCRAFT sledge hammers is much safer, easier on the joints and quieter than with ordinary steel hammers.
Application Areas:Positioning and joining of workpieces, assembly of sharp-edged workpieces, straightening work, housing assembly, plant construction, maintenance, repair and overhaul work, assembly and repair work in the automotive and truck sector, sheet-metal working
