Rubber endstop buffer | SM 3210

cylindricalwith two female threads Material:body: natural rubber (caoutchouc NR)Hardness 55 ±5 shore AblackSupport washer and threaded bushing:ST: steel, galvanized, blue chromatedSST: steel, galvanized, blue chromated (special size)NI: stainless steel To be used for elastic bearing of pumps, compressors, motors, etc.

From €0.87* incl. VAT

Details

Rubber endstop buffer | SM 3211

cylindricalwith female thread and screw Material:body: natural rubber (caoutchouc NR) Hardness 55 ±5 shore AblackSupport washer, screw and threaded bushing:ST: steel, galvanized, blue chromatedSST: steel, galvanized, blue chromated (special size)NI: stainless steel To be used for elastic bearing of pumps, compressors, motors, etc.

From €0.77* incl. VAT

Details

Rubber endstop buffer | SM 3212

cylindricalwith two screws Material:body: natural rubber (caoutchouc NR)hardness 55 ±5 shore Ablack Support washers and screws: ST: steel, galvanized, blue chromatedSST: steel, galvanized, blue chromated (special size)NI: stainless steel To be used for elastic bearing of pumps, compressors, motors, etc.

From €0.76* incl. VAT

Details

Rubber endstop buffer | SM 3220

cylindrical with one threaded bush Material:body: natural rubber (caoutchouc NR)hardness 55 ±5 shore Ablack Support washer and threaded bushing: ST: steel, galvanized, blue chromatedSST: steel, galvanized, blue chromated (special size)NI: stainless steel To be used as an elastic end-stop, bearing foot etc.

From €0.62* incl. VAT

Details

Rubber endstop buffer | SM 3221

cylindrical with one screw Material:body: natural rubber (caoutchouc NR) hardness 55 ±5 shore AblackSupport washer and threaded studt: ST: steel, galvanized, blue chromatedSST: steel, galvanized, blue chromated (special size)NI: stainless steel To be used as an elastic end-stop, bearing foot etc.

From €0.00* incl. VAT

Details

Rubber endstop buffer, low | SM 3222

cylindrical with through hole Material:body: synthetic rubber (NBR) hardness 70 ±5 shore A blacksupport washer: steel, zinc-plated by galvanization, passivated Form A: with through-boreForm B: with through-bore and adhesive pad For elastic, damping and noise-reducing mounting, gentle on surfaces, Can also be used as a spacer and foot washer.Temperature resistant -30° to 120°. RoHS-compliant: yes

From €2.18* incl. VAT

Details

Rubber endstop buffer | SM 3230

parabolic with threaded bush or screw Material:body: natural rubber (caoutchouc NR)hardness 55 ±5 shore Ablack Support washer, threaded bushing, screw: ST: steel, galvanized Form A: with female threadForm B: with screw To be used as an elastic end-stop etc. e.g. for conveyor trolleys.The parabolic shape of these buffers generates shock effects are absorbed gentler.Avoids strong vibrations that can cause damage,noise caused by impacts is dampened,a reduced rebound is achieved... RoHS compliant: yes

From €0.99* incl. VAT

Details

Silicone endstop buffer | SM 3240

truncated cone formwith threaded bush Material:body: Silicone rubber hardness 55 ±5 shore Alight graysupport washer and threaded bushing: NI: stainless steel 1.4301 Because of the high material purity, this version is suitable for all types of applicationwhich have demanding hygienic requirements (e.g. foodstuffs industry).Endstop buffers made from silicone rubber have a wider temperature rangefor use than rubber endstop buffers: temperature resistant -30° to 200°. RoHS-compliant: yes

From €9.78* incl. VAT

Details

Variants table
Diameter 1	Diameter 2	Length	Product number	Unit price	Buy

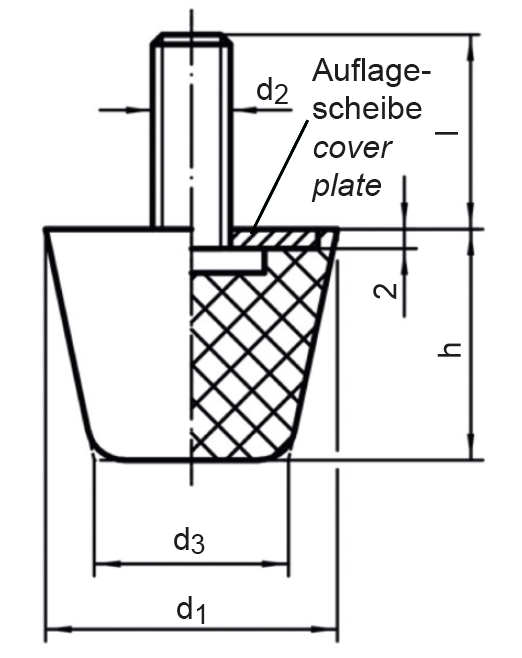

Product information "Silicone endstop buffer | SM 3241"

truncated cone form
with thread stud

Material:
body:
Silicone rubber
hardness 55 ±5 shore A
light gray
support washer and threaded stud:
NI: stainless steel 1.4301

Because of the high material purity, this version is suitable for all types of application
which have demanding hygienic requirements (e.g. foodstuffs industry).
Endstop buffers made from silicone rubber have a wider temperature range
for use than rubber endstop buffers: temperature resistant -30° to 200°.

RoHS-compliant: yes

Compliance:	RoHS compliant
Element type:	Rubber buffer, Stop buffer
Material:	Bushing/Screw: Stainless Steel, Silicone - Rubber

Silicone endstop buffer | SM 3241

truncated cone formwith thread stud

truncated cone form
with thread stud
