Highlights from our online store

Self-aligning pad | SM 1146

with flattened ballwith thread Material: Form C + FST: body: heat-treated steel, temperedball: ball-bearing steel, hardened Form C NI: body: 1.4057, heat-treatedball: 1.3541, nickel-plated Form C: flat-faced ball, plain surfaceForm F: flat-faced ball, ribbed surface RoHS-compliant: yesSelf-aligning pads with threaded pin made of steel or stainless steel with movable smooth or ribbed contact surfaces are used as stops, supports or thrust pads for clamping, tensioning and supporting. They are suitable for installation in clamping elements, also for load transfer between non-parallel surfaces. The movable ribbed support surface provides special support for clamped components.

From €28.20* incl. VAT

Details

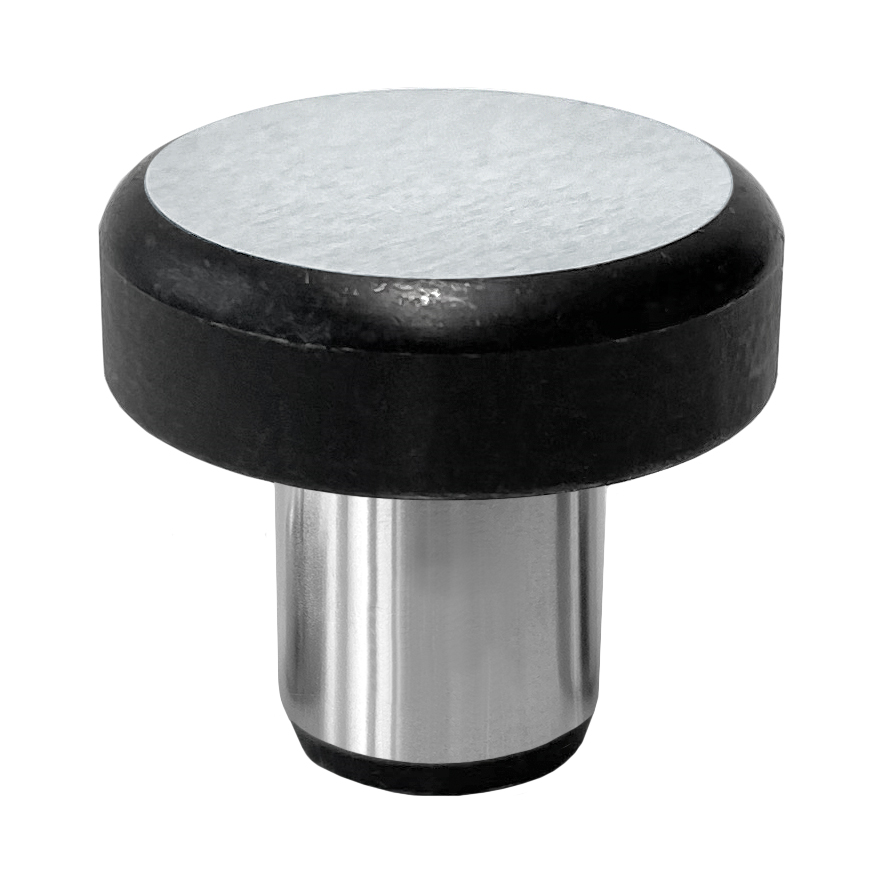

Location pin - DIN 6321 | SM 1280

(old standard) Material: steelhardened Support surface with no center.Can also be used as stops. RoHS-compliant: yes

From €3.90* incl. VAT

Details

Clamp with ball support | SM 1061

with flattened ballsim. to DIN 6314 clamp: heat treated steelblackenedball: ball-bearing steel hardened and bright Due to the flexible supported ball, these clamps can achieve distortion-free clamping to a large extent.Ball secured against turning.The large clamping range enables flexible use when clamping workpieces and components, e.g. in fixture construction, mechanical engineering and toolmaking. RoHS-compliant: yes

From €34.83* incl. VAT

Details

Punch guide bushing - DIN 9845 C | SM 1005

Material:Steelhardened and groundHärte: HRc 63±1RoHS-compliant: yesThe punch guide bushes in accordance with DIN 9845 C ensure the precise guidance of cutting punches in machine tools and punching tools and help to reduce wear and improve the service life of the tools.Delivery with chamfer or with centring neck on request.

Variants from €3.36* incl. VAT

€4.80* incl. VAT

Details

CAD Data

Clamping bushing | SM 1003-5

DIN 173 Part 1for plug-in drill bushings SM 1002-4 Material: Special steelSurface: blackendmachine screw SM 1291 inclusive RoHS-compliant: yes Note:for renewable bushes SM 1002-4

From €6.30* incl. VAT

Details

CAD Data

Drill bushing - DIN 172 A | SM 1001 A

Positioning bush DIN 172 / ISO 4247 Form Awith collar, hardenedMaterial: Special steelhardened and ground Hardness: HRc 63±1Form A: with one radius without grooves Form B: with two radiuses without grooves you will find as an extra article Drill bushing - DIN 172 B | SM 1001 BRoHS-compliant: yesLocating hole in the workpiece to ISO tolerance H6 or H7.For other dimension combinations, see SM 1002. Drill bushes from SCHOLZ MECHANIK are used in all manufacturing companies as a cost-effective and wear-resistant component. No longer just for precise drill guidance, but also in combination with new production processes - e.g. 3D printing - the drill bush can be used to quickly produce clamping fixtures, measuring gauges, clamping supports, etc. Drill positioning bushes are important and useful elements for placement and grid plates for turning and milling centres. Their high hardness and tight tolerances ensure very high repeat accuracy and a long service life.on requestForm CA: with one radius, additionally with grooves for gluingForm CB: with two radiuses, additionally with grooves for gluing Form CVA: with one radius, additionally with grooves fand locking deviceForm CVB: with two radiuses, additionally with grooves fand locking device

From €2.76* incl. VAT

Details

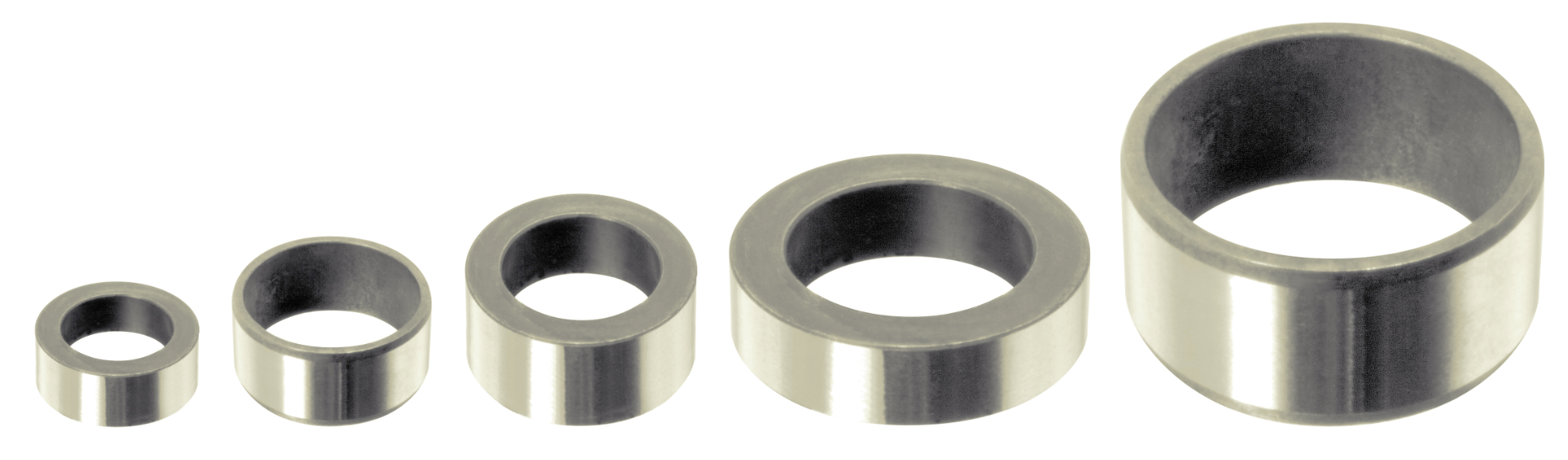

Locating bushing | SM 1020-1

Material: Stainless steelhardened Locating bushes allow a precisely positioning of the workpeace and fix shear forces. RoHS-compliant: yesCentring bushes are used for the precise positioning of workpieces or for absorbing lateral forces. They enable exact alignment and secure retention of the pins, ensure precise positioning and guidance of the dowel pins or are a space-saving alternative to dowel pins, as no additional holes are required for dowel pins.Normal form edges broken 0,1x45°.

From €3.65* incl. VAT

Details

Construction square tube | SM 1781

for pipe clamp connectorsMaterialAL: Aluminiumanodized, natural color NI: stainless steel 1.4301 / AISI 304plain finish,untreatedSaw cuts bright, deburred, i.e. not surface-treatedThe SM 1781 compression square tubes are available in standard lengths of 200, 500 and 1000 mm, depending on the diameter.2000 mm available on request.Can be combined with e.g. SM 1711 Pipe clamps, SM 1751 Base clamp holders, SM 1752 Base clamp holders, SM 1753... Cross and Parallel clamp holders, SM 1754-1 Swivel mounting clamps, SM 1755 Mounting bracket. RoHS compliant: yes

From €5.78* incl. VAT

Details

SCHOLZ MECHANIK - We have the right solution

From conception to production, we focus on innovation and quality to meet the requirements of our customers - and have been doing so since 1952. The SCHOLZ MECHANIK product range extends from standardized drill bushings to complex assemblies. Whether prototype development or series production with VMI service - we create tailor-made solutions for our customers with a high level of product and service quality.

As a medium-sized family business in its third generation, we can draw on extensive knowledge in the field of manufacturing technologies and offer our customers the best possible results thanks to lean company structures and motivated employees.

We look forward to getting to know you too!

Learn more about:

Quality and service philosophy
Environmental protection
Company structure and our history
Our locations
Social commitment

Click here for more information

News

Paris Air Show 2025: Mayor Peter Tschentscher at SCHOLZ MECHANIK GmbH

From 16 to 22 June 2025, we exhibited at the world's largest aviation trade fair, the Paris Air Show. Together with the German Pavilion of BDLI and Hamburg Aviation, we presented our expertise in the manufacture of high-precision mechanical components for the aviation industry.

14th Aviation Forum Munich

We look back on a successful and inspiring participation in the Aviation Forum Munich 2024. As an exhibitor, we had the great opportunity to present our expertise and products to a wide audience from the aviation industry.

Senatorin Dr. Melanie Leonhard zu Besuch bei SCHOLZ MECHANIK GmbH!

Heute hatten wir die besondere Ehre, die Senatorin für Wirtschaft und Innovation, Frau Dr. Melanie Leonhard , bei uns im Hause der SCHOLZ MECHANIK GmbH begrüßen zu dürfen. Sie hat sich persönlich von dem innovativen Konzept des OpenLab Mobile überzeugen können, das aktuell bei uns am Standort in Hamburg-Hausbruch im Einsatz ist.

Umweltpartnerschaft 2024

Stolz dürfen wir verkünden, dass die SCHOLZ MECHANIK GmbH erneut von der Stadt Hamburg mit der Umweltpartnerschaft ausgezeichnet wurde!

Zukunftstag 2024 - Girls- and Boysday

Wieder einmal war es soweit und interessierte Mädchen und Jungen konnten sich einen Eindruck von den vielfältigen Aufgaben verschaffen, die es bei uns gibt.

Auftritt 66. Hamburg Aviation Forum - Take Off for Quality

Als eine Plattform für führende Köpfe der Luftfahrtindustrie bot dieses Forum eine inspirierende Gelegenheit zum Austausch von Ideen und zur Diskussion zukunftsweisender Entwicklungen im Bereich Qualitätsmanagement.

We pack in grass - the new sustainable packaging

As an active environmental partner of the Hanseatic City of Hamburg, we have taken a further step to reduce our ecological footprint and protect our resources at the same time.

65. Hamburg Aviation Forum - SCHOLZ MECHANIK im Rampenlicht

Das Thema REACh beschäftigt uns als Luftfahrt-Zulieferer in diesen Monaten mehr denn je - nicht zuletzt, weil für einen erfolgreichen Ramp-Up in den kommenden Jahren eine frühzeitige und verlässliche Planungsperspektive für die gesamte Lieferkette unabdingbar ist.

Sommerfest 2023 bei SCHOLZ MECHANIK: Ein gelungener Tag voller Spaß, Sonne und guter Laune!

Click here for our archived blog posts

Are you a team player, highly motivated and tech-savvy? Then you've come to the right place!

In addition to modern technology, team spirit and a passion for the job, we support our employees and invest in their future. As a recognized training company, we have also been introducing young people to both commercial and industrial professions for decades and always try to be one step ahead of the constantly changing times.

Whether you are looking for an apprenticeship, part-time or full-time position - you can find all current job vacancies in this section or under Careers in the navigation bar. You can also find out how to apply to us in this section. We look forward to receiving your application!

Vacancies...

Apply now!
