Ball knob, metall - DIN 319 | SM 1265

SCHOLZ MECHANIK GmbH

Variants table
Diameter	Form	Material	d1 / d2	Product number	Unit price	Buy

Product information "Ball knob, metall - DIN 319 | SM 1265"

Ball knob, metal DIN 319

Material:
ST: steel polished
AL: Aluminium polished
NI: stainless steel 1.4305, matt, shot-blasted

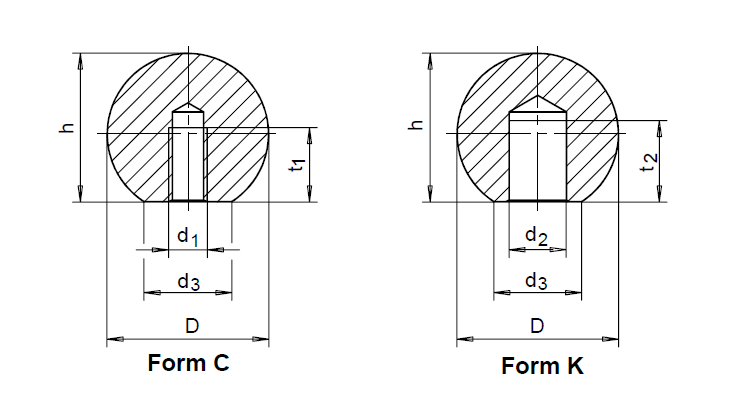

Form C: with thread, without bush
Form K: with hole H7

Ball knobs DIN 319 made of steel, aluminium and stainless steel are not on the official DIN standard sheet.

RoHS-compliant: yes

Compliance:	RoHS compliant
DIN / ISO:	DiN 319
Material:	Aluminium, Knob / Handle: Aluminum, Knob / Handle: Stainless Steel, Knob / Handle: Steel, Stainless steel, Steel
Speciality:	With bore hole, With internal thread, with plain blind hole, with threaded blind hole
Surface:	Stainless steel - matt blasted, polished
Type of use:	Ball knobs, Grips, Knobs

Ähnliche Artikel

Revolving ball knob | SM 1265-02

plastic with internal thread Material:handle: plastic phenolic resin (PF) black, shiny finishtemperature resistant up to 110° Cshaft/spindle:ST: steel, zink plated, blue passivatedNI: stainless steel 1.4305/AISI 303, matt shot-blasted Use e.g. instead of rotating ball handles, where a "pulling action" is involved such as on vertically positioned handwheels. RoHS-compliant: yes

From €6.18* incl. VAT

Details

Knob - HYGIENIC DESIGN | SM 1265-8

Knob, with threaded stud, stainless steelHYGIENIC DESIGN Material:knob: stainless steel 1.4404 (A4) AISI 316 Lsealing ring: hydrogenated acrylonitrile butadiene rubber (H-NBR) temperature resistant -25 °C to +150 °Chardness 85±5 Shore AFDA compliantblue PL: polished (Ra < 0,8 μm)MT: matte (Ra < 0,8 μm) Use in hygienic areas, sealed mounting surface enables mounting without dead spaces, high quality finish prevents adherence of dirt. RoHS-compliant: yes

From €19.71* incl. VAT

Details

Gear lever handle | SM 1266

Handle barMaterial:shaft: ST: steel, zinc plated, blue passivatedNI: stainless steel 1.4305 / AISI 303 matte shot-blasted (Form A and E)knob: KU: Plastic, phenolic resin (PF)black, shiny finishscrewed on Form A: ball knob SM 1265 Form D: domed gear knob SM 1265-2 Form E: cylindrical knob SM 1265-3The SM 1266 gear lever handles with various control knobs are used in many places for moving, switching and operating, e.g. for actuating hydraulic valves or as a control hub for a spiral eccentric. RoHS-compliant: yes

From €3.64* incl. VAT

Details

Ball knob, plastic - DIN 319 E | SM 1265 E

Ball knob, plastic DIN 319 E knobs screwd onForm E: with thread bush Material:knob: plasticthread bush:ST: steel, zinc platedMS: brass Colours: black, red other colours on request RoHS-compliant: yes

From €0.74* incl. VAT

Details

Revolving ball knob | SM 1265-1

plasticwith threaded stud Material:handle: plastic phenolic resin (PF) temperature resistant up to 110°Cblack, shiny finishthread stud/spindle:ST: steel, zink plated, blue passivatedNI: stainless steel 1.4305/AISI 303, matt shot-blasted threaded bolt with internal hexagon Revolving ball knobs SM 1265-1 can be utilized instead of revolving handles i. e. with handwheels. They have the same assembly dimensions as the handles SM 1220 (DIN 39), SM 1221 (DIN 98) and SM 1223. RoHS-compliant: yes

From €6.02* incl. VAT

Details

Domed gear knob | SM 1265-2

made of plasticMaterial: plastic, phenolic resin (PF)with threadOperating temperature -20°C to +110 °Cblack, shiny finishThese ergonomically shaped shift knobs are often used instead of SM 1265 ball knobs on shift levers, shift rods, etc. RoHS compliant: yes

From €2.11* incl. VAT

Details

Knob - HYGIENIC DESIGN | SM 1265-7

Knob, with female thread, stainless steelHYGIENIC DESIGN Material:knob: stainless steel 1.4404 (A4) AISI 316 Lsealing ring: hydrogenated acrylonitrilebutadiene rubber (H-NBR) temperature resistant -25 °C to +150 °Chardness 85±5 Shore AFDA compliantblue PL: polished (Ra < 0,8 μm)MT: matte (Ra < 0,8 μm) These knobs from stainless steel are designed for use in hygienic areas. The sealed mounting surface enables mounting without dead spaces. The high quality finish prevents adherence of dirt and facilitate cleaning. RoHS-compliant: yes

From €18.43* incl. VAT

Details

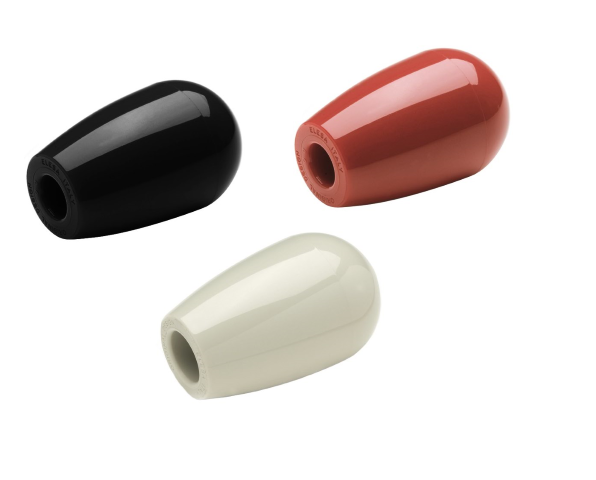

Domed gear knob | SM 1265-5
