Compensating tensioner | SM 1089

SCHOLZ MECHANIK GmbH

from €296.17*

€296.17*

Prices incl. VAT plus shipping costs

Available in 5 days

Delivery time: See variant in the table

This product is available in 5 versions.

Show all variants

Length 1

075

150

170

300

387

Width 3

08,5

13,0

17,0

25,0

Product number: 30597

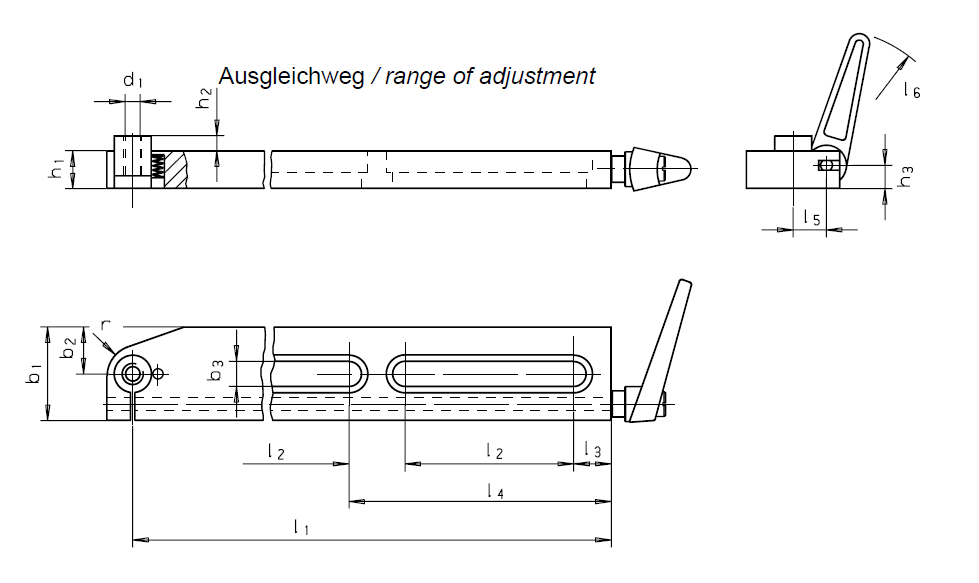

Description Datasheet

Length 1	Width 3	Product number	Unit price	Buy

Product information "Compensating tensioner | SM 1089 "

Material:
clamp: steel, case-hardened, blackened, ground
handle: zinc die-cast

The supporting pin is applied with spring pressure to the workpiece,
thus preventing chattering or receeding.
Additional support to a 3-point fixed support,
without the need to reach underneath the workpiece.
Threaded studs respectively leveling pads can be screwed into the internal thread of the supporting pin in order to adjust the height.

RoHS-compliant: yes

Colour:	red handle
Material:	Lever: Zinc die casting, Steel
Surface:	Steel - burnished
Type:	Levers and tensioners
