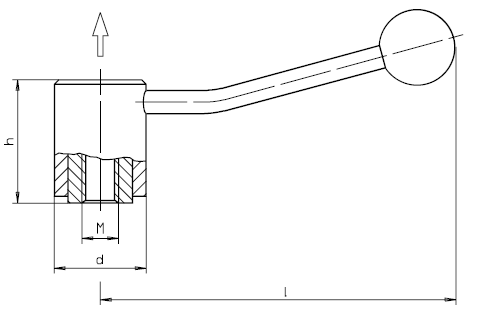

Detent clamping lever | SM 1087

SCHOLZ MECHANIK GmbH

from €104.61*

€104.61*

Prices incl. VAT plus shipping costs

Available in 5 days

This product is available in 2 versions.

Size

M12

M16

To create an offer for this item, please add it to your shopping cart. From there you can create the quote with all the necessary details.

Product number: 2946

Description Datasheet

Variants table
Size	Product number	Unit price	Buy

Product information "Detent clamping lever | SM 1087 "

Material:
steel
blackened

The clamping lever replaces the screw wrench and is advantageous if changed often and quickly needs when clamping.
Suitable for adjustable clamps SM 1083 and SM 1084.

RoHS-compliant: yes

Material:	Steel
Surface:	Steel - burnished
Type:	Levers and tensioners
