Cylindrical stop | SM 1138

from €77.92*

€77.92*

Prices incl. VAT plus shipping costs

Delivery time: 1-3 days working days

Delivery time: 1-3 days working days

This product is available in 14 versions.
Length 1
Width
To create an offer for this item, please add it to your shopping cart. From there you can create the quote with all the necessary details.
Product number: 4434

Description Datasheet
Filter

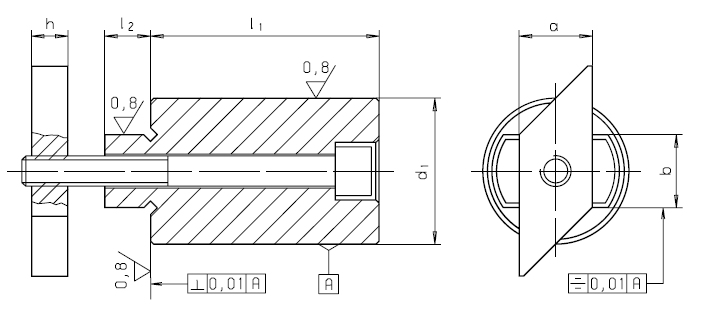

Product information "Cylindrical stop | SM 1138 "

Stop piece

Material:
cylindrical stop: steel, case hardened and ground
holding plate: steel, blackened

The straight guide enables a quick and precise location of the workpiece.
The short form, which is ground to a height tolerance of ± 0,01 mm,
can also be used as a seating.

RoHS-compliant: yes

Material: Steel
Type: T-Slot Nuts and Accessories

Zubehör

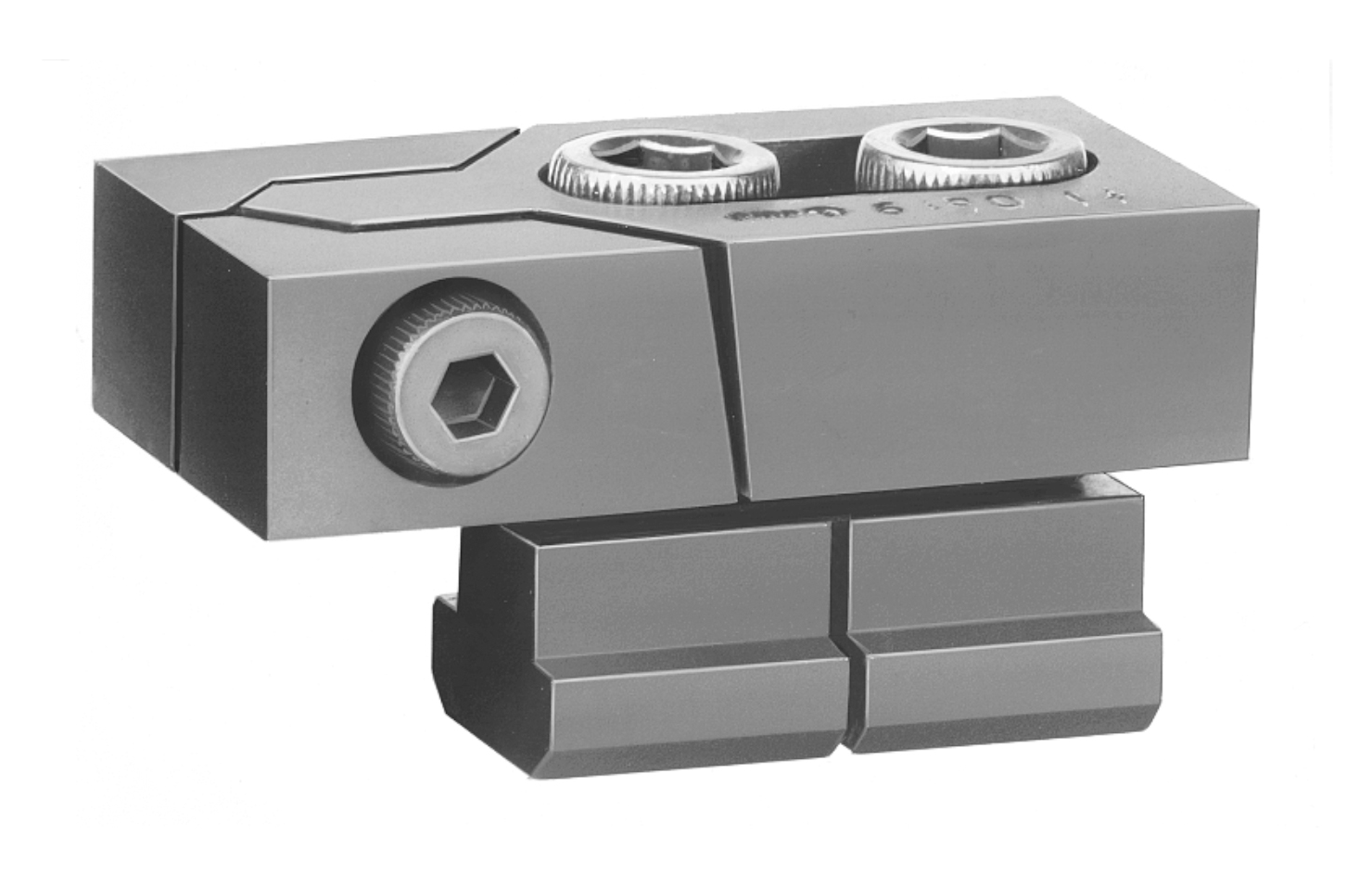

Low-height clamp "Bulle" | SM 1084-2
Low-height clamp "Bulle" | SM 1084-2
Diameter: M20 | Groove a: 22,00
only in pairs deliverable Material: steel, heat-treatedblackened incl. screws ISO 4762 (10.9),nuts for t-slots  DIN 508 andscrew key ISO 2936 The specified clamping forces are achieved with optimum design of the fastening screws and utilization of the maximum permissible torque. The hardened and tempered jaws clamp simultaneously forwards and downwards due to the wedge effect.Simple operation. Horizontal clamping screws. Maximum possible horizontal and vertical clamping force. RoHS-compliant: yes

Variants from €174.13* incl. VAT
€445.73* incl. VAT
Details
Groove scraper | SM 1105-1
Groove scraper | SM 1105-1
Groove scraper Material: steel, handle plastic (sizes 22 - 32; 36 - 54) RoHS-compliant: yes

From €7.47* incl. VAT
Details
