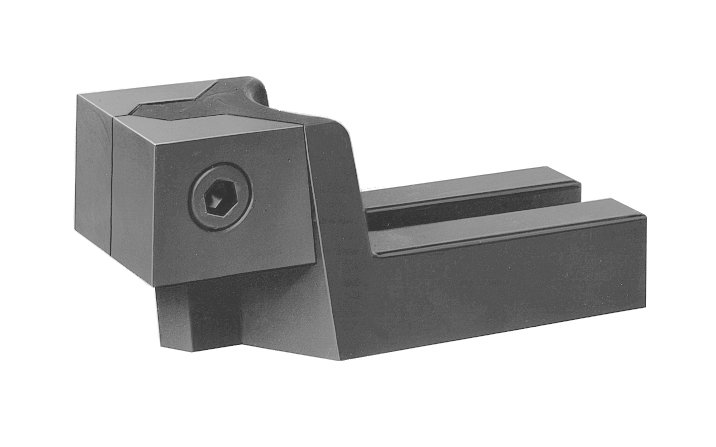

Low-height clamp "Bulle" | SM 1084-2

SCHOLZ MECHANIK GmbH

Diameter	Groove a	Product number	Unit price	Buy

Product information "Low-height clamp "Bulle" | SM 1084-2 "

only in pairs deliverable

Material:
steel, heat-treated
blackened

incl. screws ISO 4762 (10.9),
nuts for t-slots DIN 508 and
screw key ISO 2936

The specified clamping forces are achieved with optimum design of the fastening screws and utilization of the maximum permissible torque. The hardened and tempered jaws clamp simultaneously forwards and downwards due to the wedge effect.
Simple operation.
Horizontal clamping screws.
Maximum possible horizontal and vertical clamping force.

RoHS-compliant: yes

Material:	Quenched and tempered steel
Type:	Mechanical clamping elements

Accessory Items

Hexagon key - DIN 911D / ISO 2936D | SM 2289

Hexagon key (metric) DIN 911D / ISO 2936D Material: Chrom-Vanadiumhardened and nickelcoatedend face machinededges of end face chamfered. RoHS-compliant: yes

From €0.57* incl. VAT

Details

Similar Items

Flat clamp "Mini-Bulle" | SM 1084-1

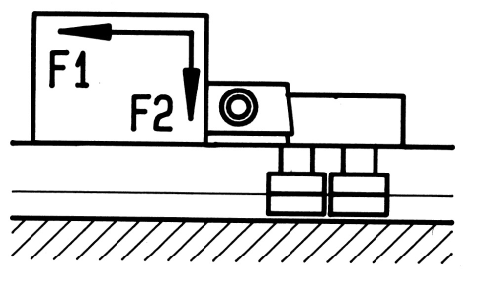

only in pairs deliverable Material: steel, heat-treated blackenedincl. screws DIN 912 (8.8) and screw key DIN 911 RoHS-compliant: yes For clamping particularly low workpieces.The wedge effect of the clamping jaws presses the workpiece firmly and securely onto the machine table. The horizontal forces are absorbed by a screw corresponding to the groove size, which clamps the clamp perfectly without damaging the table.The specified clamping forces are achieved with optimum design of the fastening screws and utilization of the maximum permissible torque.The pull-down force F2 is achieved with a smooth workpiece surface.h1: At maximum T-slot depth according to DIN 650.To achieve lower clamping heights with minimum T-slot depth, the clamping piece can be ground down by x mm.

From €156.59* incl. VAT

Details

Low-height clamp "Maxi-Bulle" | SM 1084-3

only in pairs deliverable Material: steelbody: nodular cast ironclamping jaws: heat-treated and blackened incl. screw keyISO 2936,without screws or bolts The clamping jaws "Maxi-Bulle" for work on larger heights, The wedge faces of these clamps are skilfully arranged to achieve maximum clamping force with low exertion. For fastening, 2 T-slot bolts DIN 787 for each clamping jaw, according to T-slot size in use, should be ordered separately. For clamping use T-bolts SM 1105. RoHS-compliant: yes

From €385.94* incl. VAT

Details
