Distance bushing | SM 1273-6
from €0.42*
€0.43*
Available in 5 days
Delivery time: 1-3 days working days
This product is available in 47 versions.
Product information "Distance bushing | SM 1273-6 "
Spacer ring
for indexing plungers
Material:
NI: stainless steel
1.4305 / AISI 303
Distance bushings SM 1273-6 compensate for the body thread lengths
on the indexing plungers and cam action indexing plungers
a to allow mounting through walls of varying thickness.
Other dimensions and forms see SM 1000-03.
RoHS-compliant: yes
| Compliance: | RoHS compliant |
|---|---|
| Material: | Stainless steel |
| Surface: | Stainless steel - bright |
| Type of use: | Bushings, Indexing plunger / indexing pin, Spacer |
Accessories
Indexing plunger | SM 1271
€16.07*
incl. VAT
Diameter 2:
M10x1,0
|
Form:
AKNN
Stop bolt with hexagon collar with or without rest position
Material: ST: steel, blackenedplunger pin hardened knob: not removable KU: plastic (Polyamide PA) black, matt finishNI: stainless steel, 1.4305 / AISI 303plunger chemically nickel platedknob: not removableKU: plastic (Polyamide PA) black, matt finish NI: stainless steel / AISI 303Compression spring: stainless steel 1.4310Lock nut ISO 8675: stainless steel A2
Form A: steel, without rest position, without lock nut, with knob KUForm AK: steel, without rest position, with lock nut, with knob KUForm AN: stainless steel, without rest position, without lock nut, knob KUForm AKN: stainless steel, without rest position, with lock nut, knob KUForm ANN: stainless steel, without rest position, without lock nut, knob NIForm AKNN: stainless steel, without rest position, with lock nut, with knob NI
Form B: steel, with rest position, without lock nut, with knob KUForm BK: steel, with rest position, with lock nut, with knob KUForm BN: stainless steel, with rest position, without lock nut, with knob KUForm BKN: stainless steel, with rest position, with lock nut, with knob KUForm BNN: stainless steel, with rest position, without lock nut, knob NIForm BKNN: stainless steel, with rest position, with lock nut, knob NI
Form G: steel, without rest position, without lock nut, with threaded rodForm GK: steel, without rest position, with lock nut, with threaded rodForm GN: stainless steel, without rest position, without lock nut, with threaded rodForm GKN: stainless steel, without rest position, with lock nut, with threaded rod
The SM 1271 locking pins with threaded studs (form G or GK) are used when the locking pin is not operated with the standard knob.The indexing plungers are designed such that the plunger set in the end position can also absorb axial forces.Distance bushings see SM 1273-6.
RoHS-compliant: yes
Variants from €7.38*
incl. VAT
Indexing plunger | SM 1271-1
€6.45*
incl. VAT
Diameter 1:
06,00
|
Diameter 2:
M12X1.5
|
Form:
C
|
Material:
NI
Stop boltwith ring or knobwith or without rest position
Material: ST: threaded body: steel, zinc plated, blue passivatedplunger pin: stainless steel, 1.4305 / AISI 303knob:not removableKU: plastic (Polyamide PA) black, matt finishpressure spring: stainless steel 1.4310 / AISI 301lifting ring / wire loop: stainless steel 1.4310 / AISI 301
NI: threaded body: stainless steel, 1.4305 / AISI 303plunger pin: stainless steel, 1.4305 / AISI 303knob:
not removable
KU: plastic (Polyamide PA) black, matt finish
pressure spring: stainless steel 1.4310 / AISI 301
lifting ring / wire loop: stainless steel 1.4310 / AISI 301
Form A: without lock nut, with ringForm AK: with lock nut, with ringForm B: without lock nut, with knobForm BK: with lock nut, with knobForm C: without lock nut, with rest positionForm CK: with lock nut, with rest position
This stop bolts are a range of low cost Indexing plungers which score highly on small dimensions. Knob not removable. Their use should, however be limited to such applications where high precision indexing is not required. For high precision use our indexing plungers SM 1271 or SM 1273 (with hardened plunger). Distance bushings see SM 1273-6.
RoHS-compliant: yes
Variants from €3.64*
incl. VAT
Indexing plunger | SM 1273-1
€9.29*
incl. VAT
Diameter 1:
06,00
|
Form:
A
Stop boltwithout threadfor weldingMaterial:ST: body / plunger pin: steel, blackened, welding qualityplunger pin: hardenedknob: not removableKU: plastic (Polyamide PA) black, matt finish
Form A: with knopForm G: with threaded stud
A special feature of indexing plungers SM 1273-1 are for applications where welding, resin bonding (loctite) or clamping is favoured. The Indexing plungers with threaded studs (form G) are used when the locking pin is not operated with the standard knob.The indexing plungers are designed in such a way that they can also absorb axial forces in the end position.
RoHS-compliant: yes
Variants from €8.00*
incl. VAT
Indexing plunger | SM 1273-2
€15.46*
incl. VAT
Diameter 2:
M12x1,5
|
Form:
AN
Stop boltfor screw-inwithout rest position
Material:ST: body / plunger pin: steel, blackenedplunger pin tip hardenedknob: not removableKU: plastic (Polyamide PA) black, matt finishpressure spring: stainless steel 1.4310 / AISI 302low lock nut SM 1291-123: steel, blackened
NI: body / plunger pin: stainless steel 1.4305 / AISI 303Locking pin chemically nickel-platedknob:not removableKU: plastic (Polyamide PA) black, matt finishpressure spring: stainless steel 1.4310 / AISI 302low lock nut SM 1291-123: stainless steel 1.4305 / AISI 303
Form A: steel, without lock nutForm AK: steel, with lock nutForm AN: stainless steel, without lock nutForm AKN: stainless steel, with lock nut
SM 1273-2 indexing plungers are characterized by their small dimensions. The very low lock nuts extend the mounting options.For spacer rings, see SM 1273-6.
RoHS-compliant: yes
Variants from €10.01*
incl. VAT
Indexing plunger | SM 1273-3
€14.03*
incl. VAT
Diameter 2:
M12x1,5
|
Form:
A
Stop boltwith rest position
Material:ST: body / plunger pin: steel, blackenedplunger pin tip hardenednnob: not removableKU: plastic (Polyamide PA) black, matt finishpressure spring: stainless steel 1.4310 / AISI 302low lock nut SM 1291-123: steel, blackenedNI: body / plunger pin: stainless steel 1.4305 / AISI 303locking pin chemically nickel-platedknob:not removableKU: plastic (Polyamide PA) black, matt finishpressure spring: stainless steel 1.4310 / AISI 302
low lock nut SM 1291-123: stainless steel 1.4305 / AISI 303
Form A: steel, without lock nut
Form
AK: steel, with lock nut
Form
AN: stainless steel, without lock nutForm AKN: stainless steel, with lock nut
These indexing plungers with detent lock are used when the detent pin should not protrude temporarily. To do this, the knob is rotated by 90° after the pin has been retracted. A detent notch allows the knob to be held in this position.The catch is integrated into the knob, so it always functions perfectly.The locking pins are characterized by their small dimensions.The very low lock nuts extend the mounting options.For spacer rings, see SM 1273-6.
RoHS-compliant: yes
Mini Indexing Plunger | SM 1273-31
€4.51*
incl. VAT
Colour:
Rot/red
|
Diameter 1:
04,00
|
Form:
C
|
Material:
Stahl,verzinkt/steel,zinc-plated

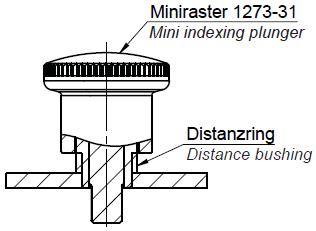

Indexing plungerwith and without rest positionMaterial:ST: guide: steel, zinc plated, blue passivatedplunger pin: stainless steel 1.4305 / AISI 303pressure spring: stainless steel 1.4310 / AISI 301knob:not removableKU: Plastic, polyamide (PA)Knob color:SW = black mattRT = red RAL 3000NI: guide: stainless steel 1.4305 / AISI 303plunger pin: stainless steel 1.4305 / AISI 303pressure spring: stainless steel 1.4310 / AISI 301knob:not removableKU: Plastic, polyamide (PA)knob color:SW = black matt RT = red RAL 3000Form B: without rest positionForm C: with rest positionSmallest dimensions, for fastening in thin walls.By lifting the knob, the hexagon is released for installation.With form C, the knob is pulled out, rotated by 30° and secured by the notch.For spacer rings, see SM 1273-6.RoHS-compliant: yes
Variants from €4.25*
incl. VAT
Indexing plunger | SM 1273-4
€14.40*
incl. VAT
Diameter 1:
08,00
|
Length 2:
08,00
|
Material:
Edelstahl/stainless_steel
with flange for surface mountingwithout rest position
Material:ST: guide: zinc die-cast, zinc plated, blue passivated
plunger pin: steel, hardened tipsingle components: steelknob: plastic, Polyamide (PA), black, matte finishnot removablepressure spring: stainless steel 1.4310 / 316Ti
NI: guide: zinc die-cast, zinc plated, blue passivatedplunger pin: stainless steel 1.4305 / AISI 303, chemically nickel-platedsingle components: stainless steelknob: plastic, Polyamide (PA), black, matte finish
not removablepressure spring: stainless steel 1.4310 / 316TiThe SM 1273-4 indexing plungers can be mounted easily and securely using a screw-on flangeand are used for quick and precise fixing of moving components or machine parts.They have a low height.The bolts without detent lock can be released directly and are therefore ideal for applications where frequent adjustments are required.
RoHS-compliant: yes
Variants from €8.79*
incl. VAT
Indexing plunger | SM 1273-5
€15.42*
incl. VAT
Diameter 1:
08,00
|
Length 2:
18,00
|
Material:
Edelstahl/stainless_steel
with flange for surface mountingwith rest position
Material:ST:guide: zinc die-cast, zinc plated, blue passivatedplunger pin: steel, hardened tipsingle components: steelknob: plastic, Polyamide (PA), black, matte finish not removablepressure spring: stainless steel 1.4310 / 316TiNI: guide: zinc die-cast, zinc plated, blue passivated plunger pin: stainless steel 1.4305 / AISI 303, chemically nickel-platedsingle components: stainless steelknob: plastic, Polyamide (PA), black, matte finishnot removablepressure spring: stainless steel 1.4310 / 316TiThe SM 1273-5 indexing plungers can be mounted easily and securely using a screw-on flangeand are used for quick and precise fixing of moving components or machine parts.They have a low overall height.They are used when the indexing pin should not protrude temporarily. After retracting the pin, the knob is rotated by 90°. The knob is held in this position by a notch. The catch is located in the knob.
RoHS compliant: yes
Variants from €9.48*
incl. VAT
Indexing plunger | SM 1273-50
€24.61*
incl. VAT
Diameter 1:
06,00
|
Form:
B
|
Length 1:
24,00
for screwing onwith precision positioningplunger pin cylindrical
Material:ST: steel, blackenedplunger pin: hardened, groundknob: plastic (polyamide PA)matt blacknot removable
Form B: without rest position
Form C: with rest position
, knob turned 90°
The SM 1273-50 indexing plungers together with SM 1002 positioning bushes similar to DIN 172 / DIN 179 enable precise positioning. The bushes are used to guide the bolt and for the detent hole. Longer guide lengths also increase precision.Design and assembly instructionsThere are two bolt lengths l1 for each indexing plunger Ø d1.The length l3 must ensure complete disengagement of the indexing plunger. The bushing length, plate thickness and any gap can be selected within certain limits.To accommodate the positioning bushes (outer Ø with tolerance n6), a locating bore with a tolerance of a locating bore with tolerance H7 is usually provided.
Form C with detent lock is used if the detent pin should not protrude temporarily. The knob is rotated by 90° after the locking pin has been retracted and held in this position by a locking notch.
RoHS-compliant: yes
