Eccentric lever with fulcrum pin

Diameter	Form	Material	Product number	Unit price	Buy

Product information "Eccentric lever | SM 1087-1 "

with fulcrum pin

Material:
eccentric part:
ST: steel, St. 52-3, zinc phosphated
NI: stainless steel (1.4301)
seeger circlip: stainless steel (1.4310)
grip: coverd with PVC, red
pin: stainless steel (1.4021), blackened

Version B: wide version with axle bolt SM 1087-2.

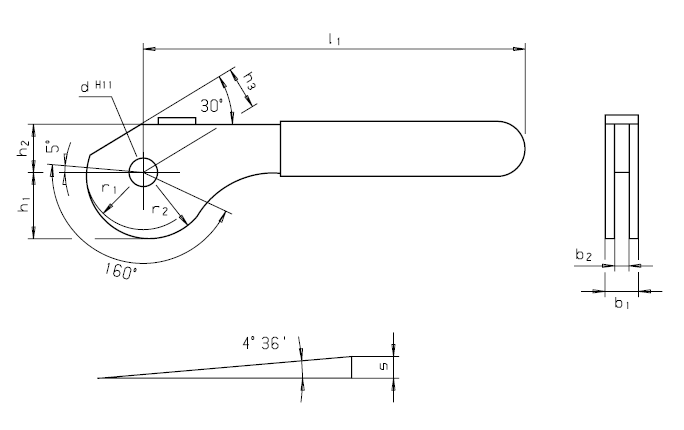

The eccentric levers have an eccentric clamping range of 160°.
Temperature resistance of the plastic coating is max. 60°C.

RoHS-compliant: yes

Colour:	red handle
Element type:	Clamping Levers with Eccentrical Cam
Material:	Stainless steel, Steel
Type:	Levers and tensioners

Ähnliche Artikel

Clamping lever | SM 1087-3

with eccentrical cam with internal threadMaterial: steel components: zinc plated, blue passivatedcontact plate: plastic, glass fibre reinforcedlever: zinc die castingpowder coated (abrasion proof epoxyresin)OR = orange, RAL 2004RS = red, RAL 3000SB = silver, RAL 9006SW = black, RAL 9005Form A: contact plate: POM (Polyactetal)Form B: contact plate: PA (Polyamid PA)lever: steelzinc plated, blue passivatedBL = blank (zinc plated)Form C: contact plate: POM (Polyactetal)Form D: contact plate: PA (Polyamid PA) Article information:Form A: adjustable contact plate with adjusting nutForm B: fix contct plate without adjusting nutForm C: adjustable contact plate with adjusting nut Form D: fix contct plate without adjusting nutFor fast clamping and releasing, torque-free via a thread. Clamping movement of the lever beyond the max. clamping force not possible. No loose individual parts, all elements are connected to each other in the correct position. The eccentric clamps with adjustable support disc form A+C offer adjustment of the distance between the lifting eccentric and the clamping surface via a fine thread, thus enabling simple adjustment of the clamping position with the maximum clamping force.RoHS-compliant: yes

From €6.79* incl. VAT

Details

Clamping lever | SM 1087-5

with eccentrical cam and internal thread Inner parts stainless steel Material:steel parts: stainless steel 1.4305contact plates: Technopolymer, glass fibre reinforcedlever: zinc die castingpowder coated, abrasion proof epoxyresinOR = orangeRS = redSB = silverSW = blackForm A: contact plate: POM (Polyactetal)Form B: contact plate: PA (Polyamid PA) contact plates: Technopolymer, glass fibre reinforcedlever: stainless steel 1.4308Form C: contact plate: POM (Polyactetal)Form D: contact plate: PA (Polyamid PA) contact plate: stainless steel 1.4057, hardenedlever: stainless steel 1.4308Form E: contact plate: stainless steelForm F: contact plate: stainless steel Article information:Form A: adjustable contact plate with adjusting nutForm B: fix contct plate without adjusting nutForm C: adjustable contact plate with adjusting nutForm D: fix contct plate without adjusting nutForm E: adjustable contact plate with adjusting nutForm F: fix contct plate without adjusting nut For quick clamping and releasing, torque-free via a thread. Clamping movement of the lever beyond the max. clamping force is not possible. No loose individual parts, all elements are connected to each other in the correct position.The eccentric clamps with adjustable support disc form A+C+E offer adjustment of the distance between the lifting eccentric and the clamping surface via a fine thread, thus enabling simple adjustment of the clamping position with the maximum clamping force. RoHS-compliant: yes

From €9.06* incl. VAT

Details

Eccentric lever | SM 1088-1

with end clamping Material: steel, hardened and burnished, lever plastic coated. Eccentric clamps are useful for dedicated fixtures. RoHS-compliant: yes

From €118.90* incl. VAT

Details

Eccentric lever | SM 1088-3

with middle clamping Material: steel hardened, burnished, lever plastic coated. Actuation by hand - hand force ~ 400 N RoHS-compliant: yes

From €151.39* incl. VAT

Details

Eccentric lever | SM 1088-5

with eye bolt Material: steel hardened, burnished, lever plastic coated. Part to SM 1088-3. RoHS-compliant: yes

From €94.21* incl. VAT

Details

Accessory Items

Fulcrum pin | SM 1087-2

for Eccentric levers SM 1087-1Material: NI: pin: stainless steel 1.4057 or similar, temperedseeger circlip: stainless steel (1.4122 or similar)A1: pin: stainless steel 1.4305, temperedseeger circlip: stainless steel (1.4122)ST: pin: steel, tempered, burnished, groundseeger circlip: steel For eccentric lever SM 1087-1.RoHS-compliant: yes

From €4.46* incl. VAT

Details
