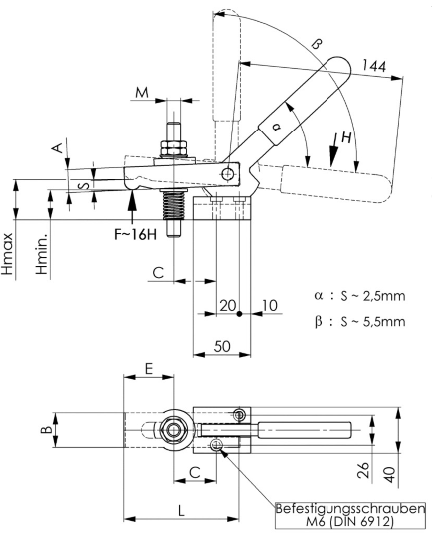

Eccentric lever | SM 1088-1

SCHOLZ MECHANIK GmbH

from €123.45*

€123.45*

Prices incl. VAT plus shipping costs

Available in 5 days

This product is available in 2 versions.

Size

01,00

02,00

To create an offer for this item, please add it to your shopping cart. From there you can create the quote with all the necessary details.

Product number: 2992

Description Datasheet

Variants table
Size	Product number	Unit price	Buy

Product information "Eccentric lever | SM 1088-1 "

with end clamping

Material:
steel, hardened and burnished,
lever plastic coated.

Eccentric clamps are useful for dedicated fixtures.

RoHS-compliant: yes

Colour:	red handle
Element type:	Clamping Levers with Eccentrical Cam
Material:	Steel
Surface:	Steel - burnished
Type:	Levers and tensioners
