Hand lever, adjustable | SM 1184

SCHOLZ MECHANIK GmbH

Colour	Diameter 1	Length 1	Material	Product number	Unit price	Buy

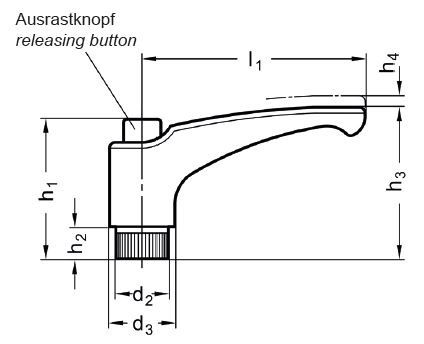

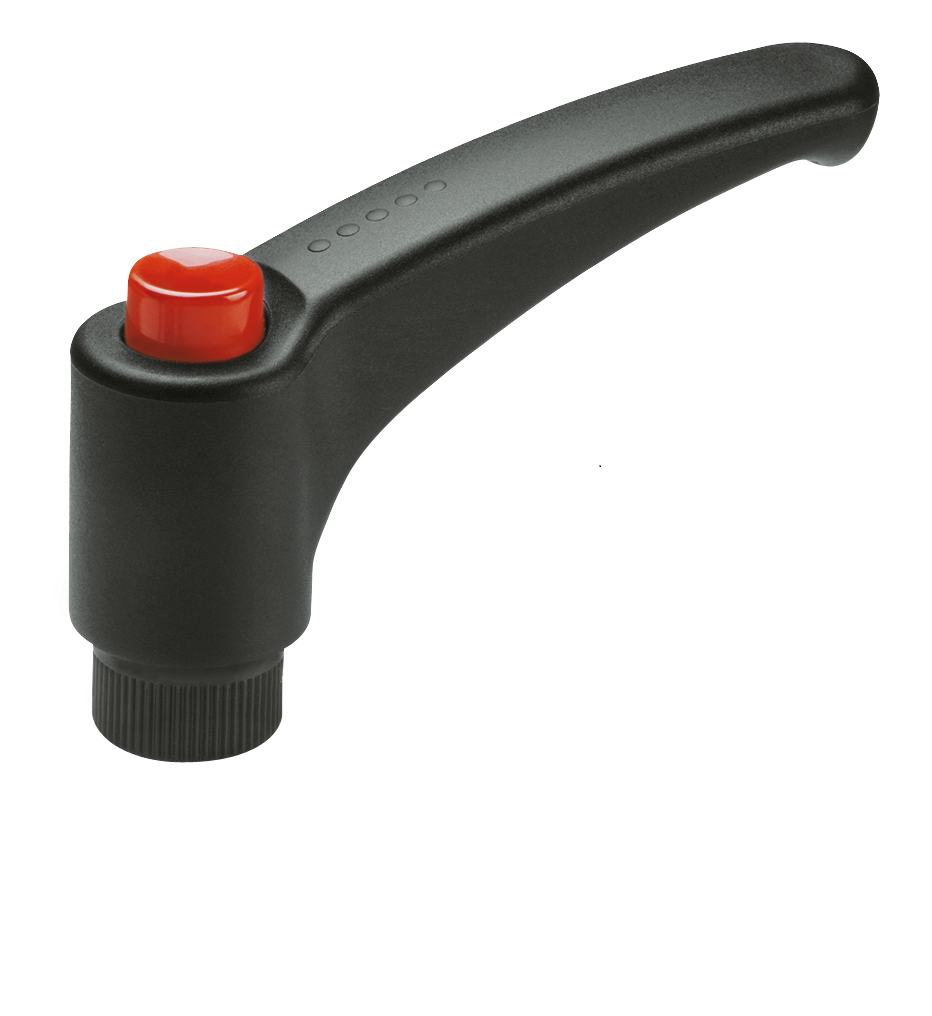

Product information "Hand lever, adjustable | SM 1184 "

with releasing button
with bushing

Material:
thread bush:
MS: brass
NI: 1.4305
embedded in glass fibre reinforced black plastic

handle: plasitc
Technopolymer (Polyamide PA)
glass fibre reinforced
temperature resistant up to 130° (chromed handle: 80°)
black-grey, matt, similar to RAL 7021
releasing button: plastic, shiny finish

colour of the button:
SG = black-grey RAL 7021
OR = orange RAL 2004
GR = grey RAL 7035
GB = yellow RAL 1021
GN = green RAL 6017
RT = red RAL 3000
BL = blue RAL 5024

CR = handle chrome plated, black button

Good handling due to curved shape and reinforcement at the end of the lever.
The clamping position can be changed by lifting the handle or pressing the release button.
The handle engages automatically when released.

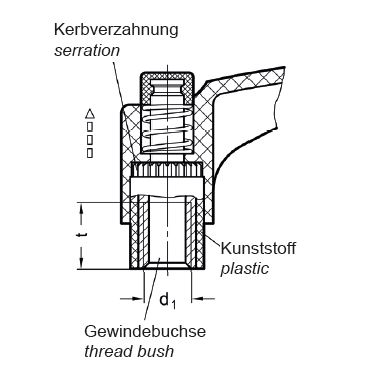

The threaded insert is detachably connected to the handle by a serration.
When the handle is disengaged, the threaded insert can also be screwed in with the help of the edge notch.

RoHS-compliant: yes

Colour:	Disengagement button: black, Disengagement button: black gray, Disengagement button: blue, Disengagement button: gray, Disengagement button: orange, Disengagement button: red, Disengagement button: yellow
Compliance:	RoHS compliant
Material:	Bushing/Screw: Stainless Steel, Bushing: brass, Lever: plastic, Plastic, Thermoplastic
Speciality:	Locking by self-locking, With internal thread, With releasing knob
Surface:	Stainless steel - bright, matte, verchromt
Type of use:	Clamping lever, Lever

Ähnliche Artikel

Hand lever, adjustable | SM 1180

with bushing Material: bushing / thread insert and screw:ST: steel, blackenedNI: stainless steel serrated ring: zinc die-casting handle: plasitc Technopolymer (Polyamide PA)glass fibre reinforced temperature resistant up to 130° CColor / surface: SG = black-grey, matt RAL 7021 OR = orange, matt RAL 2004Good handling of the lever due to slight curvature and reinforcement at the end of the lever. Lever adjustment by lifting the handle. The handle engages automatically when released. The threaded insert is detachably connected to the handle by a serration. RoHS-compliant: yes

From €3.78* incl. VAT

Details

Mini-hand lever | SM 1182

adjustablewith bushing Material:bushing / thread insert and retaining screw:ST: steel blackenedNI: stainless steel 1.4305handle: zinc die casting plastic coatedColors / finishes:RH = uncoatedCR = chrome-platedplastic coated:OR = orange RAL 2004RS = red textured inish RAL 3000SB = silver RAL 9006SW = black textured finish RAL 9005SZ = black silk finish RAL 9005 Good handling due to reinforcement at the end of the lever. Lever adjustment by lifting the handle. The handle engages automatically when released. Threaded insert detachably connected to handle by serration. RoHS-compliant: yes

From €4.19* incl. VAT

Details

Hand lever, adjustable | SM 1186

with bushingMaterial:thread insert and retaining screw:ST: steel blackenedNI: stainless steel 1.4305handle: zinc die casting Colors / surfaces:plastic coatedSW = black, textured finish RAL 9005OR = orange, textured finish RAL 2004By lifting the lever, the serrations are disengaged. The handle can be positioned by the serrations, and the threaded insert can be exchanged. Upon releasing the handle, the serrations are automatically reengaged. These adjustable hand levers are ideal whenever parts have to be clamped in a confined space or in a particular lever position.RoHS-compliant: yes

From €5.50* incl. VAT

Details

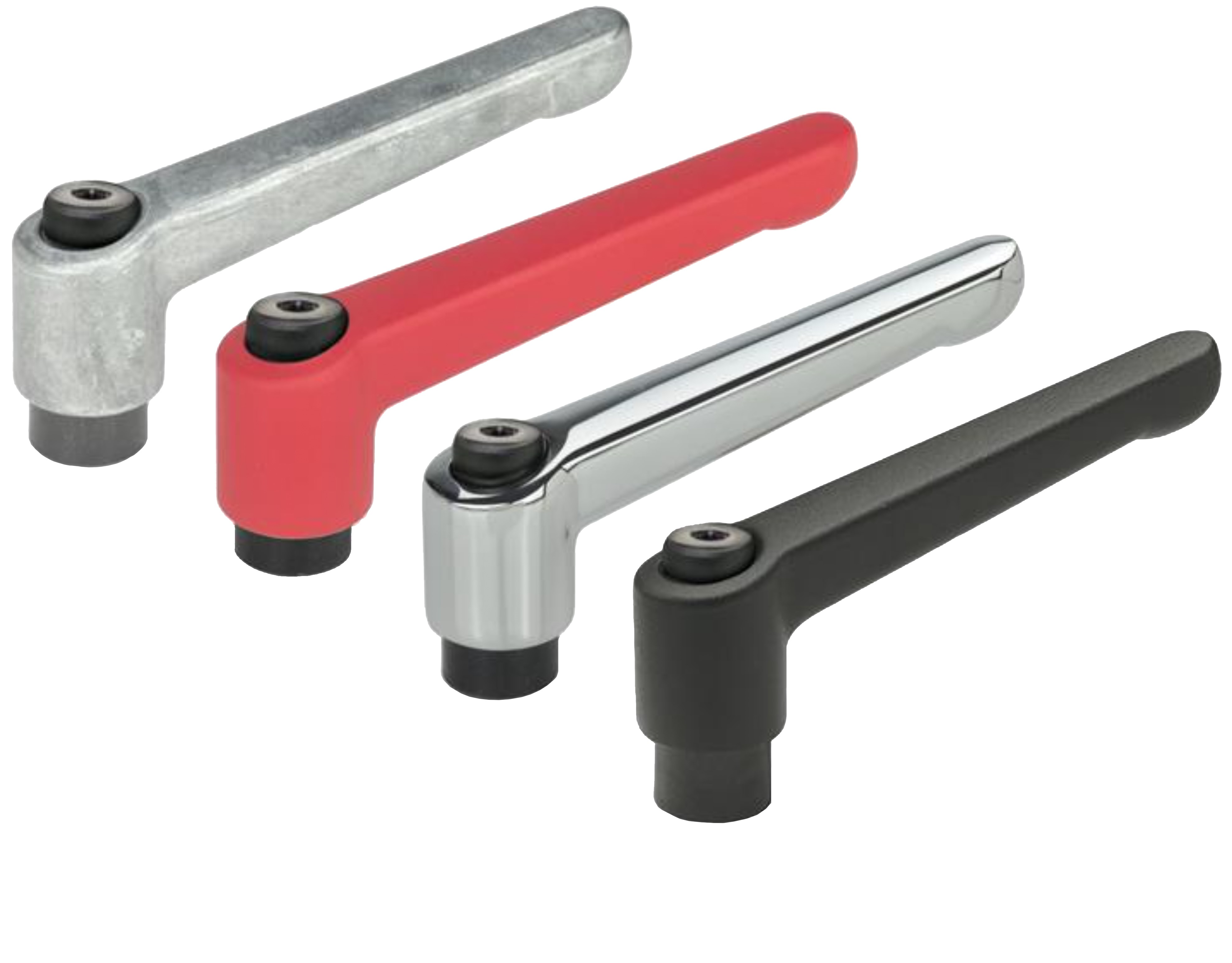

Hand lever, adjustable | SM 1189

with bushing Material:bushing and retaining screw: ST: steel, blackened handle: zinc die casting Colors / surfaces: CR = chrome-plated RH = uncoatedplastic coatedOR = orange RAL 2004RS = red textured finish RAL 3000SB = silver RAL 9006SW = black textured finish RAL 9005SZ = black silk finish RAL 9005 Good handling due to thickening at the end of the handle. Lever adjustment by pulling. The threaded insert is detachably connected to the handle by a serration. By lifting (pulling) the handle, the serration is released and the clamping lever can be swung into the most favorable clamping position. When released, the handle engages again automatically. For use with a limited clamping range or with a specific fixed clamping position.Bushing and retaining screw made of stainless steel (SM 1197). RoHS-compliant: yes

From €4.59* incl. VAT

Details

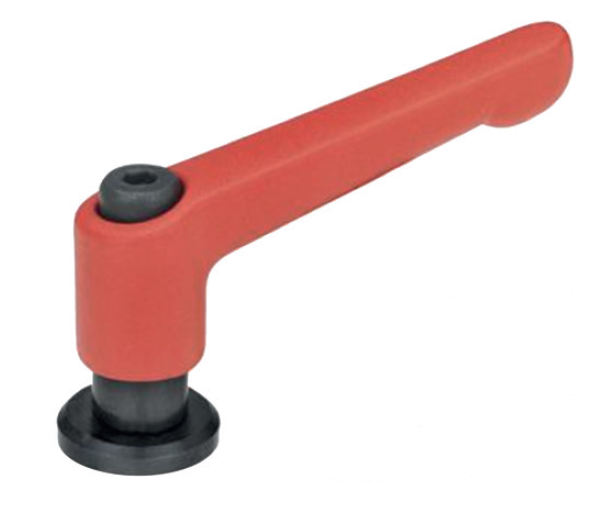

Hand lever, adjustable | SM 1189-1

clamping lever with bushing and washer Material: threaded bushing and retaining screw: steel, blackenedwasher: steel, case hardened, blackened handle: zinc die casting plastic coated Colors / surfaces:plastic coatedOR = orange textured finish RAL 2004RS = red textured finish RAL 3000SB = silver textured finish RAL 9006SW = black textured finish RAL 9005 Good handling due to thickening at the end of the handle. Lever adjustment by pulling. The threaded insert is detachably connected to the handle by a serration. By lifting (pulling) the handle, the serration is released and the clamping lever can be swung into the most favorable clamping position. When “released”, the handle engages again automatically. The support washer is captive, does not rotate when tightening and protects the clamping surface and protects the clamping surface from damage. A typical application is the use of clamping levers for slotted holes. RoHS-compliant: yes

From €10.38* incl. VAT

Details

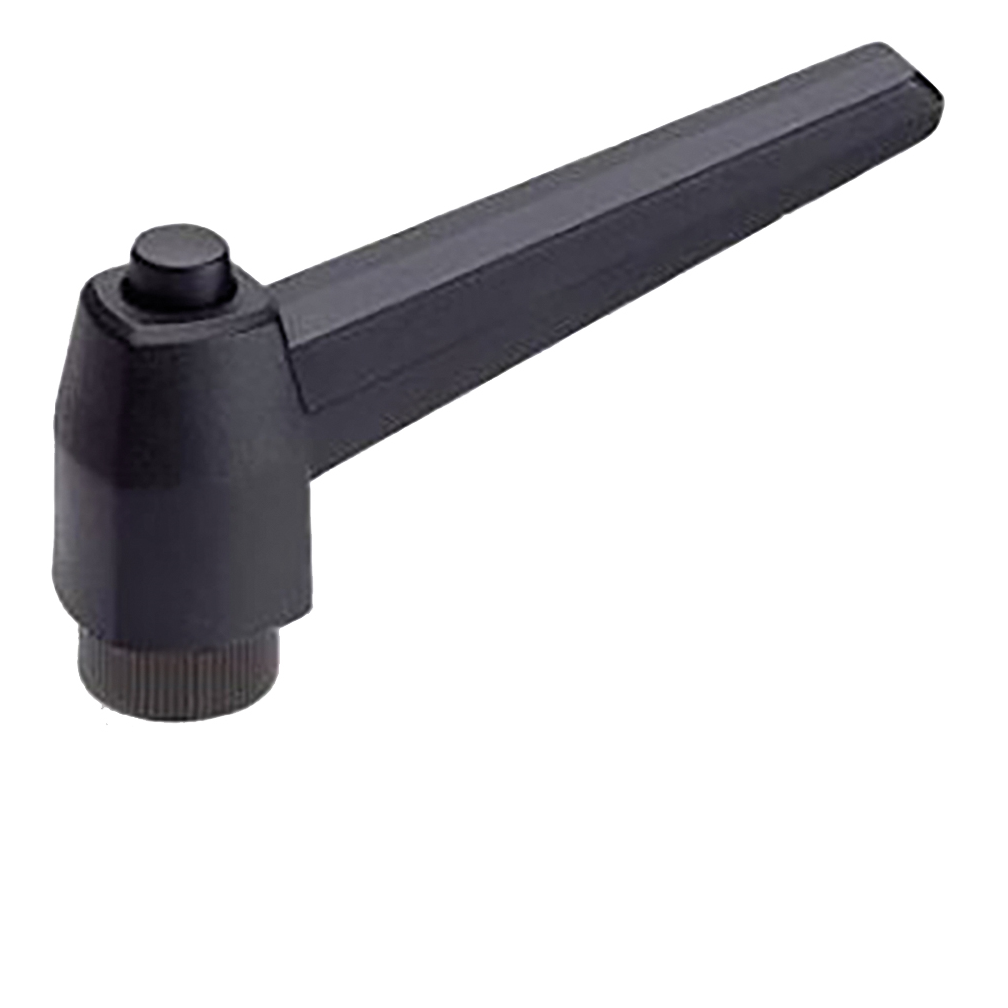

Hand lever, adjustable | SM 1190-1

with releasing button and with bushing Material:thread insert: brasshandle: plastic Technopolymer (Polyamide PA)glass fibre reinforcedtemperature resistant up to 120° Creleasing button: plastic, blackColor / surface:SW = black, matt RAL 9005 Lever adjustment by pulling or pushing.The screw insert is detachably connected to the handle by a serration.Lifting the handle releases the serration and the clamping lever can be swung into the most favorable clamping position.When “released”, the handle engages again automatically.The disengagement button enables effortless disengagement.Application with limited clamping range or for certain clamping positions or if it is not necessary to remove the lever when screwing in. RoHS-compliant: yes

From €3.20* incl. VAT

Details

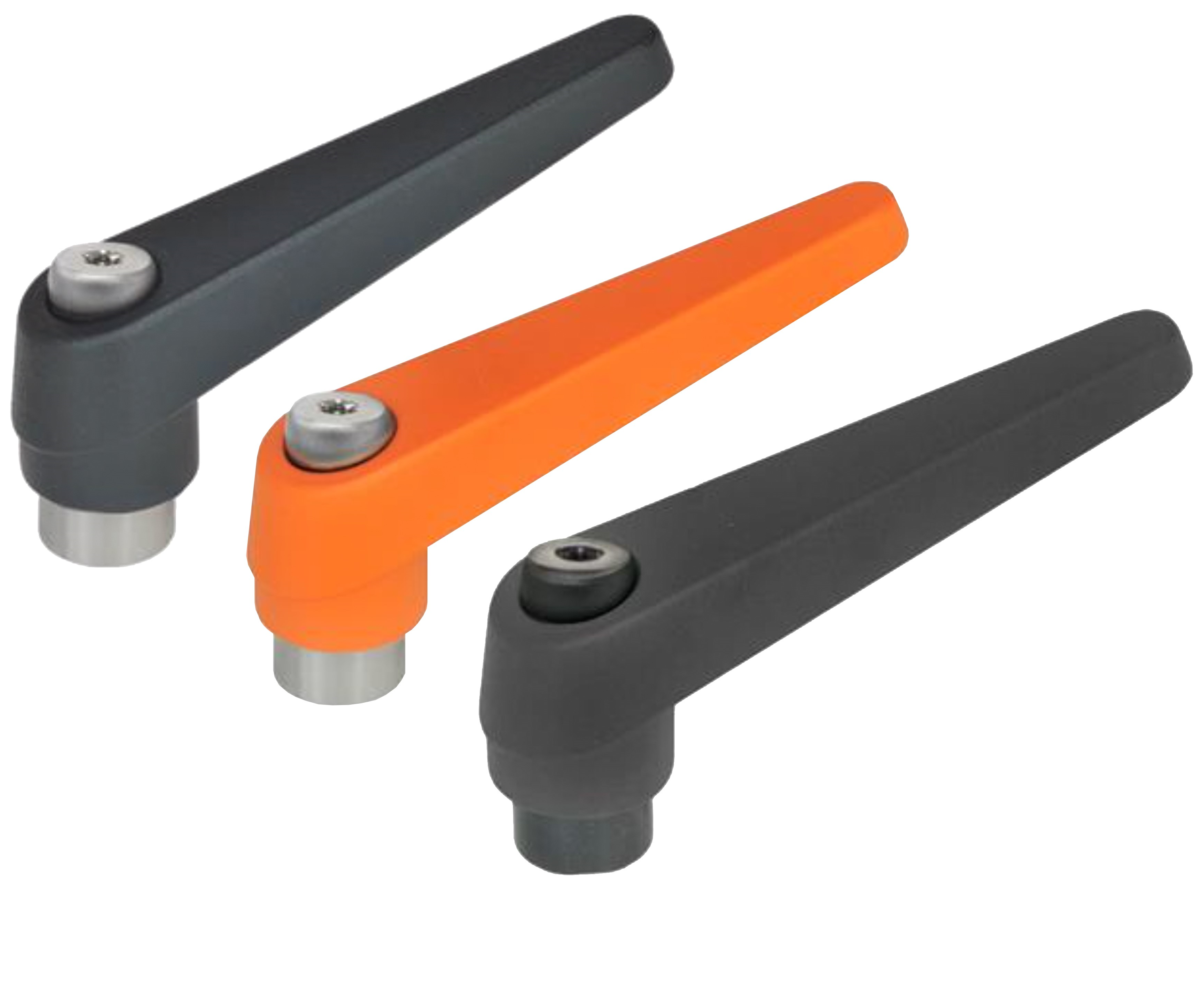

Hand lever, adjustable | SM 1192

Clamping leverwith threaded bush Material: threaded insert and retaining screw: steel, blackenedhandle: plastic Technopolymer (Polyamide PA)glass fibre reinforcedtemperature resistant up to 130° C Color / surface:SW = black, matt RAL 9005OR = orange, matt RAL 2004 Lever adjustment by pulling or pushing.The threaded insert is detachably connected to the handle by a serration.By lifting (pulling) the handle, the serration is released and the clamping lever can be pivoted to the most favorable clamping position.When released, the handle engages again automatically. Used for limited clamping ranges or for specific clamping positions.RoHS-compliance: yes

From €4.55* incl. VAT

Details

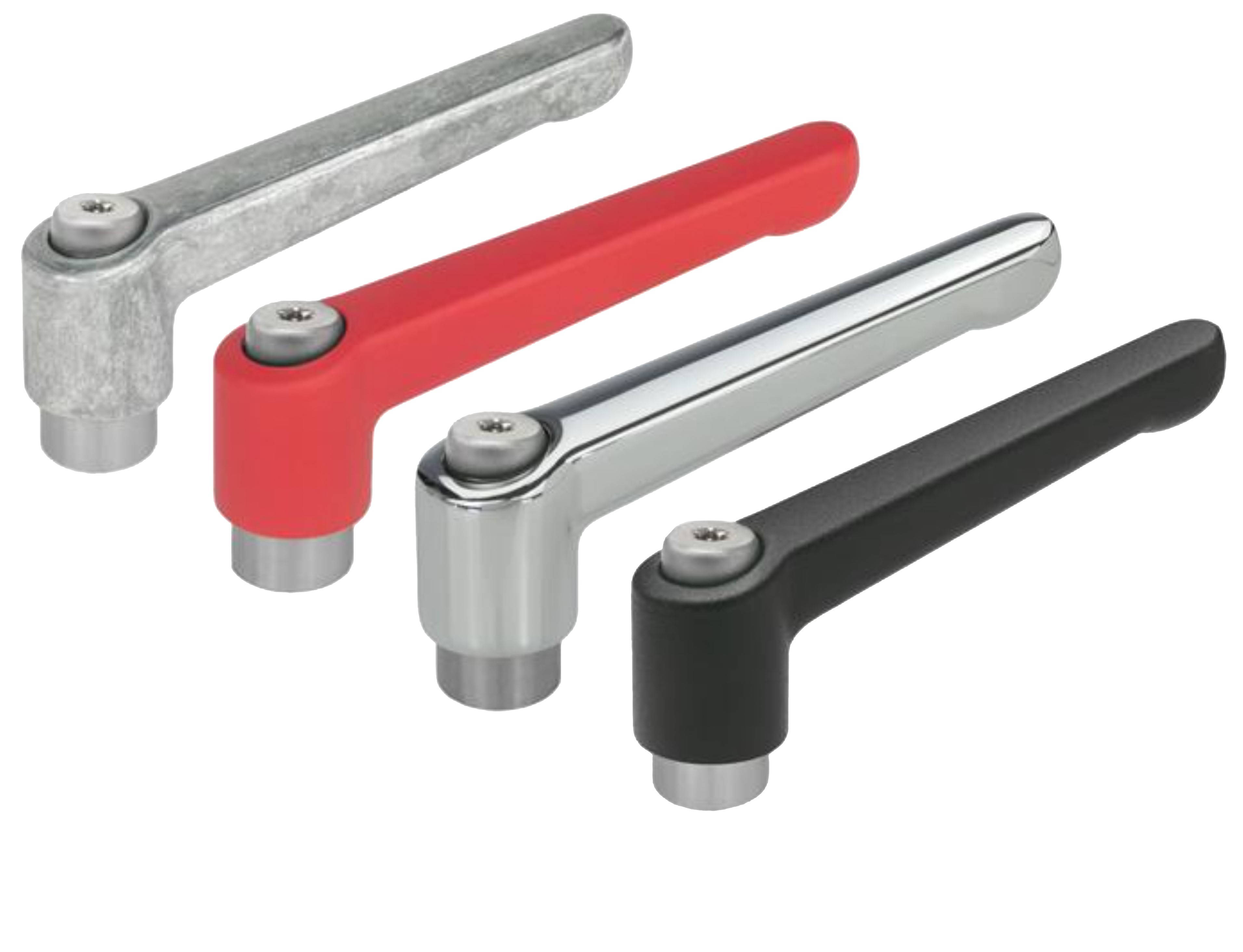

Hand lever, adjustable | SM 1198
