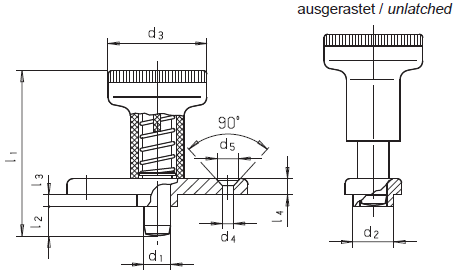

Indexing plunger with rest position | SM 1273-5

from €9.48*

€9.77*

Prices incl. VAT plus shipping costs

Delivery time: 1-3 days working days

Delivery time: See variant in the table
This product is available in 8 versions.
Show all variants
Diameter 1
Length 2
Material
Product number: 37714

Description Datasheet
Filter
Product information "Indexing plunger with rest position | SM 1273-5 "

Indexing plunger with rest position, screwable
Stop bolt, with locking device

Material:
zinc die casting
zinc plated, blue passivated

ST: plunger: steel hardened
single components: steel
NI: plunger: stainless steel 1.4305
chemically nickel plated
single components: stainless steel
knob: black plastic, matt finish, not removable

The locking tab is an integral part of the knob.

RoHS-compliant: yes

Compliance: RoHS compliant
Material: Bolt: Stainless steel, Bolt: steel, Knob / Handle: Plastic, Lever: Zinc die casting, Stainless steel, Steel, Thermoplastic
Speciality: With detent lock, With knurling, screwable, with knob / handle
Surface: Zinc die casting - galvanized
Type of use: Bolt, Indexing plunger / indexing pin

Zubehör

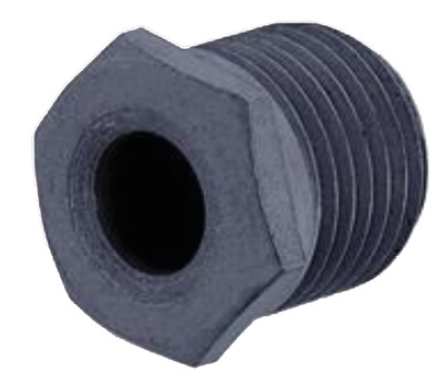

Positioning bushing | SM 1273-56
Positioning bushing | SM 1273-56
with hexagonal collarfor indexing plungers / cam action indexing plungers Material:ST: steelhardened, blackenedNI: stainless steel 1.4057 / AISI 431hardened Positioning bushings SM 1273-56 are used in connection with bolts of indexing plungers.The threads are adapted to the mounting blocks SM 1274-1 and SM 1274-10. RoHS-compliant: yes

From €3.08* incl. VAT
Details

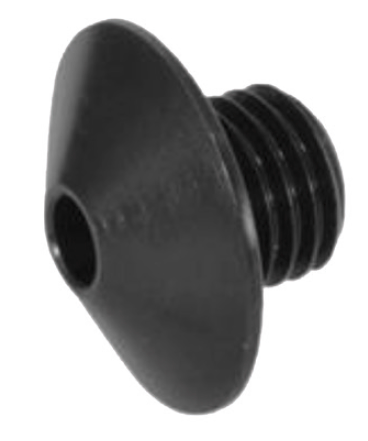

Positioning bushing | SM 1273-57
