Indexing plunger to screw on | SM 1273-39

SCHOLZ MECHANIK GmbH

Diameter 1	Length 1	Material / Colour	Product number	Unit price	Buy

Product information "Indexing plunger to screw on | SM 1273-39"

Indexing plunger to screw on
with screw-on flange

Material:
Guide: steel precision casting
ZB: zinc plated, blue passivated

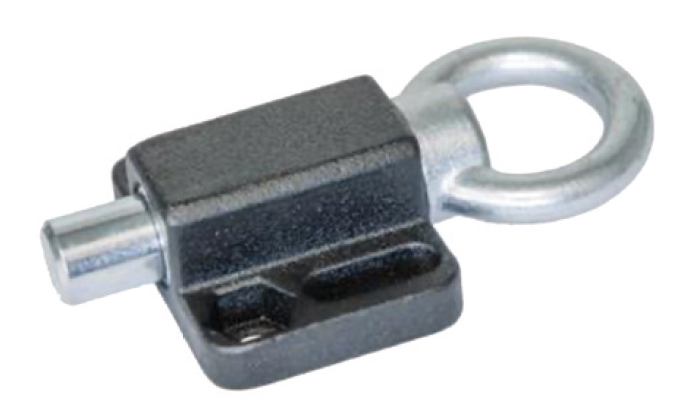

SW: zinc plated and plastic coated, black, RAL 9005, textured finish
plunger pin / pull ring: steel, zinc plated, blue passivated
spring: stainless steel AISI 316Ti
grub screw DIN 915: steel, zinc plated

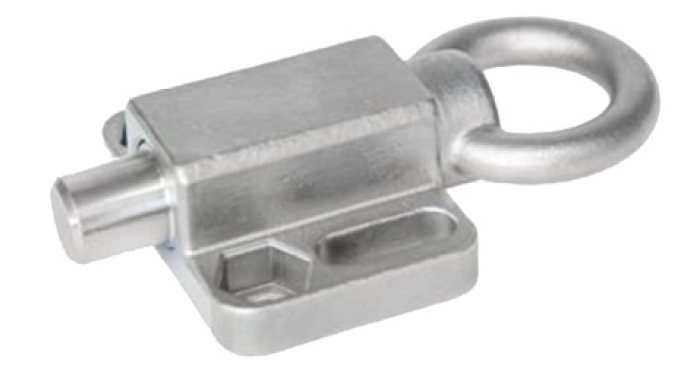

NI: guide / pull ring: stainless steel precision casting AISI 316
plunger pin: stainless steel, AISI 316
spring: stainless steel AISI 316Ti
grub screw DIN 915: stainless steel A4

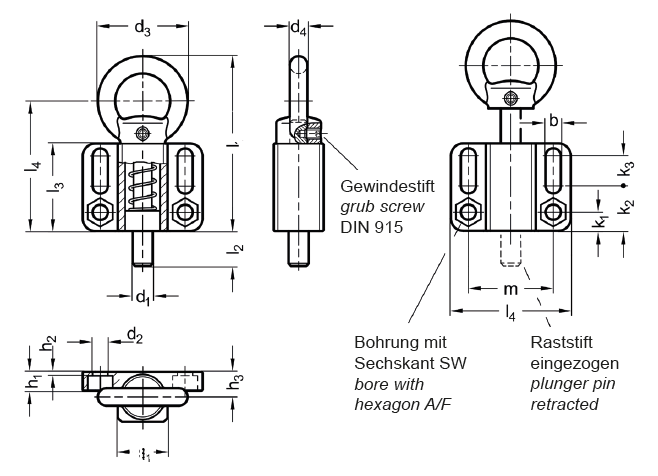

with fl ange for surface mounting, parallel to the plunger pin:
With indexing plungers SM 1273-39, the plunger pin is actuated via the pull ring.
This is done either manually, with a cable or by means of an extended pull rod with hook.
The ZB and SW versions are designed for applications in steel construction.
The dimensional tolerances between the pin and the guide have been chosen to ensure
functional reliability even in roughly dimensioned applications or in the event of soiling.
For fastening, slotted or hexagonal mounting holes allow the use of socket cap screws DIN 912
and hexagon screws or nuts according to DIN 931 or DIN 934.

RoHS-compliant: yes

Compliance:	RoHS compliant
Material:	Body: stainless steel, Body: steel
Speciality:	With pull ring, screwable
Surface:	Stainless steel - bright, Steel - galvanized, plastic coated, Steel - zinc plated
Type of use:	Bolt, Indexing plunger / indexing pin
