Locating pin | SM 1020-2
from €4.59*
€5.22*
Delivery time: 1-3 days working days
Delivery time: See variant in the table
This product is available in 7 versions.
Product information "Locating pin | SM 1020-2"
cylindrical
for positioning bushings DIN 172 / DIN 179
Material: steel
hardened, ground
Hardness: ≈ HRC 62+4

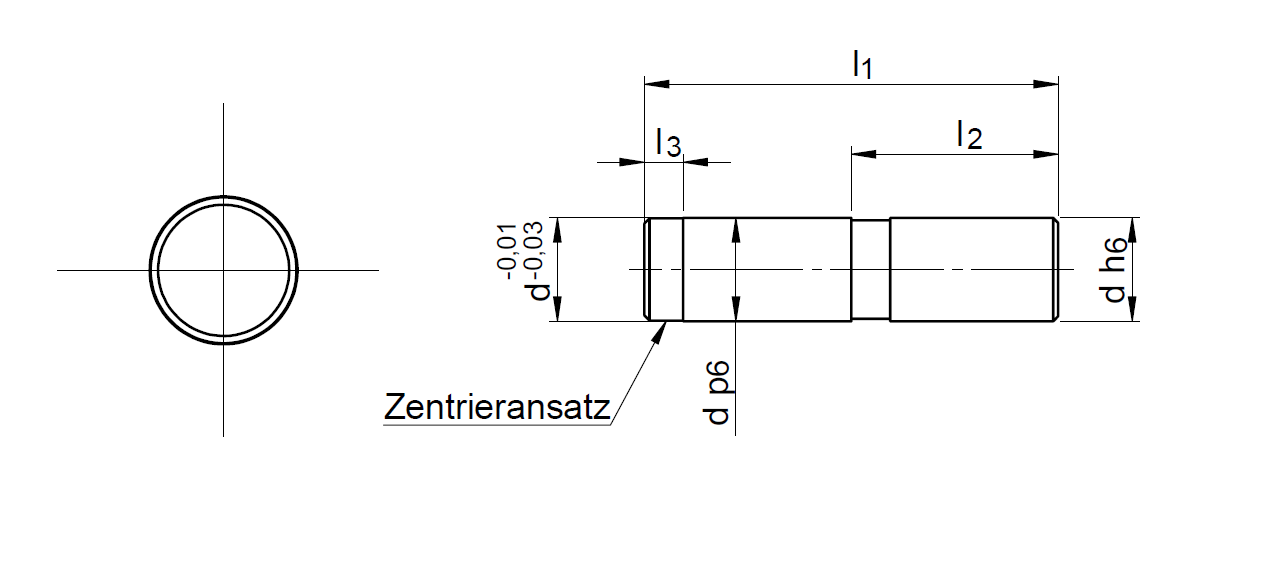

Fit dimensions d p6 / d h6 ground
Locating pins SM 1020-2 are normally used in conjunction with locating bushes SM 1000 and SM 1002.
The shaft tolerance to p6 ensures a perfect fit in a bore to H7.
The chamfer l3 facilitates the fitting.
RoHS-compliant: yes
| Element type: | Round bars / dowel pins |
|---|---|
| Material: | Steel - hardened |
| Surface: | grinded |
