Mounting tool for SM 1273-9 | SM 1273-9 M
from €13.98*
€16.03*
Delivery time: 1-3 days working days
Delivery time: See variant in the table
This product is available in 5 versions.
Product information "Mounting tool for SM 1273-9 | SM 1273-9 M "
for Side thrust pins press on type SM 1273-9
Material: steel
| Material: | Steel |
|---|
Accessory Items
Side thrust pin | SM 1273-9
From
€4.91*
incl. VAT
press on type
Material:body: aluminium blankthrust pin: Form SA / SB steel, hardened, zinc plated, blue passivatedthrust pin: Form KA / KB plastic Polyacetal (POM)seal: Chloroprene rubber (CR)thrust spring:side thrust force: light - stainless steelside thrust force: medium - spring steel blackenedside thrust force: heavy - spring steel zinc plated, blue passivatedPlease note:
Some of the side pressure pieces are just available with lower side pressure forces:
Contrary to the information on the data sheet, for d1 = 06 the heavy side pressure force is 100 N instead of 150 N
d1 = 08 the
heavy
side pressure force is 150 N instead of 200 N
d1 = 10 the medium side pressure force is 150 N instead of 200 N
d1 = 10 the
heavy
side pressure force is ~200 N instead of 300 N.
Form SA: thrust pin steel, without sealForm KA: thrust pin technopolymer, without sealForm SB: thrust pin steel, with sealForm KB: thrust pin technopolymer, with seal one-sided

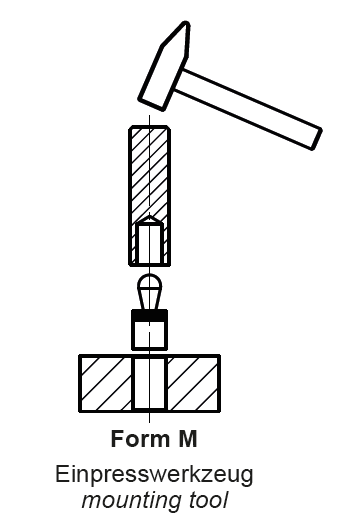

Form M: mounting tool
X: distance center axis - pressure point at w/2x1 for the highest pressure poinZx2 for lowest pressure pointw: adjustment of the pressure pin
RoHS-compliant: yesSpring-loaded side pressure pieces are used in a versatile and efficient manner for holding, positioning and clamping workpieces. They save on complex set-ups, take up little space and are easy to install: due to the knurling of the sleeve, a bore tolerance of H8 is sufficient.
