Side thrust pin | SM 1273-9

Product information "Side thrust pin | SM 1273-9 "

press on type

Material:
body: aluminium blank
thrust pin: Form SA / SB steel, hardened, zinc plated, blue passivated
thrust pin: Form KA / KB plastic Polyacetal (POM)
seal: Chloroprene rubber (CR)
thrust spring:
side thrust force: light - stainless steel
side thrust force: medium - spring steel blackened
side thrust force: heavy - spring steel zinc plated, blue passivated

Please note:
Some of the side pressure pieces are just available with lower side pressure forces:
Contrary to the information on the data sheet, for
d1 = 06 the heavy side pressure force is 100 N instead of 150 N
d1 = 08 the heavy side pressure force is 150 N instead of 200 N
d1 = 10 the medium side pressure force is 150 N instead of 200 N
d1 = 10 the heavy side pressure force is ~200 N instead of 300 N.

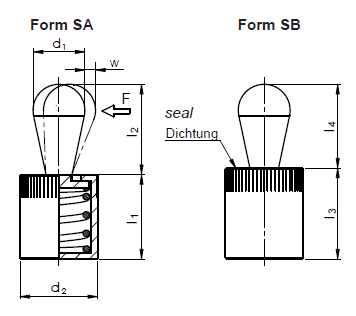

Form SA: thrust pin steel, without seal
Form KA: thrust pin technopolymer, without seal
Form SB: thrust pin steel, with seal
Form KB: thrust pin technopolymer, with seal one-sided

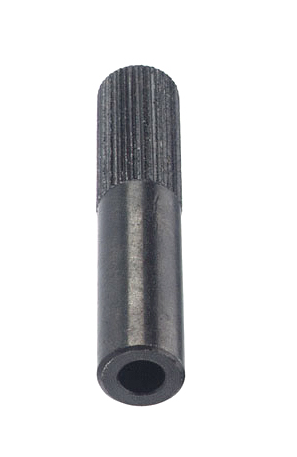

Form M: mounting tool

X: distance center axis - pressure point at w/2
x1 for the highest pressure poinZ
x2 for lowest pressure point
w: adjustment of the pressure pin

RoHS-compliant: yes

Spring-loaded side pressure pieces are used in a versatile and efficient manner for holding,
positioning and clamping workpieces.
They save on complex set-ups, take up little space and are easy to install:
due to the knurling of the sleeve, a bore tolerance of H8 is sufficient.

Compliance:	RoHS compliant
Element type:	Side thrust pin, Thrust pieces
Material:	Aluminium, Pressure pin: plastic, Pressure pin: steel
Speciality:	Pressure force: light, Pressure force: medium, Pressure force: strong, Without seal, With sealing
