Nut for T-slots "rhombus" M6 | SM 1050-12

SCHOLZ MECHANIK GmbH

€4.86*

Prices incl. VAT plus shipping costs

Available in 5 days

Product number: 96779

Description Datasheet

Product information "Nut for T-slots "rhombus" M6 | SM 1050-12 "

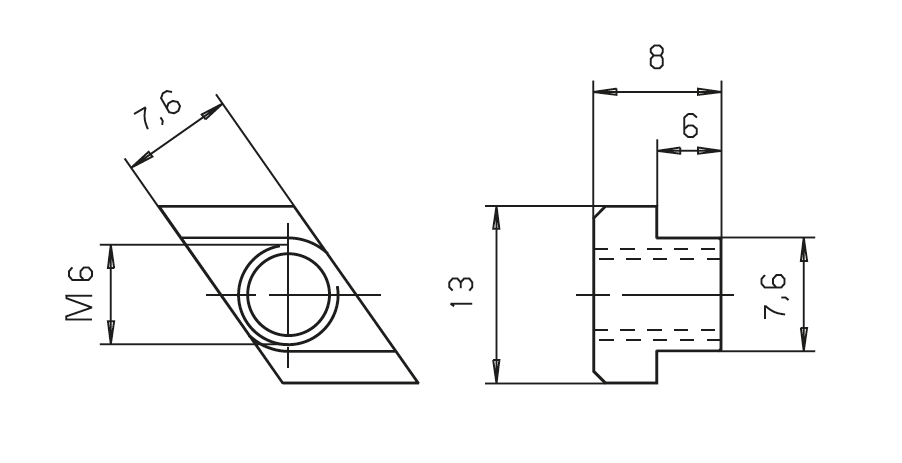

Nut for T-slots "rhombus" M6

Material:
heat-treated steel
not zinc plated

RoHS-compliant: yes

The M06 nuts for T-slots “Rhombus” are part of the SM 1050 mini clamping set.
They are suitable for fixing the clamps or clamps with workpiece or base and in slots using stud bolts or support screws.

Element type:	Screws / Nuts
Material:	Quenched and tempered steel
Type:	Mechanical clamping elements
