Push plunger with pin | SM 1088-8
from €35.70*
€42.22*
Available in 5 days
protected against rotating
Material:
pin: steel, case-hardened, blackened
body: steel, zinc-plated by galvanization
threaded pin: steel, blackened,
with brass pad
mounting block: zinc die-cast, plastic coated, black
knob: steel, blackened
lock nut: steel, blackened

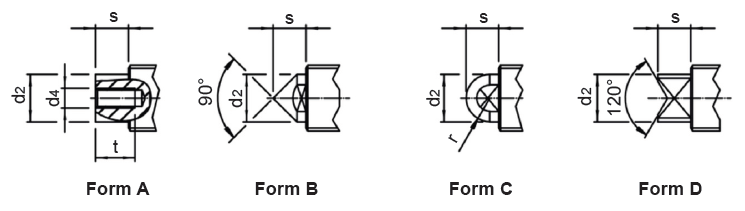

Form A: with female thread

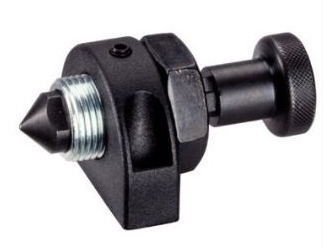

Form B: with tipped point
Form C: with rounded pin

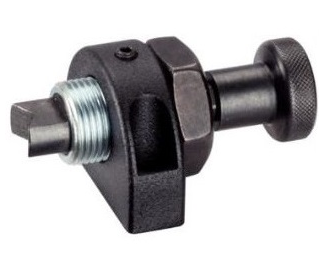

Form D: with prism
The push plunger is suitable for easy and safe positioning of workpieces
or components prior to clamping or assembly.
Locating pins of your own profile or design can be attached to our
threaded pin types.
Temperature resistant up to max. 100°C.
RoHS-compliant: yes
| Material: | Steel |
|---|---|
| Surface: | Steel - burnished, Steel - zinc plated |
| Type: | Mechanical clamping elements |
