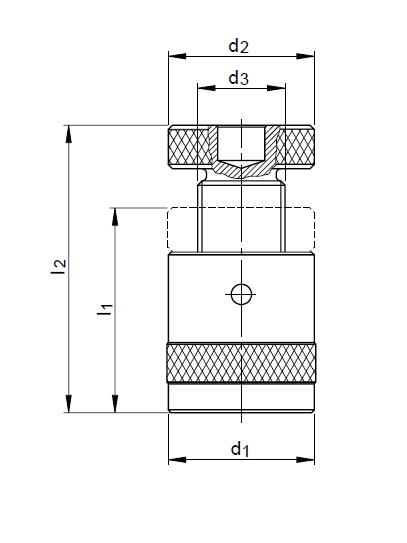

Schraubbock | SM 1140

Variants table
Length 2	Product number	Unit price	Buy

Product information "Screw jack | SM 1140 "

Screw bearer

Material: tempering steel, varnished

spindle: trapezoidal thread, self-locking wth end stop.

You can combine the screw jacks with SM 1140 H, DK, F, Z, K and P.

RoHS-compliant: yes

Material:	Quenched and tempered steel
Surface:	varnished
Type:	Attachments for screw jacks and clamping accessories

Zubehör

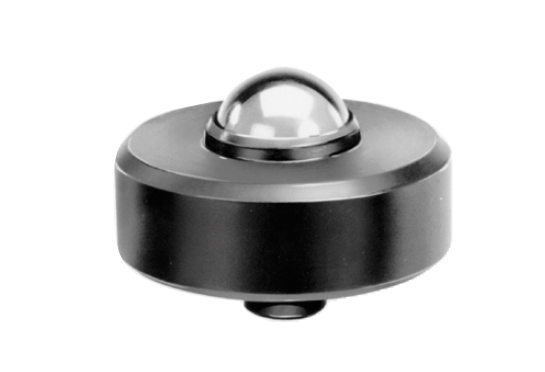

Support with pivotable ball | SM 1140 DK

for screw jacks SM 1140 / SM 1140-01 Material: steel tempered, burnished, ball made of hardened steel This rugged element was designed for the supporting and alignment of workpieces made of cast iron and forging-grade steels. Accessorie for Screw Jack / Screw bearer SM 1140. RoHS-compliant: yes

€57.18* incl. VAT

Details

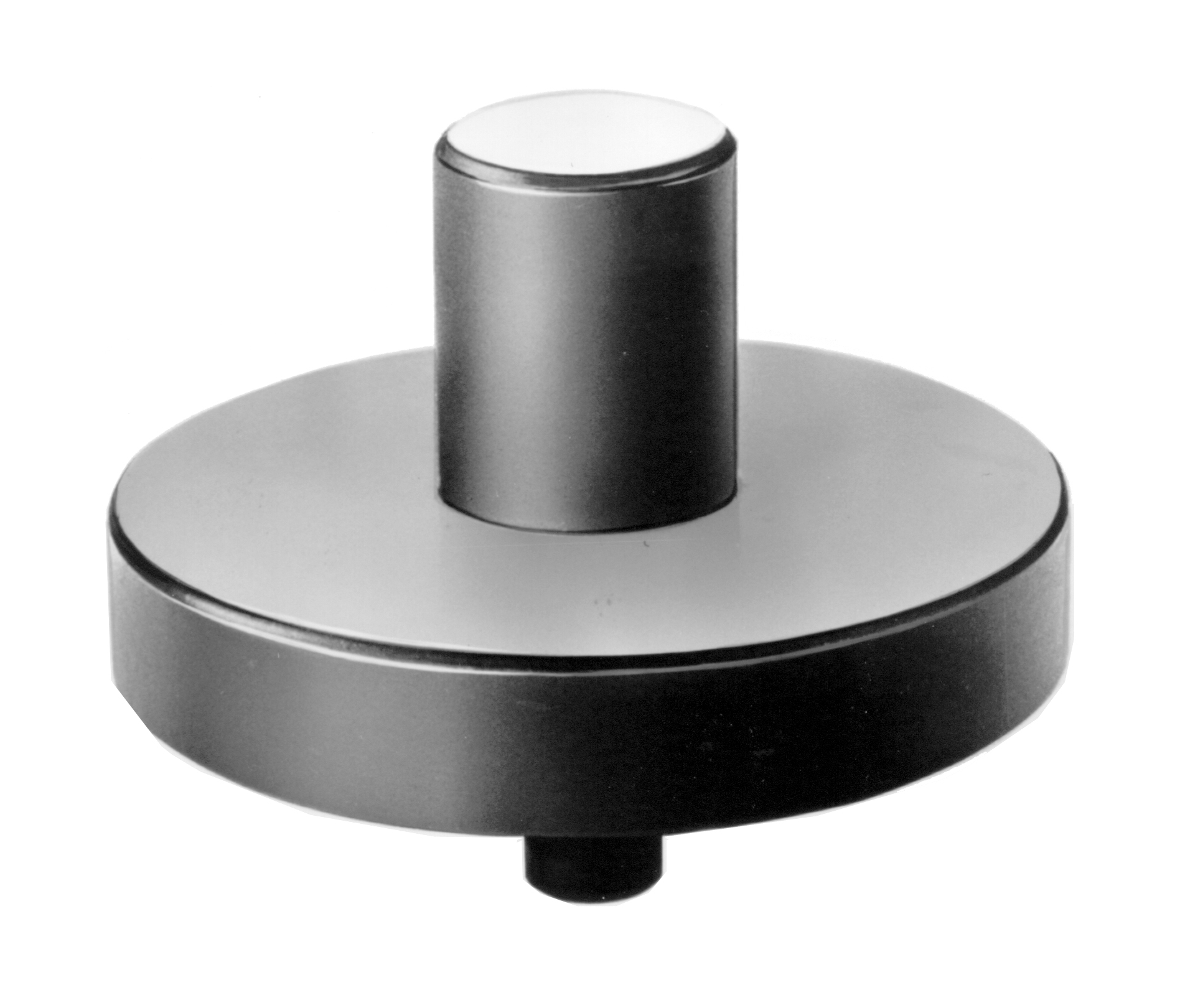

Locating-pad | SM 1140 F

Fixing attachmentfor screw jacks SM 1140 / SM 1140-01 Material: steel tempered, burnished for clamps and screw jack SM 1140 RoHS-compliant: yes

From €57.31* incl. VAT

Details

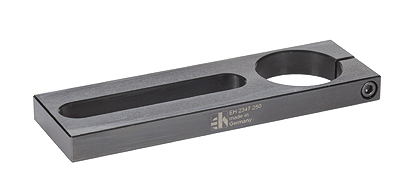

Holder for screw jacks | SM 1140 H

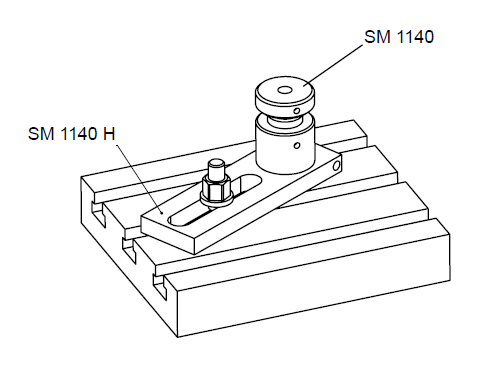

for screw jacks SM 1140 / SM 1140-01 Material: steel, blackened Accessorie for Screw Jack / Screw bearer SM 1140. The holders, which can be secured through the T-slots, make it possible to fix the jacks so that they will not slip out of position when a workpiece is changed. They also make it possible to fit screw jacks to vertical clamping surfaces.The sizes SM 1140H32 and SM 1140H50 are no longer available. SM 1140H70 with remaining stock. RoHS-compliant: yes

From €94.11* incl. VAT

Details

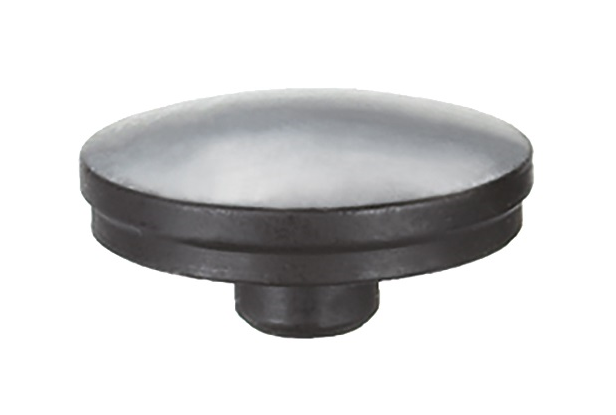

Spherical cap | SM 1140 K

Locating-pad for screw jacks SM 1140 / SM 1140-01 Material: steel tempered, burnished Accessorie for Screw Jack / Screw bearer SM 1140. RoHS-compliant: yes

€16.51* incl. VAT

Details

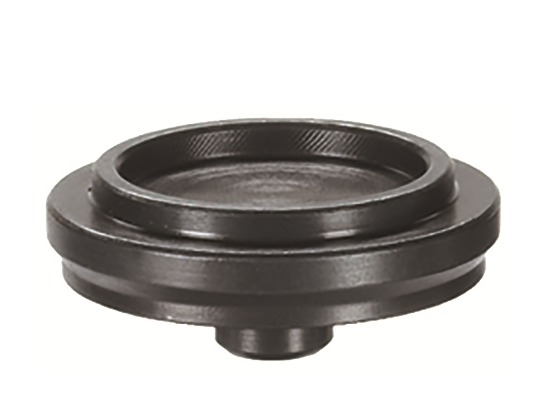

Self-aligning cap | SM 1140 PE

for screw jacks SM 1140 / SM 1140-01 Material: steel, case-hardened, blackened Accessorie for Screw Jack / Screw bearer SM 1140. RoHS-compliant: yes

From €119.36* incl. VAT

Details

Centering plate | SM 1140 Z

for screw jacks SM 1140 / SM 1140-01 Material: steel, tempered, burnished Accessories for Screw Jack / Screw bearer SM 1140.To adjust screw jacks dia 50 mm to other screw jacks and setting elements with centering hole dia 12 mm. RoHS-compliant: yes

€24.17* incl. VAT

Details
