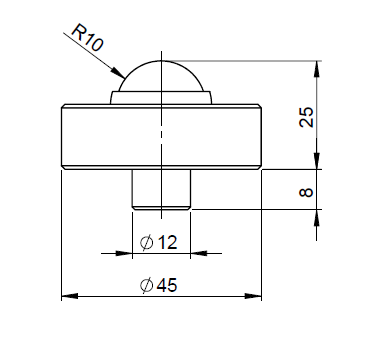

Support with pivotable ball | SM 1140 DK

SCHOLZ MECHANIK GmbH

€51.17*

Prices incl. VAT plus shipping costs

Available in 5 days

Product number: 107701

Description Datasheet

Product information "Support with pivotable ball | SM 1140 DK"

for screw jacks SM 1140 / SM 1140-01

Material:
steel tempered, burnished,
ball made of hardened steel

This rugged element was designed for the supporting and alignment of workpieces made of cast iron and forging-grade steels.

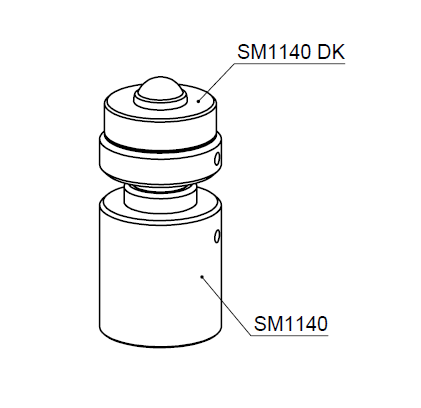

Accessorie for Screw Jack / Screw bearer SM 1140.

RoHS-compliant: yes

Material:	Steel
Surface:	Steel - burnished
Type:	Attachments for screw jacks and clamping accessories
