Spring plunger | SM 1275-2

SCHOLZ MECHANIK GmbH

Diameter 1	Form	Product number	Unit price	Buy

Product information "Spring plunger | SM 1275-2"

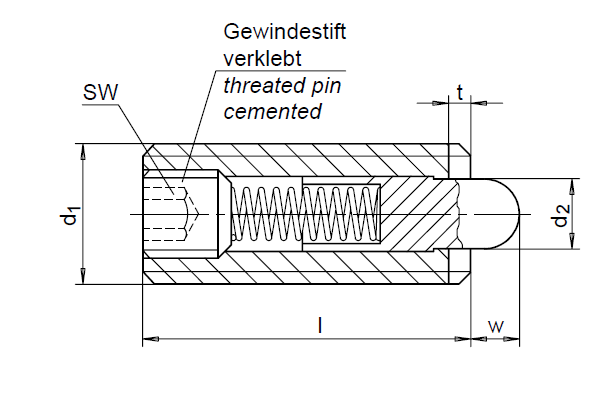

Spring thrust pad
with bolt and internal hexagon

Material:
spring: stainless steel
body:
free cutting steel, blackened
stainless steel 1.4305
bolt:
free cutting steel, hardened, blackened
stainless steel 1.4305, nitrided
Thermoplastic POM, white

Form A: body and pin from free cutting steel, normal spring load
Form AS: body and pin from free cutting steel, with increased spring load
Form AN: body and pin from stainless steel, normal spring load
Form D: body from free cutting steel, with pin from plastic, normal spring load
Form DN: body from stainless steel, with pin from plastic, normal spring load

Version SD: screw driver

Indication:
standard spring load: no marking
increased spring load: marked with two lines (not applicable for production from the second quarter of 2025).

These sprig plungers are used for locating or for applying pressure or lifting off.
Spring plungers can be fixed and removed by means of the slot or internal hexagon.
Temperature range of steel and stainless steel is up to 250° C.
Spring plungers with bolt made of POM are used from -30 °C up to +50 °C.

RoHS-compliant: yes

Compliance:	RoHS compliant
Element type:	Thrust pieces, resilient thrust pieces
Material:	Bolt: POM, Bolt: Stainless steel, Bolt: steel, Stainless steel, Steel
Speciality:	Reinforced spring force, Standard spring load, with internal hexagon, without head / collar
Surface:	Steel - burnished
