Star knob screw - DIN 6336 | SM 1205-1

SCHOLZ MECHANIK GmbH

Variants table

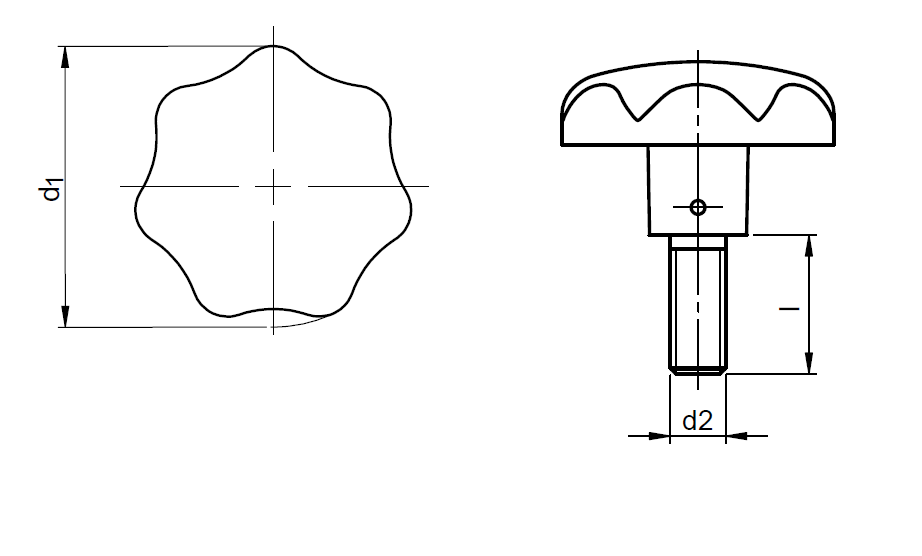

Diameter 1	Diameter 2	Length	Product number	Unit price	Buy

Product information "Star knob screw - DIN 6336 | SM 1205-1"

Cast iron hand knob
with threaded stud

Material:
knob: cast iron
fettled and tumbled
threaded stud: steel

The screw is screwed in and secured with a cross pin.

Star grip screws SM 1205-1 to DIN 6336 are ergonomically shaped and easy to handle.
Made from cast iron, the handles are sturdy and highly resilient, resistant to many environmental influences
and more cost-effective compared to other handles made from high-strength materials
such as steel and still offer good performance in many applications.

RoHS-compliant: yes

Compliance:	RoHS compliant
DIN / ISO:	DIN 6336 and similar
Material:	Bushing/Screw: Steel, Grey cast iron, Knob / Handle: Cast iron
Speciality:	With threaded stud
Surface:	Steel - burnished, grey cast iron - slide-ground
Type of use:	Grips, Screws, Star grips
