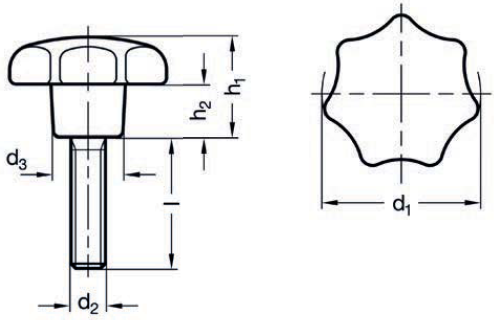

Star knob screw - sim. DIN 6336 | SM 1206-1

SCHOLZ MECHANIK GmbH

Variants table
Diameter 1	Diameter 2	Length	Product number	Unit price	Buy

Product information "Star knob screw - sim. DIN 6336 | SM 1206-1"

plastic
with threaded bolt

Material:
knob: plastic, Phenolic resin (PF)
black, shiny finish
screw: steel, zinc plated

Star knob screws SM 1206-1 similar to DIN 6336 are ergonomically shaped and easy to handle.

RoHS-compliant: yes

Some information on the DATA SHEET (available sizes) is no longer up to date. Revision to follow.

Colour:	black
Compliance:	RoHS compliant
DIN / ISO:	DIN 6336 and similar
Material:	Bushing/Screw: Steel, Knob / Handle: Plastic, Plastic, Thermoset
Speciality:	With threaded stud
Surface:	Plastic - glossy, Steel - zinc plated
Type of use:	Grips, Screws, Star grips
