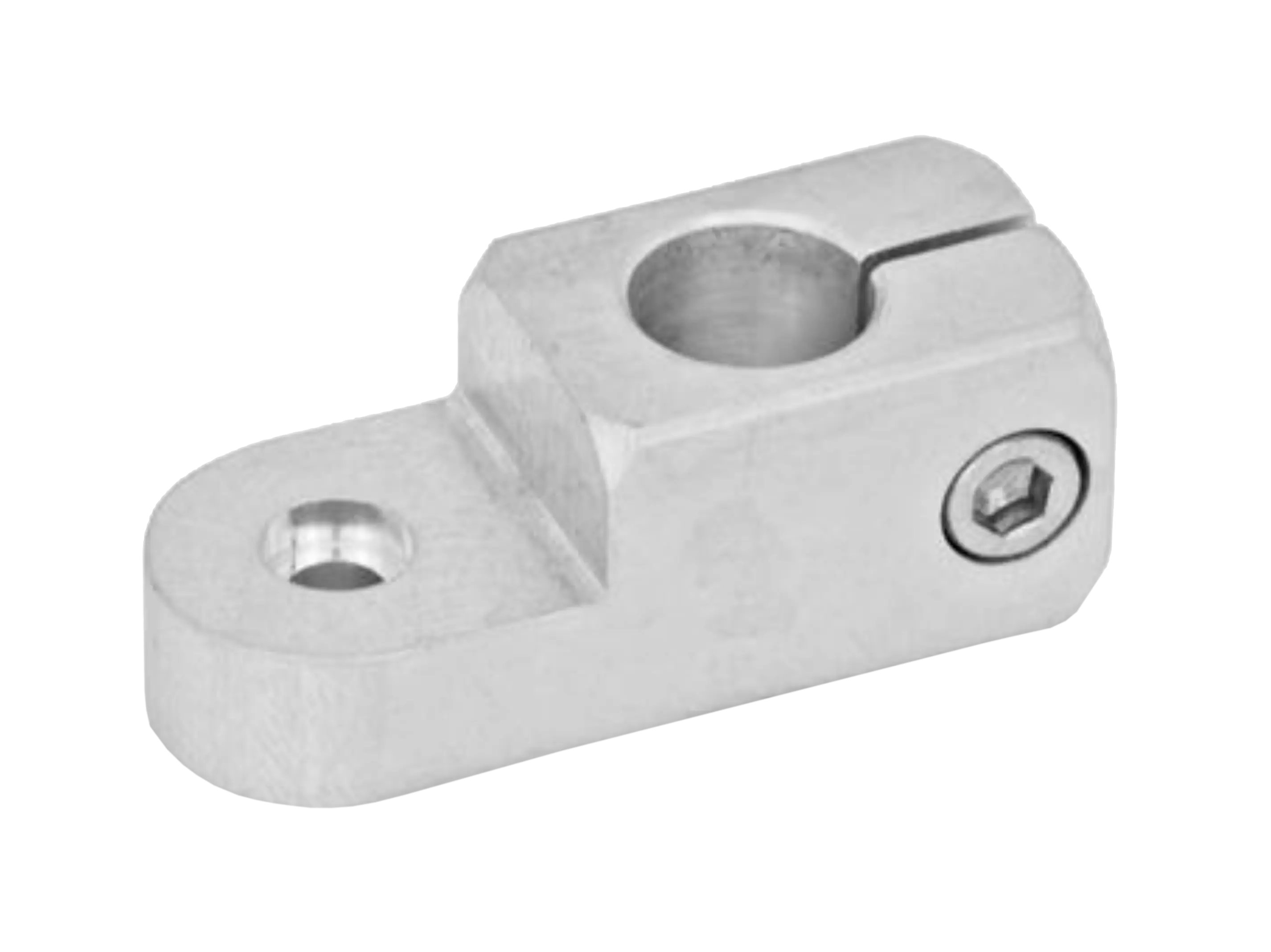

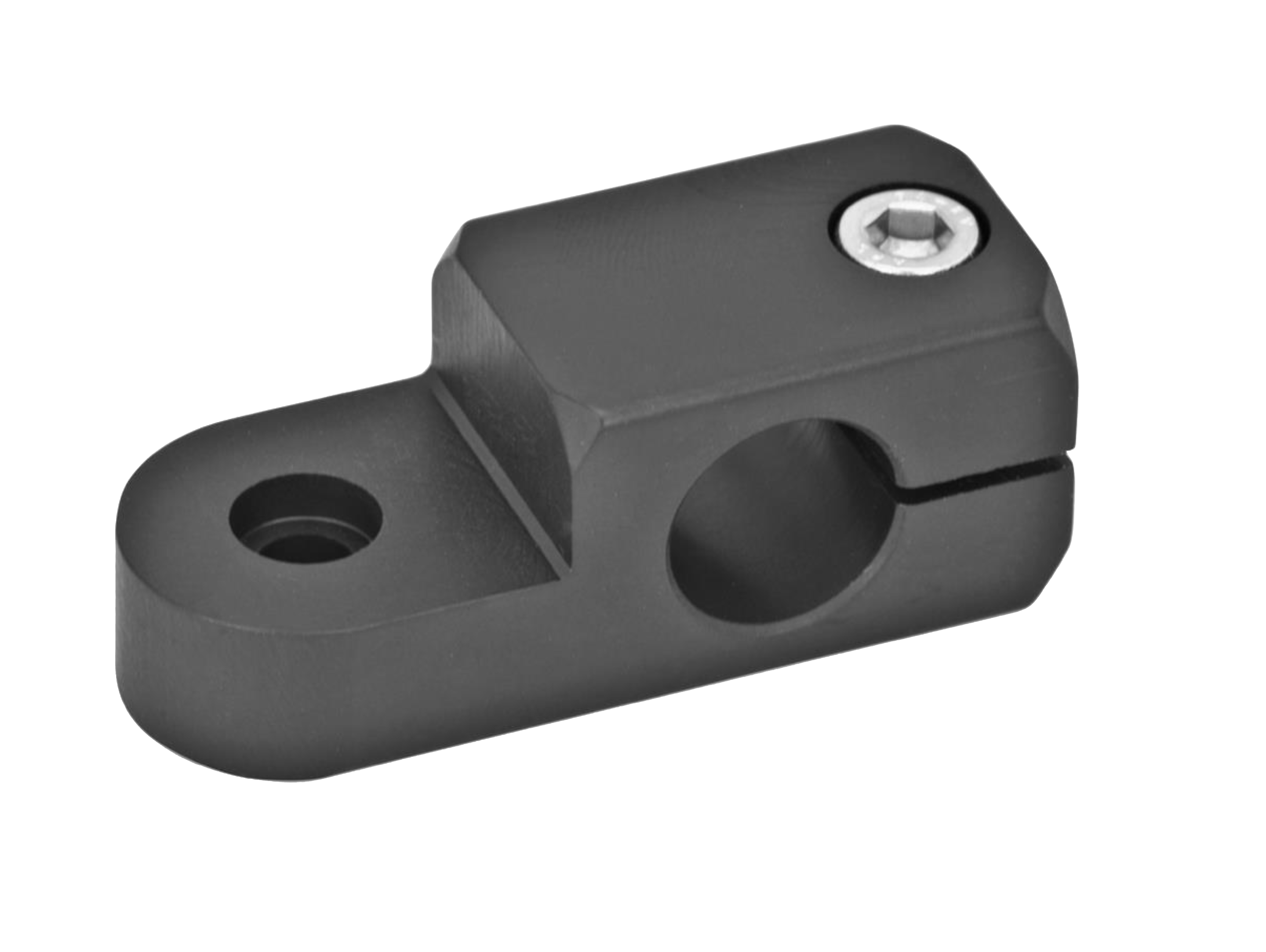

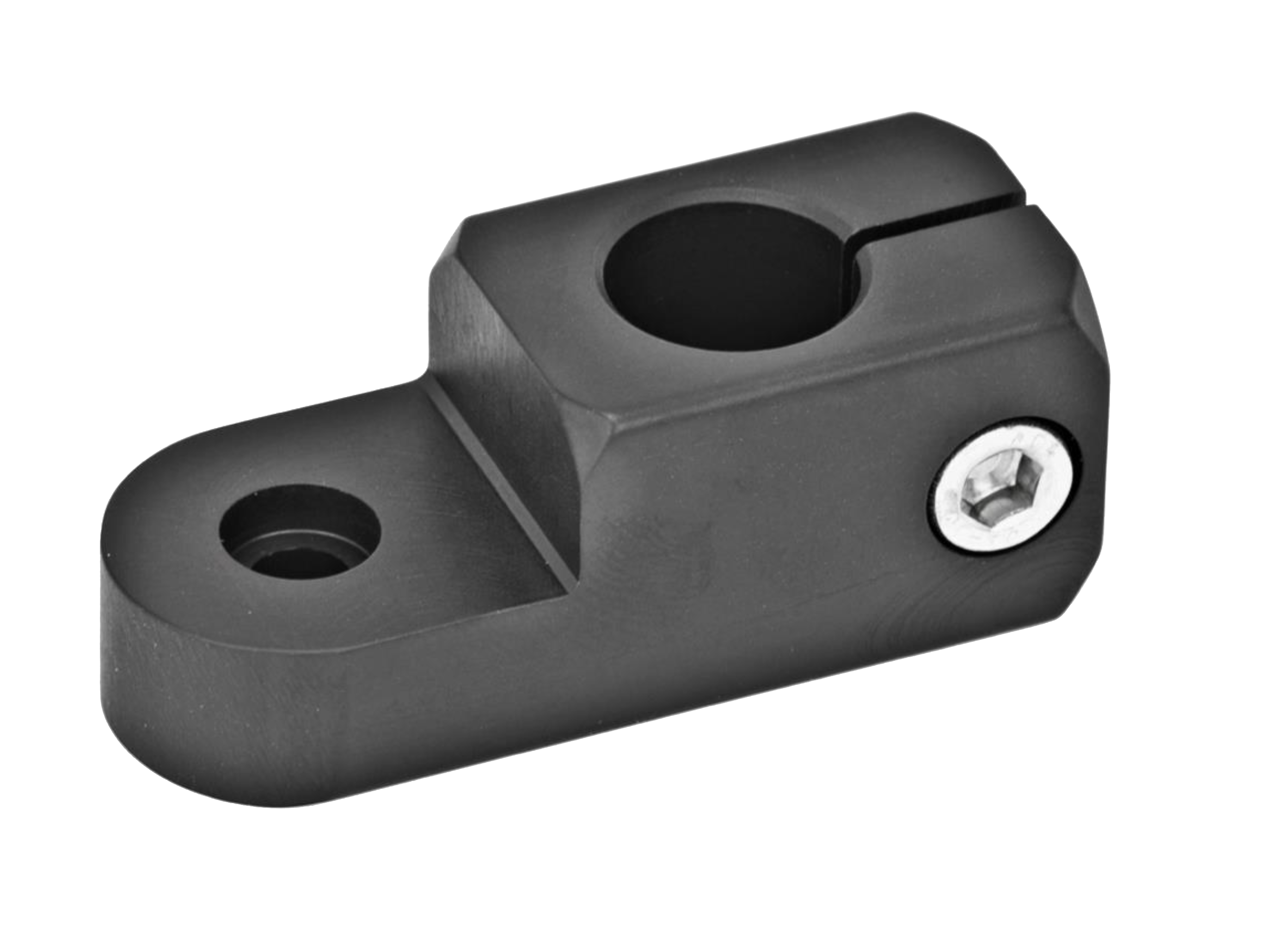

Swivel mounting clamp | SM 1754-1
from €14.66*
€17.17*
Available in 5 days
Available in 5 days
This product is available in 24 versions.
Product information "Swivel mounting clamp | SM 1754-1"
Lug clamp holder
from Aluminum
MaterialAL: Aluminum
clamp holder
ELSW = black anodized
MT = matte finish, tumbled
Socket cap screw DIN 912: stainless steel A2 / AISI 304

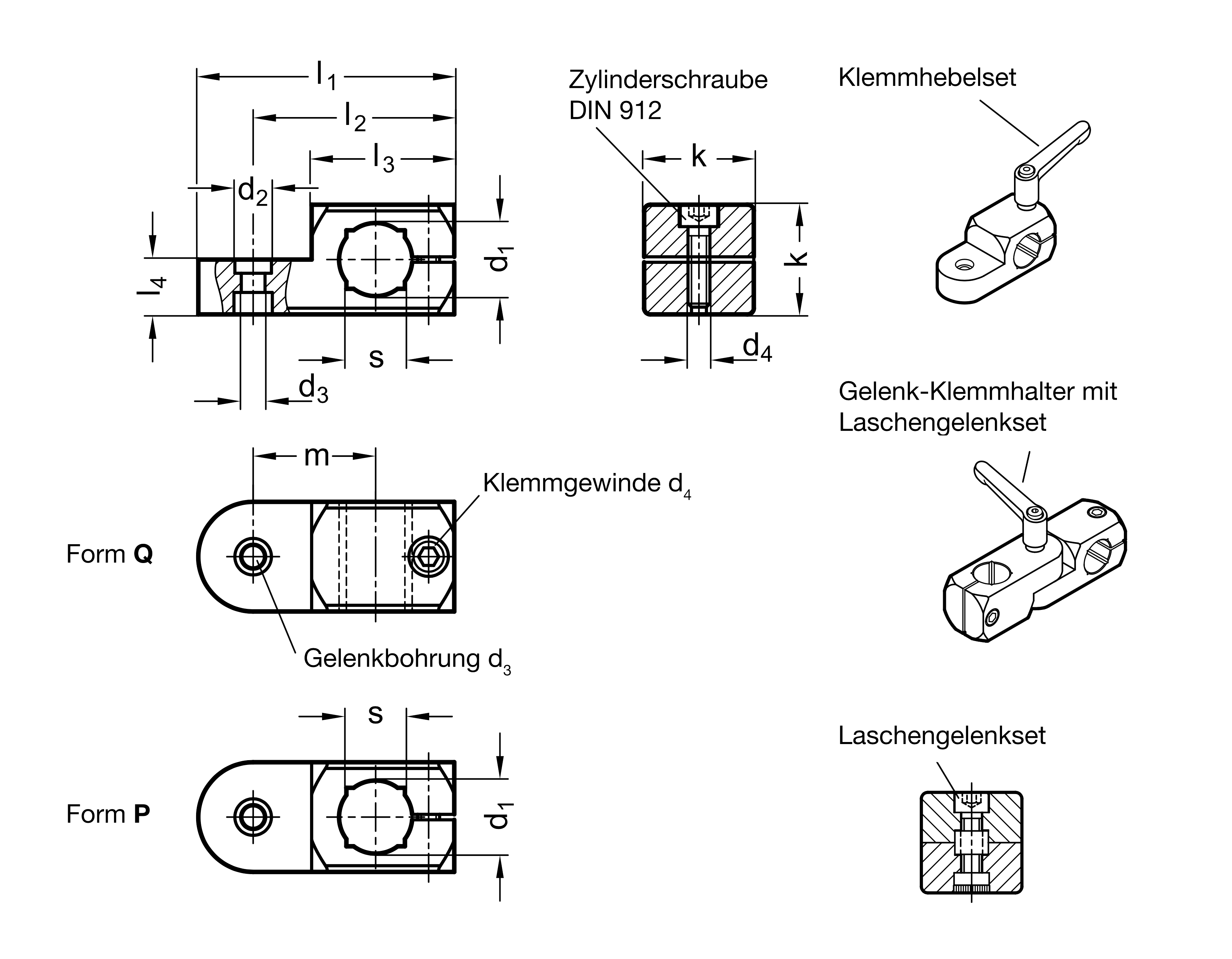

Form P: clamping hole parallel to the lug axis
Form Q: clamping hole transverse to the bracket axis
SM 1754-1 Swivel mounting clamps can be combined with
SM 1754-2 T-swivel mounting clamps,
SM 1754-3 Attachment swivel mountings clamps and
SM 1754-4 Base plate swivel mounting clamps
with the same k dimensions to swivel clamp mounting joints.
SM 1759-2 Clamping kits with screw (shape S) and with adjustable clamping lever (shape K) are also available.
RoHS compliant: yes
Similar Items
Clamp holder | SM 1753-6
€10.20*
incl. VAT
Colour / Surface:
Schwarz_elo
|
Diameter 1:
08
|
Diameter 2:
M04
Mounting Clampfrom AluminumMaterialAL: Aluminummounting clampELSW = black anodizedMT = matte finish, tumbledThe SM 1753-6 clamp holders are not threaded. They are fastened or clamped using two threads on the mounting side. The clamping holes are additionally equipped with a square.The hole spacing m is matched to the SM 1751 foot clamp bracketsSM 1757 flange bolts SM 1754-4 foot lug clamp bracketsSM 1758 holding magnets.
RoHS compliant: yes
Variants from €8.08*
incl. VAT
Accessories
T-Swivel mounting clamp | SM 1754-2
€20.25*
incl. VAT
Clamping length k:
20
|
Colour / Surface:
Schwarz_elo
|
Diameter 1 / 2:
10
|
Form:
B
T-bracket clamp holder from AluminiumMaterialAL: Aluminummounting clampELSW = black anodizedMT = matte finish, tumbledBolt (form B): stainless steel 1.4305 / AISI 303Grub screw DIN 913 (Form A): stainless steel 1.4301 / AISI 304
Grub screw DIN 915 (Form B): stainless steel 1.4301 / AISI 304Form A: with bore
Form B: with boltSM 1754-2 T-swivel mounting clamps can be combined with SM 1754-1 Swivel mounting clamps SM 1754-3 Attachment swivel mountings clamps and SM 1754-4 Base plate swivel mounting clamps with the same k dimensions to swivel clamp mounting joints. SM 1759-2 Clamping kits with screw (shape S) and with adjustable clamping lever (shape K) are also available. See dimensions table for order designation.RoHS compliant: yes
Variants from €13.13*
incl. VAT
Swivel mounting clamp | SM 1754-3
€17.78*
incl. VAT
Clamping length k:
25
|
Colour / Surface:
Matt/matte
|
Diameter 1:
M10
Mounting lug clamp holder,Swivel attachment mounting clamp,from Aluminum MaterialAL: Aluminumclamp holderELSW = black anodizedMT = matte finish, tumbledAttachment swivel mountings clamps SM 1754-3 can be combined with Swivel mounting clamps SM 1754-1, T-swivel mounting clamps SM 1754-2 and Base plate swivel mounting clamps SM 1754-4 with the same k dimensions to swivel clamp mounting joints. SM 1759-2 Clamping kits with screw (shape S) and with adjustable clamping lever (shape K) are also available. See dimensions table for order designation. The SM 1754-3 Attachment swivel mountings clamps are intended for mounting sensor holders SM 1756-2 and retaining plates SM 1756-1, among other things. They have a central thread and an additional 4 x M4 hole pattern from size k = 20.RoHS compliant: yes
Variants from €12.71*
incl. VAT
Clamping kit | SM 1759-1
€6.47*
incl. VAT
Diameter 1:
M04
|
Length 1:
22
|
Length 2:
14
Adjustable clamping lever setwith screwfor clamp holderMaterialHandle: Die-cast zincpowder coated, textured finishSB = silver RAL 9006Screw insert: stainless steel 1.4305 / AISI 303Retaining screw: stainless steel 1.4305 / AISI 303Distance sleeve: stainless steel 1.4305 / AISI 303Clamping lever sets SM 1759-1 replace the hexagon socket head cap screws DIN 912 in clamping holders. They are used in all clamping points when repeated clamping is required, e.g. to adjust a stop. Lubricating the threads and the contact surface of the clamping lever increases the clamping force and reduces wear.You will find a recommendation for the right clamping lever set for each clamping thread in the dimension tables for the clamping holders.RoHS compliant: yes
Variants from €6.26*
incl. VAT
Clamping kit | SM 1759-2
€10.01*
incl. VAT
Diameter 1:
M04
|
Form:
K
|
Length 2:
16
Lug joint setfor lug clamp holdersMaterial:Handle: Zinc die castingpowder coated, textured finishSB = silver RAL 9006Insert: stainless steel 1.4305 / AISI 303Retaining screw: stainless steel 1.4305 / AISI 303Distance sleeve: stainless steel 1.4305 / AISI 303Centering bushing: stainless steel 1.4305 / AISI 303Threaded bushing: stainless steel 1.4305 / AISI 303Socket cap screws ISO 4762: stainless steel 1.4301 / AISI 304Form K: with adjustable hand leverForm S: with socket cap screw ISO 4762With SM 1759-2 Clamping kits, SM 1754- 1 Swivel mounting clamps, SM 1754-2 T-Swivel mounting clamps and SM 1754-3 Swivel attachment mounting clamps, with the same k dimensions can be combined to form joint clamp holders. The centring bushing positions and supports the link plate clamp holders in relation to each other. The knurled threaded bushing is inserted during assembly by the clamping screw itself or by pressing it into one of the two link plate clamp holders and is then used to clamp the joint.Lubricating the threads and the contact surface of the clamping lever increases the clamping force and reduces wear.The matching link joint sets are specified in the dimension tables for the respective link clamp holders.RoHS compliant: yes
Variants from €4.27*
incl. VAT
