Thrust screw | SM 1141 A

SCHOLZ MECHANIK GmbH

Diameter 1	Form	Length 1	Product number	Unit price	Buy

Product information "Thrust screw | SM 1141 A "

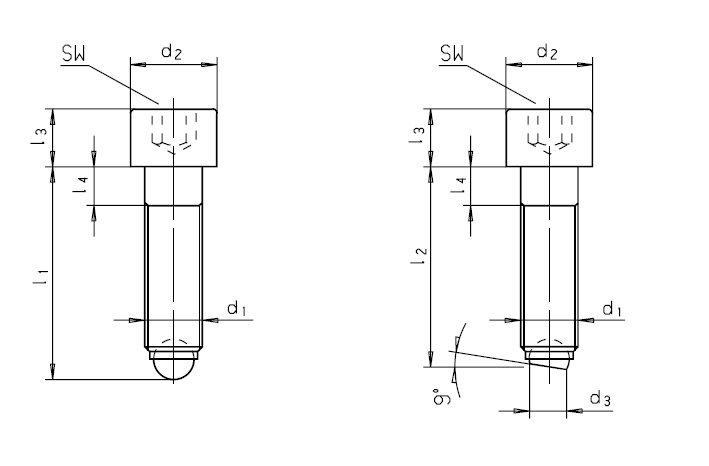

Ball-ended, headed

Material:
screw:
Form A, B, BV, F, FV: steel, quality 12.9, blackened
Form AN, BN, BNV, FNV: stainless steel
ball:
Form A, B, BV, F, FV:ball-bearing steel, hardened
Form AN, BN, BNV, FNV: stainless steel

Form A: with full ball, without anti-rotation lock
with hexagon socket
from steel
Form AN: with full ball, without anti-rotation lock
with hexagon socket
from stainless steel

RoHS-compliant: yes

Ball thrust screws with a hexagon socket head are special fastening elements,
in whose screw body a bearing ball is integrated.
They are used when precise movements, exact positioning and even pressure distribution are required.
Ball thrust screws can also be used for clamping, tensioning or supporting non-parallel surfaces.

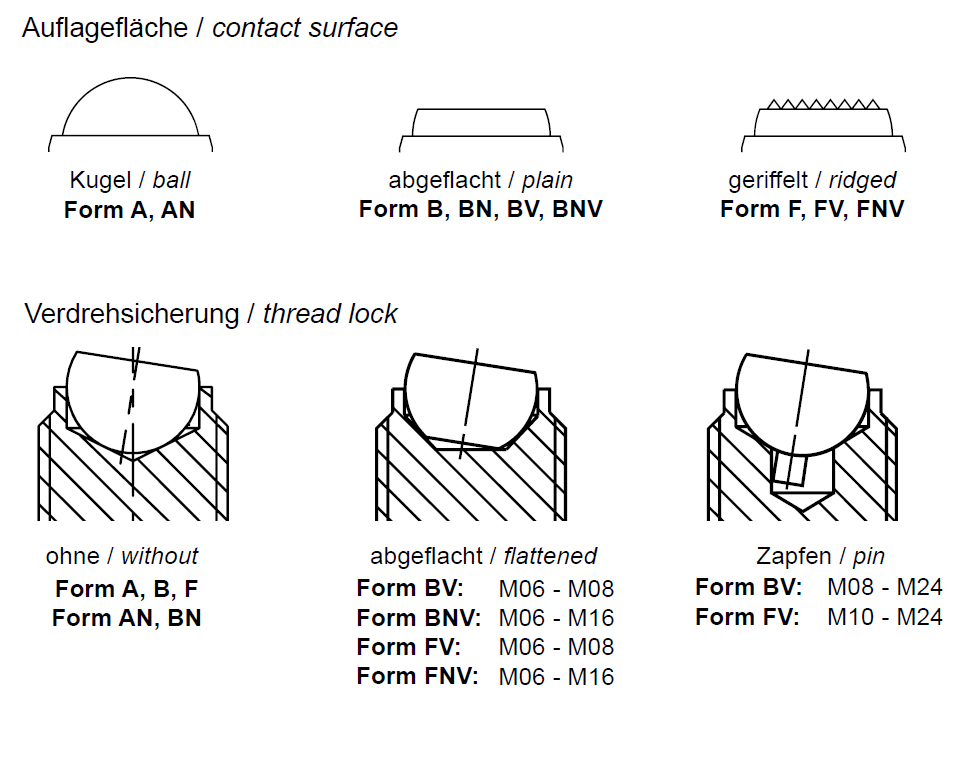

They are available with a full ball, a flattened ball with a flat surface and a flattened ball with a ribbed surface. The flattened, movable balls enable force to be transmitted over a wide area.
We can supply ball thrust screws with a flattened ball with and without anti-rotation lock.

Compliance:	RoHS compliant
Element type:	Ball screws, Ball thrust bolts
Material:	Ball: stainless steel, Ball: steel, Stainless steel, Steel
Speciality:	Full ball, not flattened, with internal hexagon
Surface:	Steel - black, Steel - burnished
