Thrust screw | SM 1141 B/F
from €4.71*
€4.71*
Available in 5 days

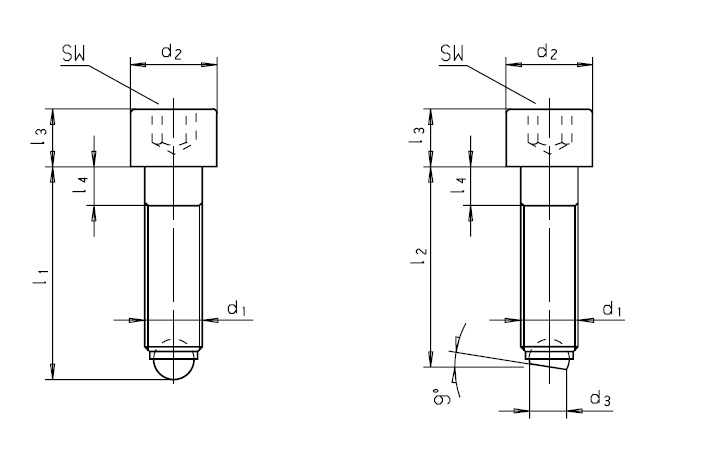

Ball-ended, headed
Material:
screw:
Form A, B, BV, F, FV: steel, quality 12.9, blackened
Form AN, BN, BNV, FNV: stainless steel
ball:
Form A, B, BV, F, FV:ball-bearing steel, hardened
Form AN, BN, BNV, FNV: stainless steel

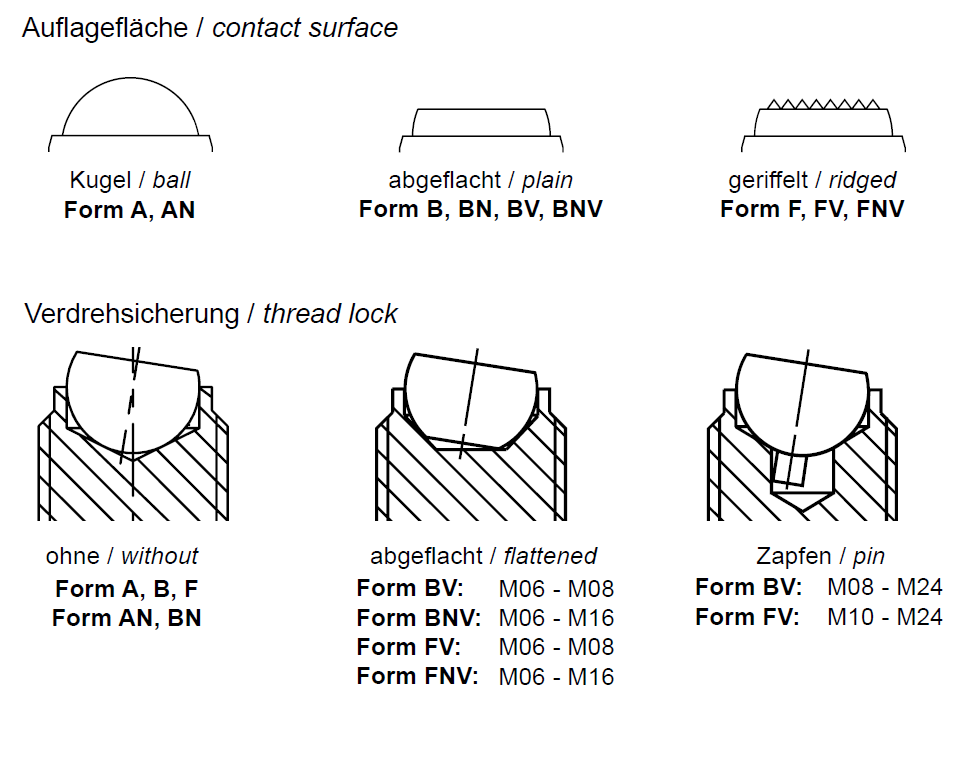

Form B: with flattened ball, contact surface flat, without thread lock
with hexagon socket
from steel
Form BN: with flattened ball, contact surface flat, without thread lock
with hexagon socket
from stainless steel
Form BV: with flattened ball, contact surface flat, with thread lock
with hexagon socket
from steel
Form BVN: with flattened ball, contact surface flat, with thread lock
with hexagon socket
from stainless steel
Form F: with flattened ball, contact surface ridged, without thread lock
with hexagon socket
from steel
Form FV: with flattened ball, contact surface ridged, with thread lock
with hexagon socket
from steel
Form FVN: with flattened ball, contact surface ridged, with thread lock
with hexagon socket
from stainless steel
RoHS-konform: ja
Ball thrust screws with a hexagon socket head are special fastening elements,
in whose screw body a bearing ball is integrated.
They are used when precise movements, exact positioning and even pressure distribution are required.
Ball thrust screws can also be used for clamping, tensioning or supporting non-parallel surfaces.
They are available with a full ball, a flattened ball with a flat surface and a flattened ball with a ribbed surface.
The flattened, movable balls enable force to be transmitted over a wide area.
We can supply ball thrust screws with a flattened ball with and without anti-rotation lock.
| Compliance: | RoHS compliant |
|---|---|
| Element type: | Ball screws, Ball thrust bolts |
| Material: | Ball: stainless steel, Ball: steel, Stainless steel, Steel |
| Speciality: | Ball flattened, Full ball, not flattened, Support surface ribbed, with internal hexagon |
| Surface: | Steel - burnished |
