The DAN315 spring-loaded thrust piece is the ideal solution for applications where precise positioning, securing or locking is required. With its robust design, integrated spring mechanism and high degree of repeat accuracy, this thrust piece is ideal for use in fixtures, mechanical engineering, automation technology and many other industrial applications. Material:Stainless steel (according to aviation standard)Design:M -metric thread0 -screw thread - UNJ profileTemperature range:-55°C to +85°C Whether in series production, prototype construction or assembly fixtures - the DAN315 ensures powerful but controlled application of pressure and supports reliable processes. Typical areas of application for the DAN315: Positioning of workpieces in fixtures and clamping systems Locking of moving machine parts Protection against unintentional adjustment Use in modular clamping systems Machine and plant construction, automation, test equipment technology

Rivet studsDIN 71803 Bwith aviation approvalB10X4-5DIN71803Material:Steel,galvanized and passivatedRoHS-compliant: yesBall studs / rivet studs to DIN 71803 B are robust, precise connecting elements, for flexible and stable joint connections. They are also connecting parts for ball joints and spare parts for DIN 71802 angle joints.Made of steel, the rivet pins have a long service life even under adverse environmental conditions. The ball is precisely machined and hardened to achieve high dimensional accuracy and wear resistance.The rivet studs are attached by flanging or riveting.This ensures a permanent, positive and backlash-free connection.This design is therefore particularly suitable for series applications where a firm, maintenance-free connection is required.Function and applicationIn combination with a suitable ball socket (e.g. to DIN 71805), the ball stud enables a movable connection with a high degree of flexibility. The ball can move in several axes and is therefore ideal for applications where mobility and load-bearing capacity are required. Typical areas of application are- Automotive engineering (e.g. gas struts, hood supports)- aviation- mechanical engineering- automation technology- Furniture industry (connections for flaps or adjustment mechanisms).Scholz Mechanik is approved to supply this ball stud to Airbus (B10X4-5DIN71803).

Aviation bush - Aviation socketwithout collaraccording to aviation standard HaN17601 Size:ø5G7xø8r6x7 mmMaterial:Aviation material sintered bronzeRoHS compliant: yesREACH compliant: yesThe bushings are available in different dimensions and can be found in various places in different areas of aviation.We would be happy to advise you on various designs, material and surface specifications.Please do not hesitate to contact us about other standards or special designs.

Aviation bush - Aviation socket without collar according to aviation standard HaN17601Size: ø6G7xø10r6x8 mmMaterial: Aviation material sintered bronze RoHS compliant: yesREACH compliant: yes The bushings are available in different dimensions and can be found in various places in different areas of aviation. We would be happy to advise you on various designs, material and surface specifications. Please do not hesitate to contact us about other standards or special designs.

Safety bolt SM 1276-1-Lsingle-actingwith mushroom gripaccording to aviation standard MS17984 / NAS1333-1343Material:Sleeve: stainless steel - CRES 17-4PH (specification AMS5643)precipitation hardened, passivatedPin: Stainless steel - CRES 17-4PH (specification AMS5643)precipitation hardened, passivatedSpring: stainless steel - CRES 302 (specification ASTM-A-313)passivatedKey ring: stainless steel - CRES 302 (specification ASTM A-313/A313M)passivatedPush button: stainless steel - CRES 303 (specification ASTM A484/484M)passivatedBall: stainless steel - CRES 440C (specification AMS5630)precipitation hardened, passivatedHandle:3/16" to 5/16" Aluminum -Alum.Alloy 380 (Specification ASTM B85/B85)black anodized3/8" to 1"Aluminum -Alum.Alloy 6061-T6 (Specification AMS-QQ-A200/8)black anodizedSurface treatment:All stainless steel parts passivated according to AMS2700.All aluminium parts anodized according to MIL-A-8625.Pressing = unlockingSM 1276-1-L ball lock pins are self-locking, single-acting pins.They are used for quick fixing, locking, adjusting, changing and securing.The balls are unlocked without tools using a push button.SM 1276-1-L ball lock pins are - extremely resilient to shear, - corrosion-resistant and therefore optimally protected against wear,- can be released quickly and easily for frequently repeated connections,- manufactured in accordance with aviation standard MS / NAS and tested in accordance with NAS 1332,- also known as locking pins, safety pins, ball lock pins, quick release pins or pip pins.- Manufactured in INCH dimensions.Temperature application range from: -65°F to 200°F.The SM 1276-1-L ball lock pins are used in the aviation sector for ground support (GSE) or maintenance, repair and overhaul (MRO), for example as a so-called gear pin or steering bypass pin for pushback.For similar versions in metric dimensions as standard parts, see SM 1273-71, SM 1273-72 or SM 1273-77.Conformity / regulations:- RoHS compliant according to Directive 2011/65/EU and Directive 2015/863.- Contains no SVHC substances with more than 0.1% w/w (SVHC list as of 21.01.2025).- Contains no Proposition 65 substances. There are no substances with chemical exposure warnings (Proposition 65 warnings).- Free of conflict minerals. This product does not contain any substances designated as "conflict minerals" such as tantalum, tin, gold or tungsten from the Democratic Republic of Congo or neighboring countries.On request:Other diameters and lengths.Double acting variants.Special versions for special applications.Various warning flags as accessories.

Safety bolt SM 1276-4-Lsingle-acting with T-handle according to aviation standard MS17985 / NAS1333-1343material:Sleeve: stainless steel - CRES 17-4PH (specification AMS5643)precipitation hardened, passivatedPin: Stainless steel - CRES 17-4PH (specification AMS5643)precipitation hardened, passivatedSpring: stainless steel - CRES 302 (specification ASTM-A-313)passivatedKey ring: stainless steel - CRES 302 (specification ASTM A-313/A313M)passivatedPushbutton: Stainless steel - CRES 303 (Specification ASTM A484/484M)PassivatedBalls: Stainless steel - CRES 440C (Specification AMS5630)Precipitation hardened, passivatedHandle:Aluminum - Alum.Alloy 380 (specification ASTM B85/B85)black anodizedSurface treatment:All stainless steel parts passivated according to AMS2700.All aluminium parts anodized according to MIL-A-8625.Pressing = unlockingSM 1276-4-L ball lock pins are self-locking, single-acting pins.They are used for quick fixing, locking, adjusting, changing and securing.The balls are unlocked without tools using a push button. SM 1276-4-L ball lock pins are- extremely resilient to shear,- corrosion-resistant and therefore optimally protected against wear,- quick and easy to release for frequently repeated connections,- manufactured in accordance with aviation standard MS / NAS and tested in accordance with NAS 1332,- also known as locking pins, safety pins, ball lock pins, quick release pins or pip pins,- manufactured in INCH dimensions. Temperature application range from: -65°F to 200°F.The SM 1276-1-L ball lock pins are used in the aviation sector for ground support (GSE) or maintenance, repair and overhaul (MRO),for example as a gear pin or steering bypass pin for pushback.For similar versions in metric dimensions as standard parts, see SM 1273-73 or SM 1273-74.Conformity / regulations:- RoHS compliant according to Directive 2011/65/EU and Directive 2015/863.- Contains no SVHC substances with more than 0.1% w/w (SVHC list as of 21.01.2025).- Contains no Proposition 65 substances.There are no substances with chemical exposure warnings (Proposition 65 warnings).- Free of conflict minerals.This product does not contain any substances designated as "conflict minerals" such as tantalum, tin, gold or tungsten from the Democratic Republic of Congo or neighboring countries.On request:Other diameters and lengths.Double-acting variants.Special versions for special applications.Various warning flags as accessories.

Safety bolt SM 1276-3-Lsingle-acting with mushroom grip according to aviation standard MS17986 / NAS1333-1343Material: Sleeve: stainless steel - CRES 17-4PH (specification AMS5643) precipitation hardened, passivated Pin: Stainless steel - CRES 17-4PH (specification AMS5643) precipitation hardened, passivated Spring: stainless steel - CRES 302 (specification ASTM-A-313) passivated Key ring: stainless steel - CRES 302 (specification ASTM A-313/A313M) passivated Push button: stainless steel - CRES 303 (specification ASTM A484/484M) passivated Balls: stainless steel - CRES 440C (specification AMS5630) precipitation hardened, passivated Handle:Aluminum - Alum.Alloy 380 (Specification ASTM B85/B85) black anodizedSurface treatment: All stainless steel parts passivated according to AMS2700. All aluminum parts anodized according to MIL-A-8625.Pressing = unlocking SM 1276-3-L ball lock pins are self-locking, single-acting pins. They are used for quick fixing, locking, adjusting, changing and securing. The balls are unlocked without tools using a push button. SM 1276-1-L ball lock pins are - extremely resistant to shear, - corrosion-resistant and therefore optimally protected against wear,- can be released quickly and easily for frequently repeated connections, - manufactured in accordance with aviation standard MS / NAS and tested in accordance with NAS 1332,- also known as locking pins, safety pins, ball lock pins, quick release pins or pip pins,- manufactured in INCH dimensions. Temperature application range from: -65°F to 200°FThe SM 1276-1-L ball lock pins are used in the aviation sector for ground support (GSE) or maintenance, repair and overhaul (MRO),for example as a so-called gear pin or steering bypass pin for pushback.For similar versions in metric dimensions as standard parts, see SM 1273-71, SM 1273-72 or SM 1273-77.Conformity / regulations:- RoHS compliant according to Directive 2011/65/EU and Directive 2015/863.- Contains no SVHC substances with more than 0.1% w/w (SVHC list as of 21.01.2025).- Contains no Proposition 65 substances. There are no substances with chemical exposure warnings (Proposition 65 warnings).- Free of conflict minerals.This product does not contain any substances designated as "conflict minerals" such as tantalum, tin, gold or tungsten from the Democratic Republic of Congo or neighboring countries.On request: Other diameters and lengths. Double acting variants. Special versions for special applications. Various warning flags as accessories.

Safety bolt SM 1276-2-Lsingle-actingwith ring handleaccording to aviation standard MS17987 / NAS1333-1343 material:Sleeve:stainless steel - CRES 17-4PH (specification AMS5643)precipitation hardened, passivatedPin: stainless steel - CRES 17-4PH (specification AMS5643) precipitation hardened, passivatedSpring: stainless steel - CRES 302 (specification ASTM-A-313) passivatedKey ring: stainless steel - CRES 302 (specification ASTM A-313/A313M) passivatetPushbutton: stainless steel - CRES 303 (Specification ASTM A484/484M) passivatetBall: stainless steel - CRES 440C (Specification AMS5630) precipitation hardened, passivatedHandle: stainless steel - CRES 17-4PH (specification AMS5643) passivatedSurface treatment:All stainless steel parts passivated according to AMS2700.Pressing = unlockingSM 1276-2-L ball lock pins are self-locking, single-acting pins.They are used for quick fixing, locking, adjusting, changing and securing.The balls are unlocked without tools using a push button.SM 1276-2-L ball lock pins are- extremely resilient to shear,- corrosion-resistant and therefore optimally protected against wear,- can be released quickly and easily for frequently repeated connections,- manufactured in accordance with aviation standard MS / NAS and tested in accordance with NAS 1332,- also known as locking pins, safety pins, ball lock pins, quick release pins or pip pins. - manufactured in INCH dimensions.Temperature application range from: -65°F to 200°F.The SM 1276-2-L ball lock pins are used in the aviation sector for ground support (GSE) or maintenance, repair and overhaul (MRO),for example as a so-called gear pin or steering bypass pin for pushback.For similar versions in metric dimensions as standard parts, see SM 1273-71, SM 1273-72 or SM 1273-77.Conformity / regulations:- RoHS compliant according to Directive 2011/65/EU and Directive 2015/863.- Contains no SVHC substances with more than 0.1% w/w (SVHC list as of 21.01.2025)- Contains no Proposition 65 substances. There are no substances with chemical exposure warnings (Proposition 65 warnings).- Free of conflict minerals. This product does not contain any substances designated as "conflict minerals" such as tantalum, tin, gold or tungsten from the Democratic Republic of Congo or neighboring countries.On request:Various warning flags as accessories.

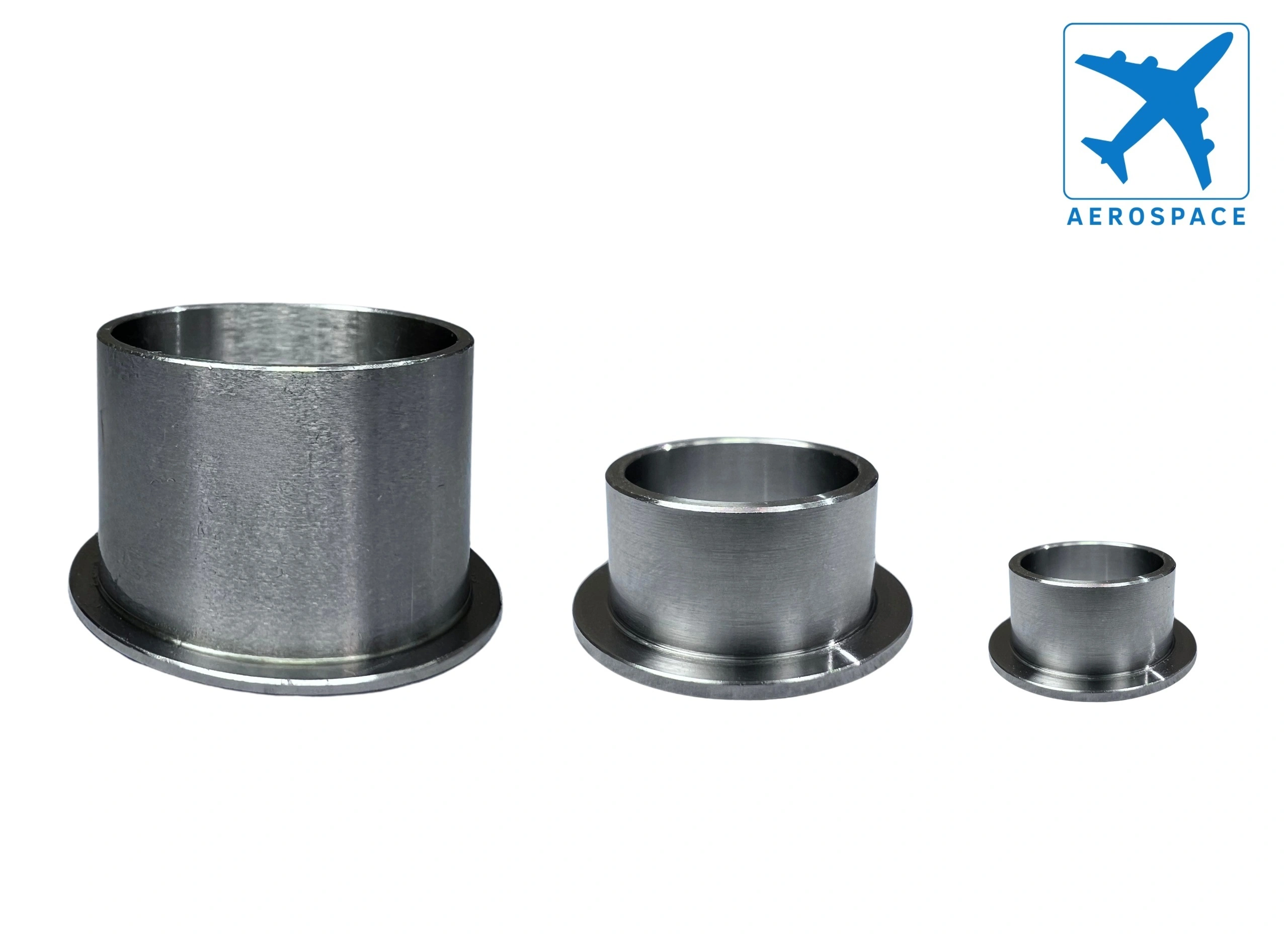

Aviation bush - Aviation socketwith collaraccording to aviation standard NSA5120Size:ø20H7xø22p6/ø26x11.4 mmMaterial:Aviation steelRoHS compliant: yesREACH compliant: yesThe bushings are available in different dimensions and can be found in various places in the different Airbus aircraft programs. We would be happy to advise you on various designs, material and surface specifications. Please do not hesitate to contact us about other standards or special designs. Production location: Germany Design holder: Airbus Group SAS

Aviation bush - Aviation socket with collaraccording to aviation standard NSA5120Size:ø20H7xø22p6/ø26x12.4 mmMaterial:Aviation steelRoHS compliant: yesREACH compliant: yesThe bushings are available in different dimensions and can be found in various places in the different Airbus aircraft programs. We would be happy to advise you on various designs, material and surface specifications. Please do not hesitate to contact us about other standards or special designs. Production location: Germany Design holder: Airbus Group SAS

Aviation bush - Aviation socket with collaraccording to aviation standard NSA5120Size:ø22H7xø24p6/ø28x13.9 mmMaterial:Aviation steelRoHS compliant: yesREACH compliant: yesThe bushings are available in different dimensions and can be found in various places in the different Airbus aircraft programs. We would be happy to advise you on various designs, material and surface specifications. Please do not hesitate to contact us about other standards or special designs. Production location: Germany Design holder: Airbus Group SAS

Aviation bush - Aviation socket with collaraccording to aviation standard NSA5120Size:ø8H7xø10p6/ø14x2.9 mmMaterial:Aviation steelRoHS compliant: yesREACH compliant: yesThe bushings are available in different dimensions and can be found in various places in the different Airbus aircraft programs. We would be happy to advise you on various designs, material and surface specifications.Please do not hesitate to contact us about other standards or special designs. Production location: Germany Design holder: Airbus Group SAS

Aviation bush - Aviation socketwith collaraccording to aviation standard NSA5120Size:ø8H7xø10p6/ø14xø3.4 mmMaterial:Aviation steelRoHS compliant: yesREACH compliant: yesThe bushings are available in different dimensions and can be found in various places in the different Airbus aircraft programs. We would be happy to advise you on various designs, material and surface specifications. Please do not hesitate to contact us about other standards or special designs. Production location: Germany Design holder: Airbus Group SAS

Aviation bush - Aviation socket with collaraccording to aviation standard NSA5120Size:ø8H7xø10p6/ø14x3.9 mmMaterial:Aviation steelRoHS compliant: yesREACH compliant: yesThe bushings are available in different dimensions and can be found in various places in the different Airbus aircraft programs. We would be happy to advise you on various designs, material and surface specifications. Please do not hesitate to contact us about other standards or special designs. Production location: Germany Design holder: Airbus Group SAS

Aviation bush - Aviation socket with collaraccording to aviation standard NSA5120Size:ø8H7xø10p6/ø14x4.4 mmMaterial:Aviation steelRoHS compliant: yesREACH compliant: yesThe bushings are available in different dimensions and can be found in various places in the different Airbus aircraft programs. We would be happy to advise you on various designs, material and surface specifications. Please do not hesitate to contact us about other standards or special designs. Production location: Germany Design holder: Airbus Group SAS

Aviation bush - Aviation socket with collaraccording to aviation standard NSA5120Size:ø8H7xø10p6/ø14x4.9 mmMaterial:Aviation steelRoHS compliant: yesREACH compliant: yesThe bushings are available in different dimensions and can be found in various places in the different Airbus aircraft programs. We would be happy to advise you on various designs, material and surface specifications. Please do not hesitate to contact us about other standards or special designs. Production location: Germany Design holder: Airbus Group SAS

Aviation bush - Aviation socket with collaraccording to aviation standard NSA5120Size:ø8H7xø10p6/ø14x5.4 mmMaterial:aviation steelRoHS compliant: yesREACH compliant: yesThe bushings are available in different dimensions and can be found in various places in the different Airbus aircraft programs. We would be happy to advise you on various designs, material and surface specifications. Please do not hesitate to contact us about other standards or special designs. Production location: Germany Design holder: Airbus Group SAS

Aviation bush - Aviation socket with collaraccording to aviation standard NSA5120Size:ø8H7xø10p6/ø14x5.9 mmMaterial:Aviation steelRoHS compliant: yesREACH compliant: yesThe bushings are available in different dimensions and can be found in various places in the different Airbus aircraft programs. We would be happy to advise you on various designs, material and surface specifications. Please do not hesitate to contact us about other standards or special designs. Production location: Germany Design holder: Airbus Group SAS

Aviation bush - Aviation socket with collaraccording to aviation standard NSA5120Size:ø8H7xø10p6/ø14x6.4 mmMaterial:Aviation steelRoHS compliant: yesREACH compliant: yesThe bushings are available in different dimensions and can be found in various places in the different Airbus aircraft programs. We would be happy to advise you on various designs, material and surface specifications. Please do not hesitate to contact us about other standards or special designs. Production location: Germany Design holder: Airbus Group SAS

Aviation bush - Aviation socket with collaraccording to aviation standard NSA5120Size:ø8H7xø10p6/ø14x6.9 mmMaterial:Aviation steelRoHS compliant: yesREACH compliant: yesThe bushings are available in different dimensions and can be found in various places in the different Airbus aircraft programs. We would be happy to advise you on various designs, material and surface specifications. Please do not hesitate to contact us about other standards or special designs. Production location: Germany Design holder: Airbus Group SAS

Aviation bush - Aviation socket with collaraccording to aviation standard NSA5120Size:ø8H7xø10p6/ø14x7.9 mmMaterial:Aviation steelRoHS compliant: yesREACH compliant: yesThe bushings are available in different dimensions and can be found in various places in the different Airbus aircraft programs. We would be happy to advise you on various designs, material and surface specifications. Please do not hesitate to contact us about other standards or special designs. Production location: Germany Design holder: Airbus Group SAS

Aviation bush - Aviation socket with collaraccording to aviation standard NSA5120Size:ø8H7xø10p6/ø14x8.9 mmMaterial:Aviation steelRoHS compliant: yesREACH compliant: yesThe bushings are available in different dimensions and can be found in various places in the different Airbus aircraft programs. We would be happy to advise you on various designs, material and surface specifications. Please do not hesitate to contact us about other standards or special designs. Production location: Germany Design holder: Airbus Group SAS

Aviation bush - Aviation socket with collaraccording to aviation standard NSA5120Size:ø8H7xø10p6/ø14x9.4 mmMaterial:Aviation steelRoHS compliant: yesREACH compliant: yesThe bushings are available in different dimensions and can be found in various places in the different Airbus aircraft programs. We would be happy to advise you on various designs, material and surface specifications. Please do not hesitate to contact us about other standards or special designs. Production location: Germany Design holder: Airbus Group SAS

Aviation bush - Aviation socket with collaraccording to aviation standard NSA5120Size:ø8H7xø10p6/ø14x10.4 mmMaterial:Aviation steelRoHS compliant: yesREACH compliant: yesThe bushings are available in different dimensions and can be found in various places in the different Airbus aircraft programs. We would be happy to advise you on various designs, material and surface specifications. Please do not hesitate to contact us about other standards or special designs. Production location: Germany Design holder: Airbus Group SAS
