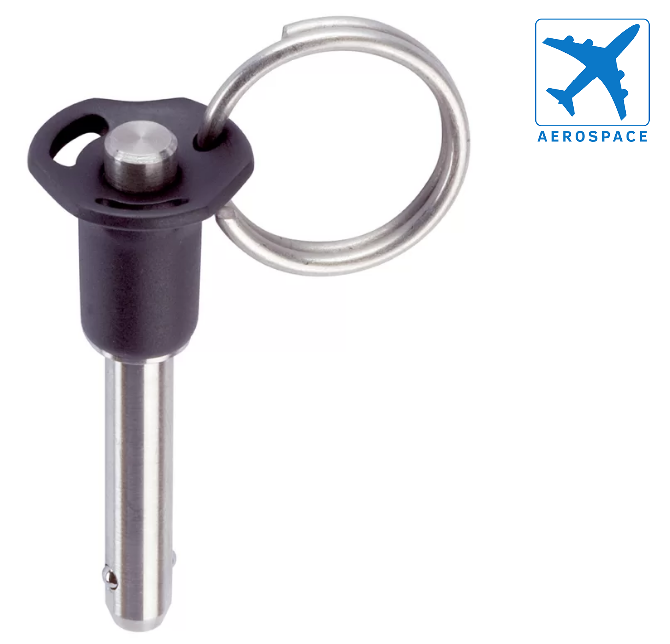

Safety bolt SM 1276-1-Lsingle-actingwith mushroom gripaccording to aviation standard MS17984 / NAS1333-1343Material:Sleeve: stainless steel - CRES 17-4PH (specification AMS5643)precipitation hardened, passivatedPin: Stainless steel - CRES 17-4PH (specification AMS5643)precipitation hardened, passivatedSpring: stainless steel - CRES 302 (specification ASTM-A-313)passivatedKey ring: stainless steel - CRES 302 (specification ASTM A-313/A313M)passivatedPush button: stainless steel - CRES 303 (specification ASTM A484/484M)passivatedBall: stainless steel - CRES 440C (specification AMS5630)precipitation hardened, passivatedHandle:3/16" to 5/16" Aluminum -Alum.Alloy 380 (Specification ASTM B85/B85)black anodized3/8" to 1"Aluminum -Alum.Alloy 6061-T6 (Specification AMS-QQ-A200/8)black anodizedSurface treatment:All stainless steel parts passivated according to AMS2700.All aluminium parts anodized according to MIL-A-8625.Pressing = unlockingSM 1276-1-L ball lock pins are self-locking, single-acting pins.They are used for quick fixing, locking, adjusting, changing and securing.The balls are unlocked without tools using a push button.SM 1276-1-L ball lock pins are - extremely resilient to shear, - corrosion-resistant and therefore optimally protected against wear,- can be released quickly and easily for frequently repeated connections,- manufactured in accordance with aviation standard MS / NAS and tested in accordance with NAS 1332,- also known as locking pins, safety pins, ball lock pins, quick release pins or pip pins.- Manufactured in INCH dimensions.Temperature application range from: -65°F to 200°F.The SM 1276-1-L ball lock pins are used in the aviation sector for ground support (GSE) or maintenance, repair and overhaul (MRO), for example as a so-called gear pin or steering bypass pin for pushback.For similar versions in metric dimensions as standard parts, see SM 1273-71, SM 1273-72 or SM 1273-77.Conformity / regulations:- RoHS compliant according to Directive 2011/65/EU and Directive 2015/863.- Contains no SVHC substances with more than 0.1% w/w (SVHC list as of 21.01.2025).- Contains no Proposition 65 substances. There are no substances with chemical exposure warnings (Proposition 65 warnings).- Free of conflict minerals. This product does not contain any substances designated as "conflict minerals" such as tantalum, tin, gold or tungsten from the Democratic Republic of Congo or neighboring countries.On request:Other diameters and lengths.Double acting variants.Special versions for special applications.Various warning flags as accessories.

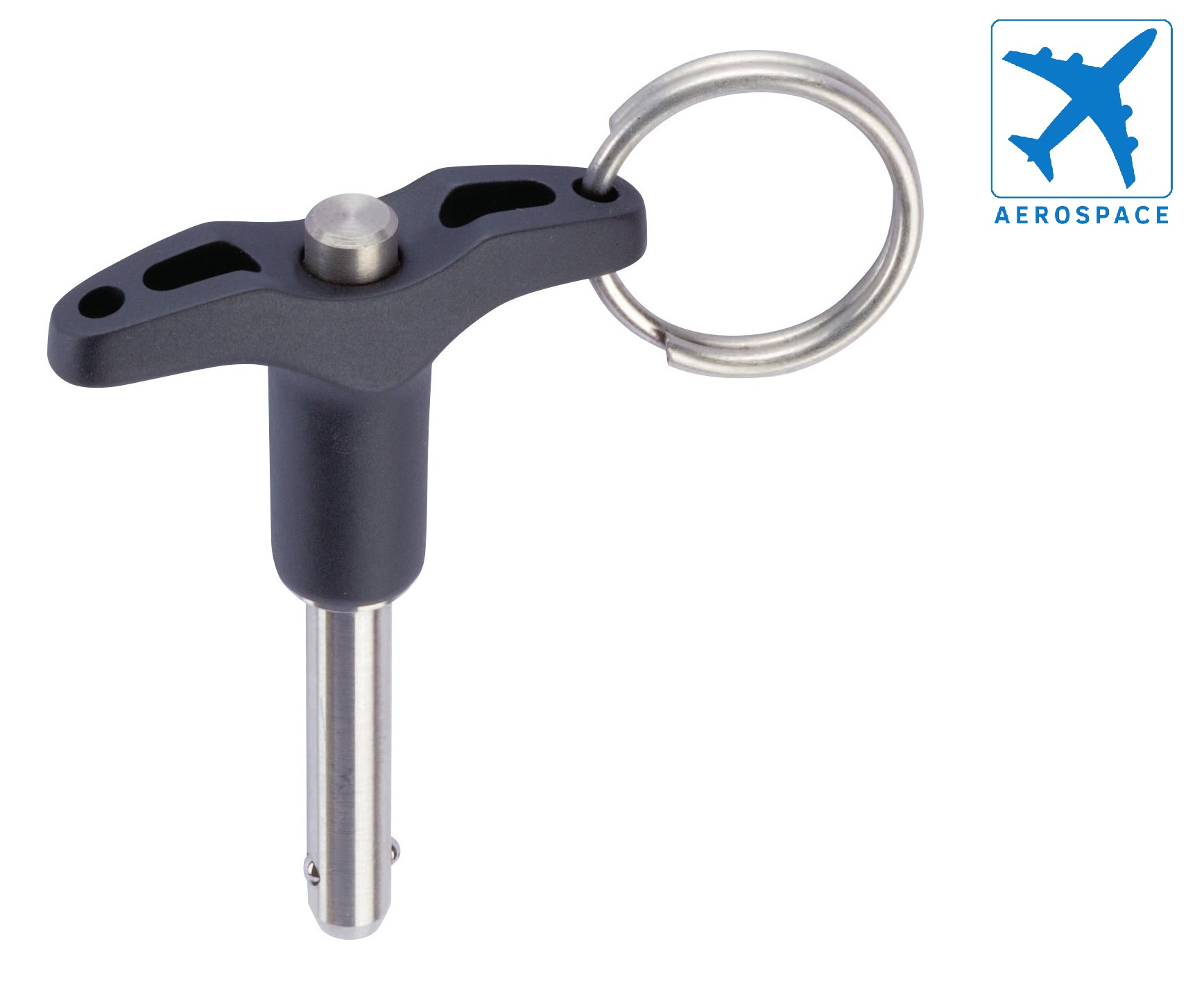

Safety bolt SM 1276-4-Lsingle-acting with T-handle according to aviation standard MS17985 / NAS1333-1343material:Sleeve: stainless steel - CRES 17-4PH (specification AMS5643)precipitation hardened, passivatedPin: Stainless steel - CRES 17-4PH (specification AMS5643)precipitation hardened, passivatedSpring: stainless steel - CRES 302 (specification ASTM-A-313)passivatedKey ring: stainless steel - CRES 302 (specification ASTM A-313/A313M)passivatedPushbutton: Stainless steel - CRES 303 (Specification ASTM A484/484M)PassivatedBalls: Stainless steel - CRES 440C (Specification AMS5630)Precipitation hardened, passivatedHandle:Aluminum - Alum.Alloy 380 (specification ASTM B85/B85)black anodizedSurface treatment:All stainless steel parts passivated according to AMS2700.All aluminium parts anodized according to MIL-A-8625.Pressing = unlockingSM 1276-4-L ball lock pins are self-locking, single-acting pins.They are used for quick fixing, locking, adjusting, changing and securing.The balls are unlocked without tools using a push button. SM 1276-4-L ball lock pins are- extremely resilient to shear,- corrosion-resistant and therefore optimally protected against wear,- quick and easy to release for frequently repeated connections,- manufactured in accordance with aviation standard MS / NAS and tested in accordance with NAS 1332,- also known as locking pins, safety pins, ball lock pins, quick release pins or pip pins,- manufactured in INCH dimensions. Temperature application range from: -65°F to 200°F.The SM 1276-1-L ball lock pins are used in the aviation sector for ground support (GSE) or maintenance, repair and overhaul (MRO),for example as a gear pin or steering bypass pin for pushback.For similar versions in metric dimensions as standard parts, see SM 1273-73 or SM 1273-74.Conformity / regulations:- RoHS compliant according to Directive 2011/65/EU and Directive 2015/863.- Contains no SVHC substances with more than 0.1% w/w (SVHC list as of 21.01.2025).- Contains no Proposition 65 substances.There are no substances with chemical exposure warnings (Proposition 65 warnings).- Free of conflict minerals.This product does not contain any substances designated as "conflict minerals" such as tantalum, tin, gold or tungsten from the Democratic Republic of Congo or neighboring countries.On request:Other diameters and lengths.Double-acting variants.Special versions for special applications.Various warning flags as accessories.

Safety bolt SM 1276-3-Lsingle-acting with mushroom grip according to aviation standard MS17986 / NAS1333-1343Material: Sleeve: stainless steel - CRES 17-4PH (specification AMS5643) precipitation hardened, passivated Pin: Stainless steel - CRES 17-4PH (specification AMS5643) precipitation hardened, passivated Spring: stainless steel - CRES 302 (specification ASTM-A-313) passivated Key ring: stainless steel - CRES 302 (specification ASTM A-313/A313M) passivated Push button: stainless steel - CRES 303 (specification ASTM A484/484M) passivated Balls: stainless steel - CRES 440C (specification AMS5630) precipitation hardened, passivated Handle:Aluminum - Alum.Alloy 380 (Specification ASTM B85/B85) black anodizedSurface treatment: All stainless steel parts passivated according to AMS2700. All aluminum parts anodized according to MIL-A-8625.Pressing = unlocking SM 1276-3-L ball lock pins are self-locking, single-acting pins. They are used for quick fixing, locking, adjusting, changing and securing. The balls are unlocked without tools using a push button. SM 1276-1-L ball lock pins are - extremely resistant to shear, - corrosion-resistant and therefore optimally protected against wear,- can be released quickly and easily for frequently repeated connections, - manufactured in accordance with aviation standard MS / NAS and tested in accordance with NAS 1332,- also known as locking pins, safety pins, ball lock pins, quick release pins or pip pins,- manufactured in INCH dimensions. Temperature application range from: -65°F to 200°FThe SM 1276-1-L ball lock pins are used in the aviation sector for ground support (GSE) or maintenance, repair and overhaul (MRO),for example as a so-called gear pin or steering bypass pin for pushback.For similar versions in metric dimensions as standard parts, see SM 1273-71, SM 1273-72 or SM 1273-77.Conformity / regulations:- RoHS compliant according to Directive 2011/65/EU and Directive 2015/863.- Contains no SVHC substances with more than 0.1% w/w (SVHC list as of 21.01.2025).- Contains no Proposition 65 substances. There are no substances with chemical exposure warnings (Proposition 65 warnings).- Free of conflict minerals.This product does not contain any substances designated as "conflict minerals" such as tantalum, tin, gold or tungsten from the Democratic Republic of Congo or neighboring countries.On request: Other diameters and lengths. Double acting variants. Special versions for special applications. Various warning flags as accessories.

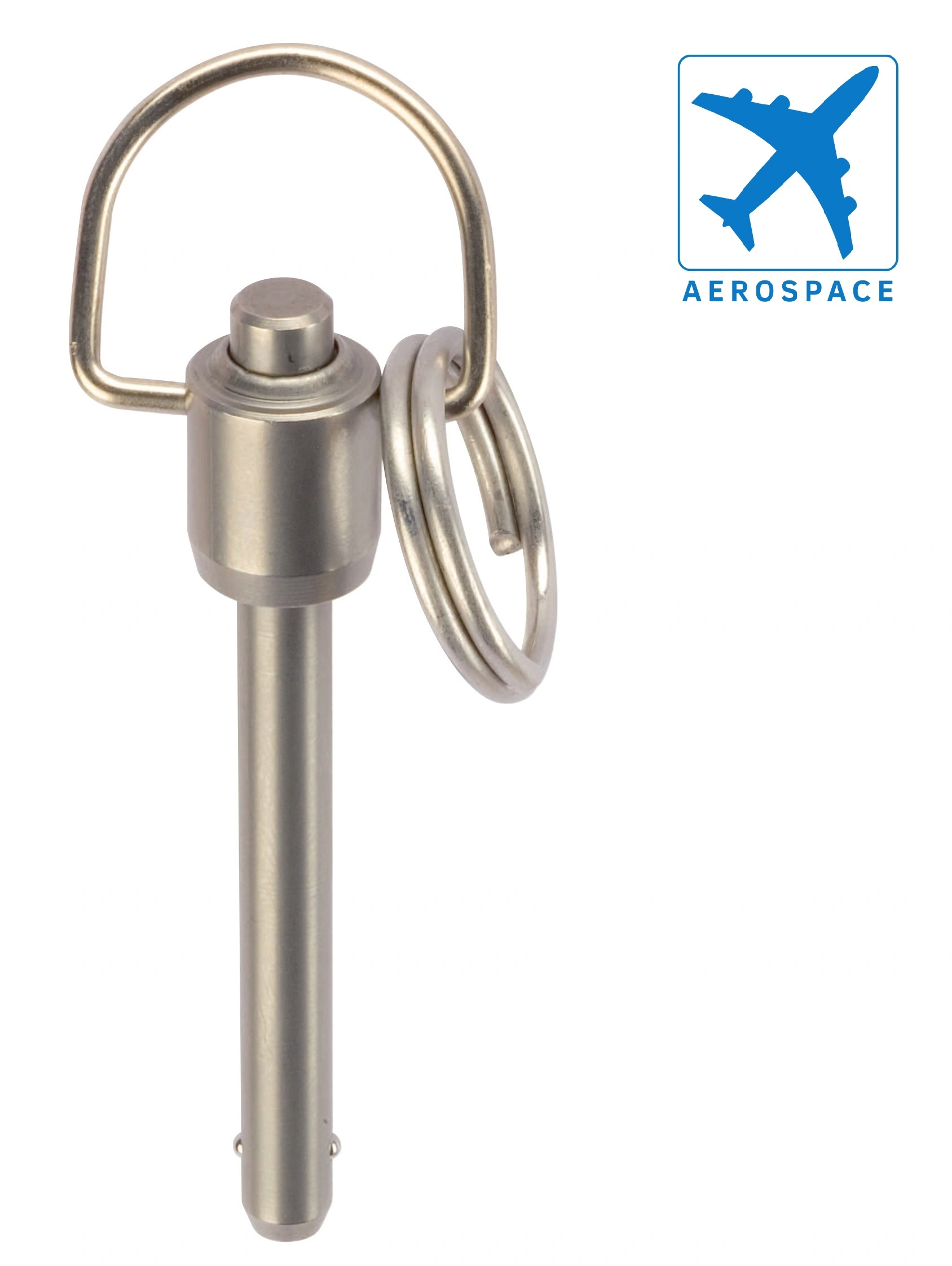

Safety bolt SM 1276-2-Lsingle-actingwith ring handleaccording to aviation standard MS17987 / NAS1333-1343 material:Sleeve:stainless steel - CRES 17-4PH (specification AMS5643)precipitation hardened, passivatedPin: stainless steel - CRES 17-4PH (specification AMS5643) precipitation hardened, passivatedSpring: stainless steel - CRES 302 (specification ASTM-A-313) passivatedKey ring: stainless steel - CRES 302 (specification ASTM A-313/A313M) passivatetPushbutton: stainless steel - CRES 303 (Specification ASTM A484/484M) passivatetBall: stainless steel - CRES 440C (Specification AMS5630) precipitation hardened, passivatedHandle: stainless steel - CRES 17-4PH (specification AMS5643) passivatedSurface treatment:All stainless steel parts passivated according to AMS2700.Pressing = unlockingSM 1276-2-L ball lock pins are self-locking, single-acting pins.They are used for quick fixing, locking, adjusting, changing and securing.The balls are unlocked without tools using a push button.SM 1276-2-L ball lock pins are- extremely resilient to shear,- corrosion-resistant and therefore optimally protected against wear,- can be released quickly and easily for frequently repeated connections,- manufactured in accordance with aviation standard MS / NAS and tested in accordance with NAS 1332,- also known as locking pins, safety pins, ball lock pins, quick release pins or pip pins. - manufactured in INCH dimensions.Temperature application range from: -65°F to 200°F.The SM 1276-2-L ball lock pins are used in the aviation sector for ground support (GSE) or maintenance, repair and overhaul (MRO),for example as a so-called gear pin or steering bypass pin for pushback.For similar versions in metric dimensions as standard parts, see SM 1273-71, SM 1273-72 or SM 1273-77.Conformity / regulations:- RoHS compliant according to Directive 2011/65/EU and Directive 2015/863.- Contains no SVHC substances with more than 0.1% w/w (SVHC list as of 21.01.2025)- Contains no Proposition 65 substances. There are no substances with chemical exposure warnings (Proposition 65 warnings).- Free of conflict minerals. This product does not contain any substances designated as "conflict minerals" such as tantalum, tin, gold or tungsten from the Democratic Republic of Congo or neighboring countries.On request:Various warning flags as accessories.
