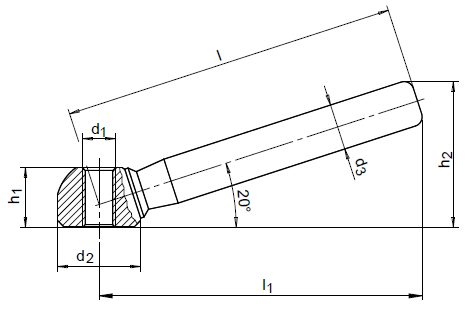

Clamp nut | SM 1193

SCHOLZ MECHANIK GmbH

Variants table
Diameter 1	Length	Material	Product number	Unit price	Buy

Product information "Clamp nut | SM 1193 "

sim. to DIN 99
made from Metall

Material:
ST: steel
zinc-plated, blue passivated
NI: stainless steel 1.4301
matt, shot-blasted
shaft butt-welded to nut

Clamp nuts SM 1193 are a low cost alternativ for clamps DIN 99.

RoHS-compliant: yes

Compliance:	RoHS compliant
Material:	Lever: Stainless steel, Lever: Steel, Stainless steel, Steel
Speciality:	Lever angled , With internal thread
Surface:	Stainless steel - matt blasted, Steel - zinc plated
Type of use:	Clamping lever / Tension lever, Lever, Nuts
