Flat tensioning lever | SM 1194
from €24.00*
€24.00*
Available in 5 days
Delivery time: 1-3 days working days
adjustable
with threaded stud
Material:
safety circlip: Plastic, polyacetal (POM)
Knob: ball knob SM 1265 - DIN 319
plastic, phenolic resin (PF)
black, shiny finish
Cover: plastic, polyvinyl chloride (PVC-U)
light gray
Lever and screw:
ST: steel, blackened,
insert / screw grade 5.8
NI: stainless steel AISI 303 / 1.4305
hub / shaft: matte shot-blasted

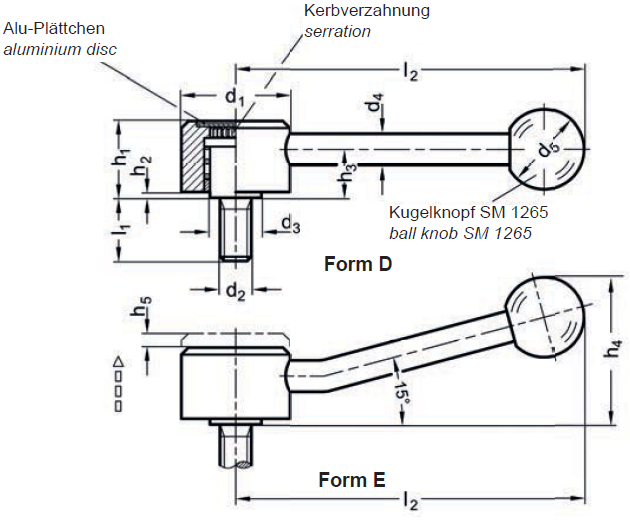

Form D: straight lever
Form E: angled lever, 15°
These flat clamping levers are particularly low and are mainly used where the clamping range is limited or a certain clamping position is required,
where the clamping range is limited or a specific clamping position is required.
The threaded insert is detachably connected to the handle by a serration.
Lever adjustment by pulling.
Lifting the lever hub releases the serration and the clamping lever can be pivoted to the most favorable clamping position.
Automatically engages when the handle is released.
RoHS-compliant: yes
| Compliance: | RoHS compliant |
|---|---|
| Material: | Bushing/Screw: Stainless Steel, Bushing/Screw: Steel, Knob / Handle: Plastic, Lever: Stainless steel, Lever: Steel, Thermoset |
| Speciality: | Lever angled , Lever straight, Locking by self-locking, With threaded stud |
| Surface: | Plastic - glossy, Stainless steel - matt blasted, Steel - burnished |
| Type of use: | Clamping lever / Tension lever, Lever |
