Tension lever | SM 1175

Variants table
Diameter 1	Diameter 2	Form	Product number	Unit price	Buy

Product information "Tension lever | SM 1175"

rigid
with angled lever

Material: stainless steel,
surface matt, shot-blasted
ball knob: DIN 319, plastic, black

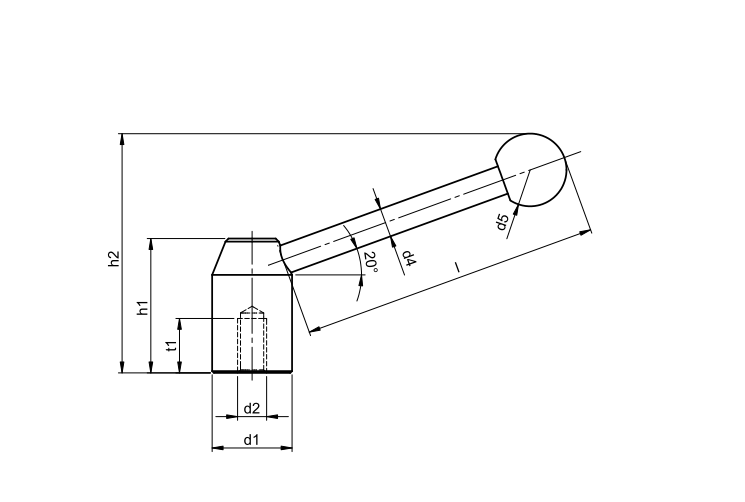

Form E: angled lever with threaded bore

Tension levers are used as clamping element as well as operating levers.

RoHS-compliant: yes

Compliance:	RoHS compliant
Material:	Knob / Handle: Plastic, Lever: Stainless steel, Stainless steel
Speciality:	Lever angled , With internal thread
Surface:	matte
Type of use:	Clamping lever / Tension lever, Lever
