Clamping lever | SM 1087-4
from €8.77*
€9.09*
Available in 5 days
with eccentrical cam
with threaded stud
Material:
steel components: zinc plated, blue passivated
contact plate: Technopolymer, glass fibre reinforced
lever: zinc die casting
plastic coated, abrasion proof, epoxyresin

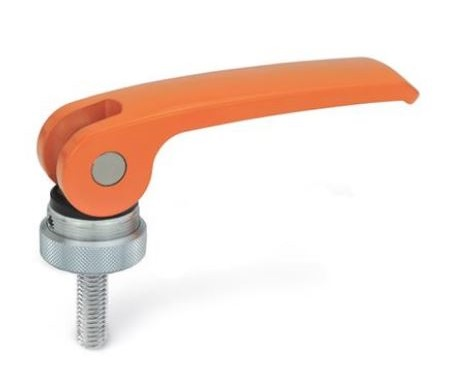

OR = orange

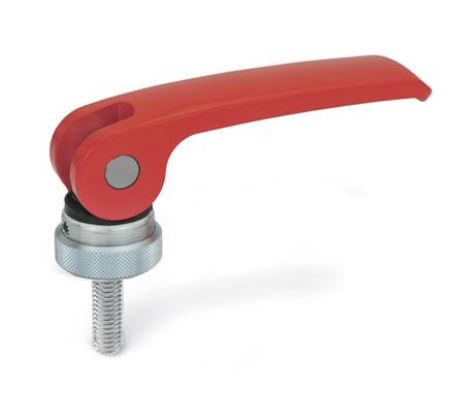

RS = red

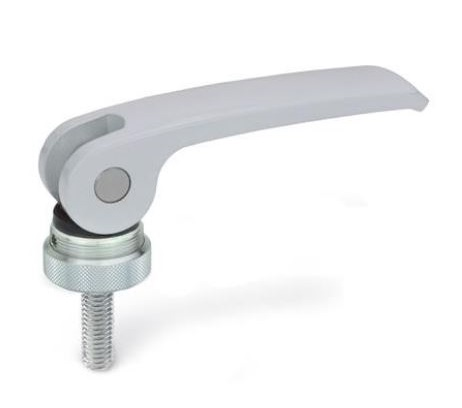

SB = silver

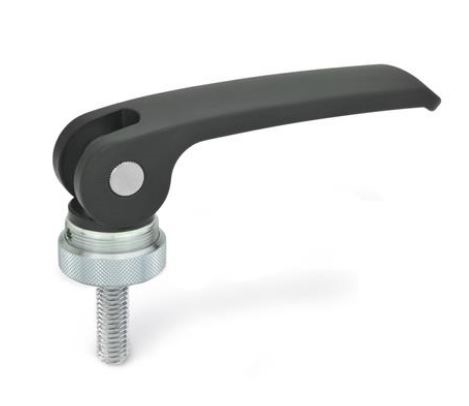

SW = black
Form A: contact plate: POM (Polyactetal)

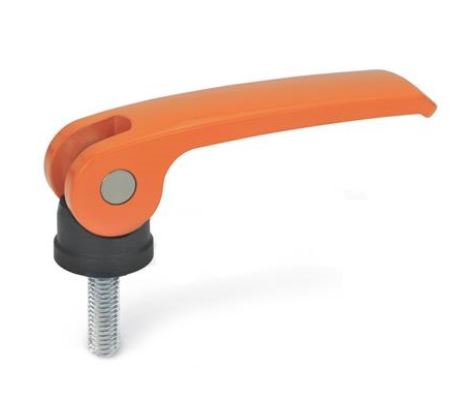

Form B: contact plate: PA (Polyamid PA)
lever: steel
zinc plated, blue passivated

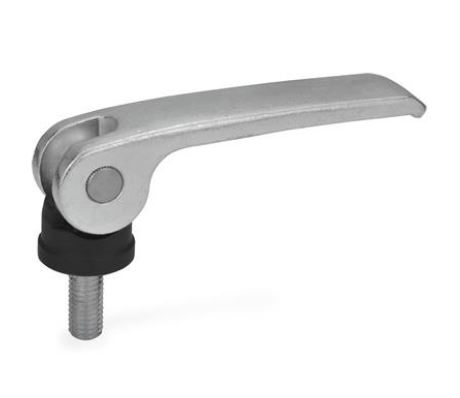

BL = blank (zinc plated)

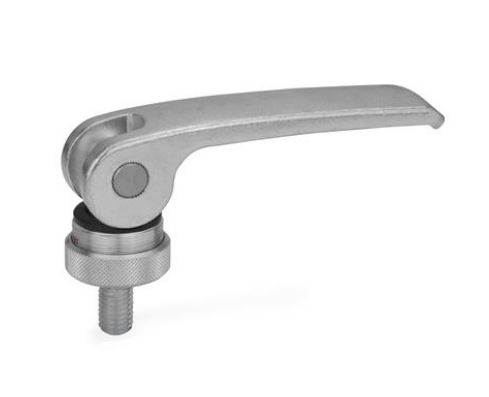

Form C: contact plate: POM (Polyactetal)
Form D: contact plate: PA (Polyamid PA)
Information:
Form A: adjustable contact plate with adjusting nut
Form B: fix contct plate without adjusting nut
Form C: adjustable contact plate with adjusting nut
Form D: fix contct plate without adjusting nut
For fast clamping and releasing, torque-free via a thread.
Clamping movement of the lever beyond the max. clamping force not possible.
No loose individual parts, all elements are connected to each other in the correct position.
The eccentric clamps with adjustable support disc form A+C offer adjustment of the distance between the lifting eccentric and the clamping surface via a fine thread, thus enabling simple adjustment of the clamping position with the maximum clamping force.
RoHS-compliant: yes
| Colour: | black, orange, red, silver |
|---|---|
| Element type: | Clamping Levers with Eccentrical Cam |
| Material: | Bushing/Screw: Steel, Lever: Zinc die casting, Steel |
| Surface: | Steel - zinc plated, plastic coated |
| Type: | Levers and tensioners |
